STMicroelectronics, 8bit STM8, STM8L Microcontroller, 16MHz, 8 kB Flash, 20-Pin TSSOP

RS庫存編號:: 168-7233
製造零件編號:: STM8L051F3P6
製造商:: STMicroelectronics

STMicroelectronics, 8bit STM8, STM8L Microcontroller, 16MHz, 8 kB Flash, 20-Pin TSSOP

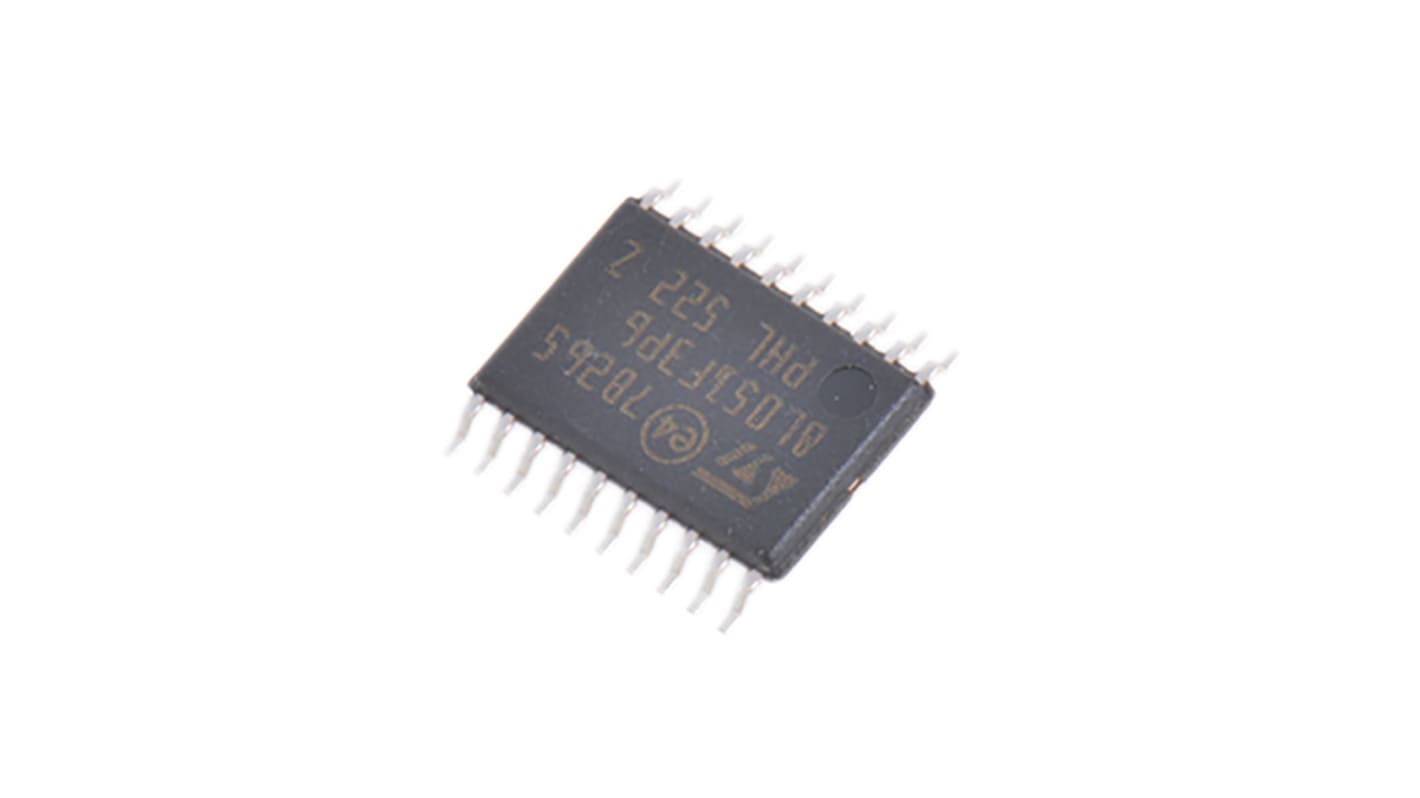

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

小計（1 管，共 74 件）*

HK$612.128

訂單超過 HK$250.00 免費送貨

有庫存

740 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每管*
74 - 74	HK$8.272	HK$612.13
148 - 222	HK$8.108	HK$599.99
296 +	HK$7.945	HK$587.93

* 參考價格

RS庫存編號:: 168-7233
製造零件編號:: STM8L051F3P6
製造商:: STMicroelectronics

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	STMicroelectronics
	Family Name	STM8L
	Package Type	TSSOP
	Mounting Type	Surface Mount
	Pin Count	20
	Device Core	STM8
	Data Bus Width	8bit
	Program Memory Size	8 kB
	Maximum Frequency	16MHz
	RAM Size	1 kB
	USB Channels	0
	Number of PWM Units	1 x 16 bit
	Number of SPI Channels	1
	Number of I2C Channels	1
	Number of USART Channels	1
	Number of CAN Channels	0
	Number of UART Channels	0
	Typical Operating Supply Voltage	3.6 V
	Pulse Width Modulation	1 (2 x 16 bit)
	Width	4.5mm
	Number of PCI Channels	0
	Number of Ethernet Channels	0
	Number of LIN Channels	0
	Height	1.05mm
	Program Memory Type	Flash
	Maximum Number of Ethernet Channels	0
	Instruction Set Architecture	CISC
	Minimum Operating Temperature	-40 °C
	Number of ADC Units	1
	Dimensions	6.6 x 4.5 x 1.05mm
	ADCs	10 x 12 bit
	Length	6.6mm
	Maximum Operating Temperature	+85 °C

	選取全部
	品牌 STMicroelectronics
	Family Name STM8L
	Package Type TSSOP
	Mounting Type Surface Mount
	Pin Count 20
	Device Core STM8
	Data Bus Width 8bit
	Program Memory Size 8 kB
	Maximum Frequency 16MHz
	RAM Size 1 kB
	USB Channels 0
	Number of PWM Units 1 x 16 bit
	Number of SPI Channels 1
	Number of I2C Channels 1
	Number of USART Channels 1
	Number of CAN Channels 0
	Number of UART Channels 0
	Typical Operating Supply Voltage 3.6 V
	Pulse Width Modulation 1 (2 x 16 bit)
	Width 4.5mm
	Number of PCI Channels 0
	Number of Ethernet Channels 0
	Number of LIN Channels 0
	Height 1.05mm
	Program Memory Type Flash
	Maximum Number of Ethernet Channels 0
	Instruction Set Architecture CISC
	Minimum Operating Temperature -40 °C
	Number of ADC Units 1
	Dimensions 6.6 x 4.5 x 1.05mm
	ADCs 10 x 12 bit
	Length 6.6mm
	Maximum Operating Temperature +85 °C

COO (Country of Origin):: PH

STM8L Series Ultra-Low Power 8-Bit Microcontrollers, STMicroelectronics

The STM8L is based on the 8-bit STM8 core

Ultra-low power consumption with the lowest power mode of 0.35μA

STM8L101: Lowest power mode 0.35μA, Dynamic run mode 150μA/MHz

STM8L151/152: Lowest power mode 0.4μA, Dynamic run mode 192μA/MHz

STM8 8-Bit Microcontrollers, STMicroelectronics

The STM8 platform is implemented around a high-performance 8-bit core and a state-of-the-art set of peripherals. The 8-bit microcontroller operates at 16/24MHz, featuring flash memory up to 128kB, internal RAM and EEPROM, 8/16-bit timers, A/D Converters, D/A Converters, Comparators, Serial Interfaces and an optional Display controller.
