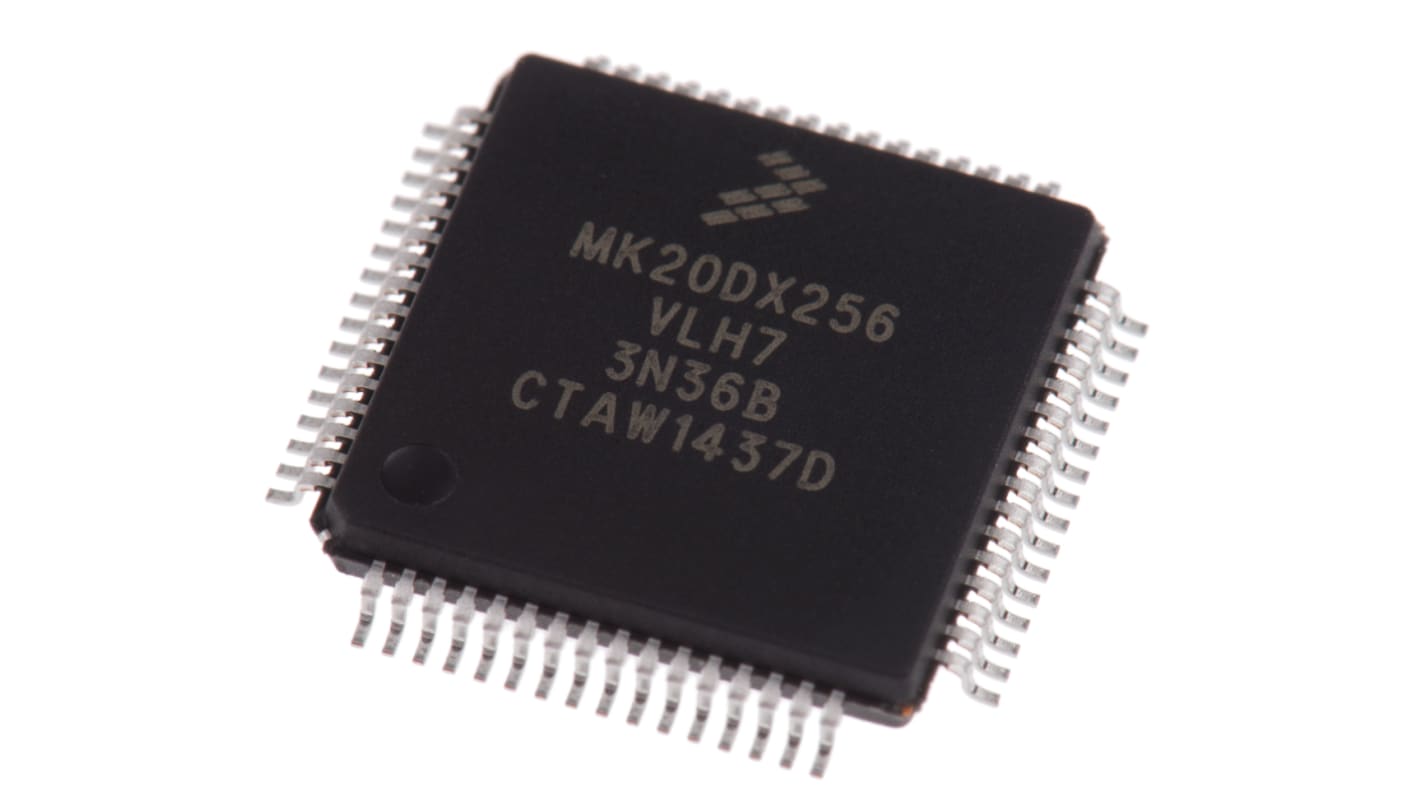

NXP ARM Cortex M4, Kinetis K2x Microcontroller, 72MHz, 288 kB Flash, 64-Pin LQFP

此圖片僅供參考，請參閲產品詳細資訊及規格

查看所有Microcontrollers
可享批量折扣

小計（1 托盤，共 160 件）*

HK$13,400.00

Add to Basket
選擇或輸入數量
有庫存
  • 2,080 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
每托盤*
160 - 640HK$83.75HK$13,400.00
800 +HK$82.075HK$13,132.00

* 參考價格

RS庫存編號:
169-7157
製造零件編號:
MK20DX256VLH7
製造商:
NXP
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

NXP

Family Name

Kinetis K2x

Package Type

LQFP

Mounting Type

Surface Mount

Pin Count

64

Device Core

ARM Cortex M4

Program Memory Size

288 kB

Maximum Frequency

72MHz

RAM Size

66 kB

USB Channels

1

Number of PWM Units

1

Number of SPI Channels

1

Number of UART Channels

3

Number of CAN Channels

1

Typical Operating Supply Voltage

1.71 → 3.6 V

Number of USART Channels

0

Number of I2C Channels

2

Instruction Set Architecture

DSP

Maximum Number of Ethernet Channels

0

ADCs

2 x 16-bit

Length

10mm

Number of ADC Units

2

Maximum Operating Temperature

+105 °C

Pulse Width Modulation

1 (8 Channel)

Dimensions

10 x 10 x 1.6mm

Width

10mm

Height

1.6mm

Number of LIN Channels

0

Number of Ethernet Channels

0

Number of PCI Channels

0

Program Memory Type

Flash

Minimum Operating Temperature

-40 °C

Kinetis K2x Series Microcontrollers


The Kinetis K2x MCU family is pin-peripheral and software-compatible with many of the Kinetis K series MCU families, offering full and high-speed USB 2.0 On-The-Go (OTG), in addition to other features like device charge detect capability and USB crystal-less functionality. These devices offer various levels of integration, with a rich suite of analogue, communication, timing and control peripherals. Kinetis K2x Microcontrollers are further optimized for performance with industry-leading power consumption and offer more streamlined integration for further BOM cost reductions. Devices start from 32 KB of flash in 5 x 5 mm 32-pin QFN packages extending up to 1 MB in a 144-pin MAPBGA package.

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.



The Kinetis range of ARM Cortex core microcontrollers consists of multiple hardware- and software-compatible Cortex-M0+ and Cortex-M4 MCU families with exceptional low-power performance, memory scalability and feature integration. Families range from the entry-level Cortex-M0+ Kinetis L Series to the high-performance, feature-rich Cortex-M4 Kinetis K and include a wide selection of analogue, communication, HMI, connectivity and security features.
