產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	STMicroelectronics
	Product Type	Microcontroller
	Series	STM32L452RC
	Package Type	LQFP
	Mount Type	Surface
	Pin Count	64
	Device Core	ARM Cortex M4
	Data Bus Width	32bit
	Program Memory Size	512kB
	Maximum Clock Frequency	80MHz
	RAM Size	160kB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Number of Programmable I/Os	83
	DACs	1 x 12 Bit
	Maximum Power Dissipation Pd	345mW
	Height	1.45mm
	Standards/Approvals	No
	Analogue Comparators	2
	Width	10 mm
	Length	10mm
	Minimum Supply Voltage	1.71V
	Number of Timers	5
	Automotive Standard	No
	ADCs	16 x 12 Bit
	Program Memory Type	FLASH
	Instruction Set Architecture	RISC, DSP

	選取全部
	品牌 STMicroelectronics
	Product Type Microcontroller
	Series STM32L452RC
	Package Type LQFP
	Mount Type Surface
	Pin Count 64
	Device Core ARM Cortex M4
	Data Bus Width 32bit
	Program Memory Size 512kB
	Maximum Clock Frequency 80MHz
	RAM Size 160kB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Number of Programmable I/Os 83
	DACs 1 x 12 Bit
	Maximum Power Dissipation Pd 345mW
	Height 1.45mm
	Standards/Approvals No
	Analogue Comparators 2
	Width 10 mm
	Length 10mm
	Minimum Supply Voltage 1.71V
	Number of Timers 5
	Automotive Standard No
	ADCs 16 x 12 Bit
	Program Memory Type FLASH
	Instruction Set Architecture RISC, DSP

Datasheet

COO (Country of Origin):: CN

The STM32L433xx devices are the ultra-low-power microcontrollers based on the high-performance ARM® Cortex®-M4 32-bit RISC core operating at a frequency of up to 80 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

The STM32L433xx devices embed high-speed memories, a Quad SPI flash memories interface and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

The devices offer a fast 12-bit ADC (5 Msps), two comparators, one operational amplifier, two DAC channels, an internal voltage reference buffer, a low-power RTC, one general-purpose 32-bit timer, one 16-bit PWM timer dedicated to motor control, four general-purpose 16-bit timers, and two 16-bit low-power timers.

單位	每單位	每托盤*
160 - 640	HK$46.282	HK$7,405.12
800 +	HK$45.356	HK$7,256.96

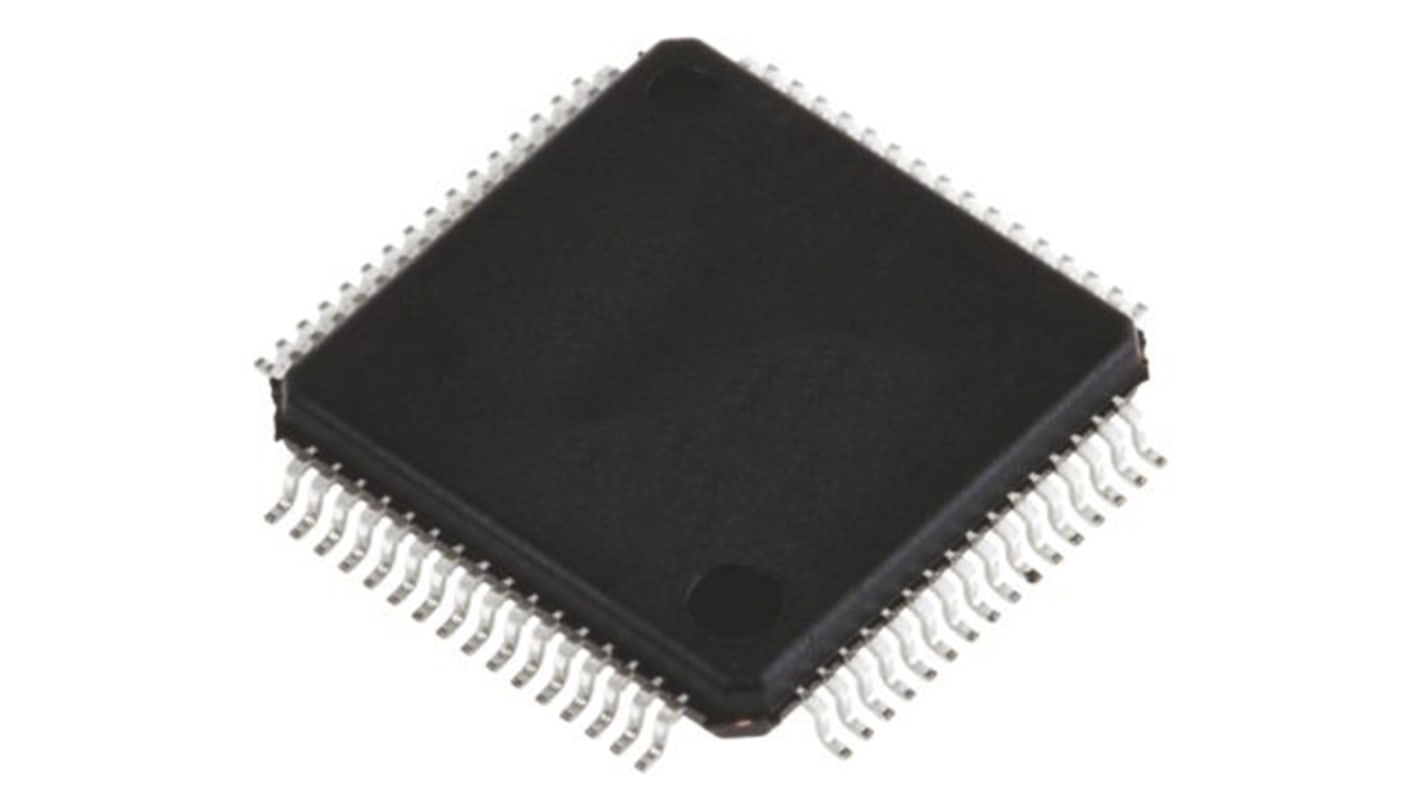

STMicroelectronics, 32 bit ARM Cortex M4, STM32L452RC Microcontroller, 80 MHz, 512kB FLASH, 64-Pin LQFP
