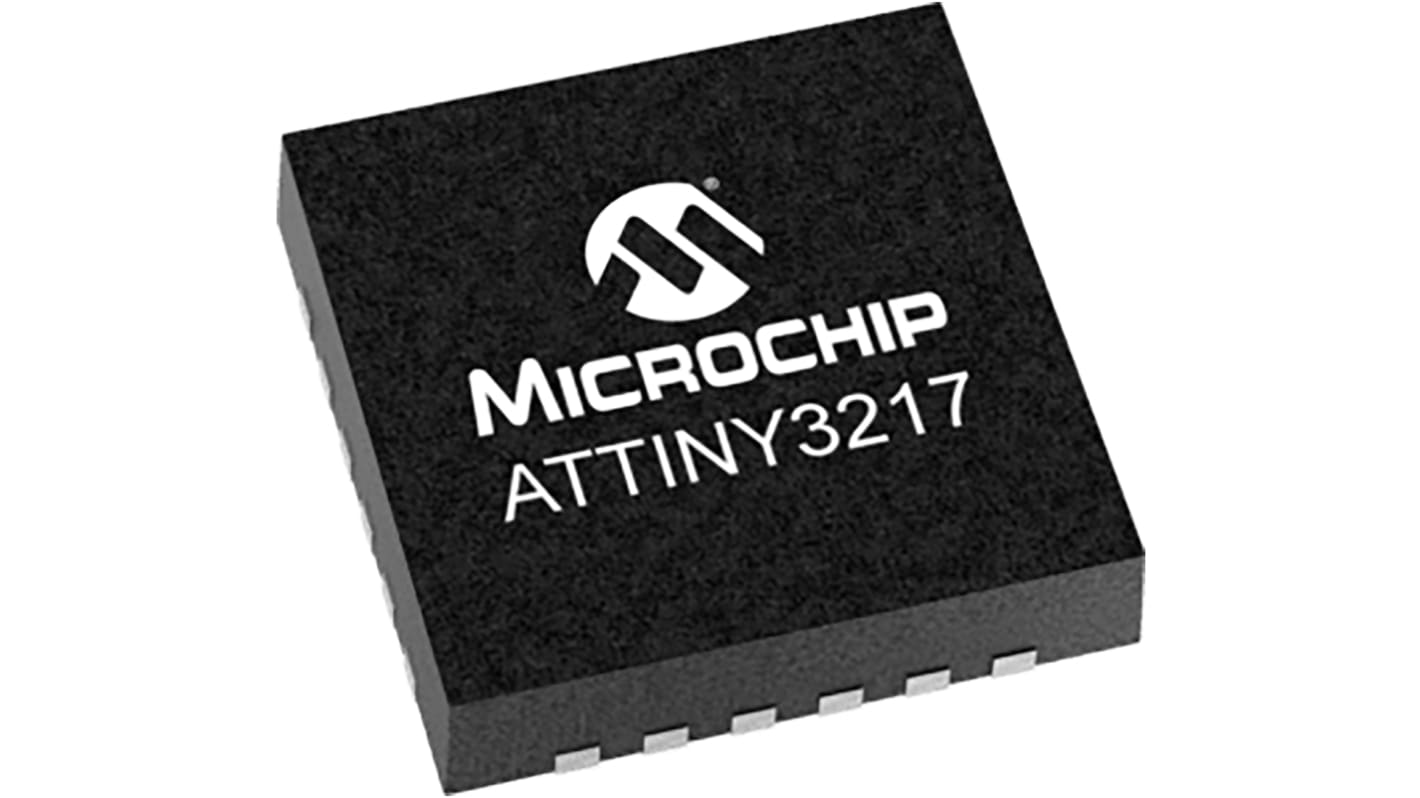

Microchip, 8bit AVR, ATtiny3217 Microcontroller, 20MHz, 32 kB Flash, 24-Pin VQFN

RS庫存編號:: 176-5479
製造零件編號:: ATTINY3217-MNR
製造商:: Microchip

Microchip, 8bit AVR, ATtiny3217 Microcontroller, 20MHz, 32 kB Flash, 24-Pin VQFN

可享批量折扣

小計（1 卷，共 6000 件）*

HK$55,926.00

訂單超過 HK$250.00 免費送貨

暫時缺貨

從 2026年1月15日發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每卷*
6000 - 24000	HK$9.321	HK$55,926.00
30000 +	HK$9.135	HK$54,810.00

* 參考價格

RS庫存編號:: 176-5479
製造零件編號:: ATTINY3217-MNR
製造商:: Microchip

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Family Name	ATtiny3217
	Package Type	VQFN
	Mounting Type	Surface Mount
	Pin Count	24
	Device Core	AVR
	Data Bus Width	8bit
	Program Memory Size	32 kB
	Maximum Frequency	20MHz
	RAM Size	2 kB
	USB Channels	0
	Number of PWM Units	1 x 16 bit
	Number of SPI Channels	1
	Number of I2C Channels	1
	Typical Operating Supply Voltage	1.8 → 5.5 V
	Number of USART Channels	1
	Number of UART Channels	1
	Number of CAN Channels	0
	ADCs	12 x 10 bit
	Program Memory Type	Flash
	Length	4mm
	Number of ADC Units	2
	Minimum Operating Temperature	-40 °C
	Width	4mm
	Instruction Set Architecture	RISC
	Pulse Width Modulation	1 (6 x 16 bit)
	Maximum Number of Ethernet Channels	0
	Maximum Operating Temperature	+125 °C
	Dimensions	4 x 4 x 0.85mm
	Number of Ethernet Channels	0
	Number of PCI Channels	0
	Height	0.85mm
	Number of LIN Channels	0

	選取全部
	品牌 Microchip
	Family Name ATtiny3217
	Package Type VQFN
	Mounting Type Surface Mount
	Pin Count 24
	Device Core AVR
	Data Bus Width 8bit
	Program Memory Size 32 kB
	Maximum Frequency 20MHz
	RAM Size 2 kB
	USB Channels 0
	Number of PWM Units 1 x 16 bit
	Number of SPI Channels 1
	Number of I2C Channels 1
	Typical Operating Supply Voltage 1.8 → 5.5 V
	Number of USART Channels 1
	Number of UART Channels 1
	Number of CAN Channels 0
	ADCs 12 x 10 bit
	Program Memory Type Flash
	Length 4mm
	Number of ADC Units 2
	Minimum Operating Temperature -40 °C
	Width 4mm
	Instruction Set Architecture RISC
	Pulse Width Modulation 1 (6 x 16 bit)
	Maximum Number of Ethernet Channels 0
	Maximum Operating Temperature +125 °C
	Dimensions 4 x 4 x 0.85mm
	Number of Ethernet Channels 0
	Number of PCI Channels 0
	Height 0.85mm
	Number of LIN Channels 0

Datasheet

The ATtiny3217 of microcontroller featuring the 8-bit AVR® processor with hardware multiplier - running at up to 20MHz and with up to 32 KB Flash, 2 KB SRAM and 256 bytes of EEPROM in a 24-pin package. The series uses the latest Core Independent Peripherals with low power features. Including Event System, intelligent analog and advanced peripherals. Capacitive touch interfaces with proximity sensing and driven shield are supported by the integrated QTouch® Peripheral Touch Controller (PTC).

8-bit high-performance AVR RISC CPU

Hardware multiplier

Three sleep modes: Idle, Standby, Power Down

Single pin programming and debugging interface (UPDI)

12 Channel 10-bit ADC with Voltage Reference

8-bit Digital to Analog Converter (DAC)

Analog Comparators (AC)

Timing/Waveform/Measurement Control

Configurable Custom Logic (CCL)

1x 12-bit Timers (TCD)

2x 16-bit Timer (TCA / TCB)

Cyclical Redundancy Check (CRC/SCAN)
