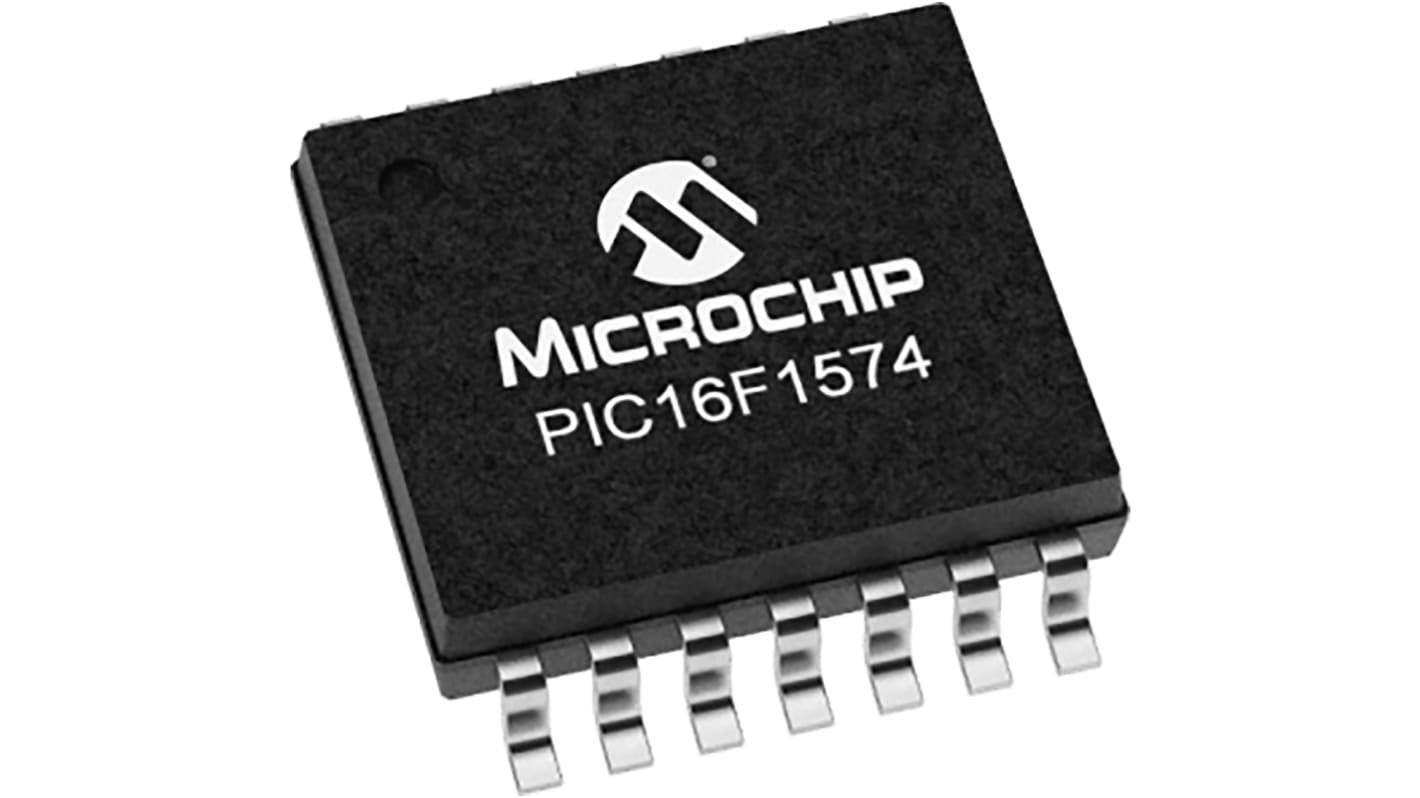

Microchip, 8bit PIC, PIC16F Microcontroller, 32MHz, 7 kB Flash, 14-Pin SOIC

查看所有Microcontrollers
可享批量折扣

小計（1 管，共 57 件）*

HK$477.774

Add to Basket
選擇或輸入數量
暫時缺貨
  • 從 2026年1月14日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
每管*
57 - 57HK$8.382HK$477.77
114 - 513HK$8.216HK$468.31
570 +HK$8.051HK$458.91

* 參考價格

RS庫存編號:
177-2047
製造零件編號:
PIC16F1574-I/SL
製造商:
Microchip
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Microchip

Family Name

PIC16F

Package Type

SOIC

Mounting Type

Surface Mount

Pin Count

14

Device Core

PIC

Data Bus Width

8bit

Program Memory Size

7 kB

Maximum Frequency

32MHz

RAM Size

512 B

USB Channels

0

Number of PWM Units

1 x 16 bit

Number of SPI Channels

0

Number of CAN Channels

0

Number of UART Channels

1

Number of I2C Channels

0

Number of USART Channels

1

Typical Operating Supply Voltage

5.5 (Maximum) V

Maximum Operating Temperature

+85 °C

Program Memory Type

Flash

Minimum Operating Temperature

-40 °C

Instruction Set Architecture

RISC

Maximum Number of Ethernet Channels

0

ADCs

8 x 10 bit

Length

8.65mm

Number of ADC Units

1

Number of Ethernet Channels

0

Number of PCI Channels

0

Pulse Width Modulation

1 (4 x 16 bit)

Dimensions

8.65 x 3.9 x 1.5mm

Width

3.9mm

Height

1.5mm

Number of LIN Channels

0

COO (Country of Origin):
TH
PIC16(L)F157X microcontrollers combine the capabilities of 16-bit PWMs with Analog to suit a variety of applications. These devices deliver four 16-bit PWMs with independent timers, for applications where high resolution is needed, such as LED lighting, stepper motors, power supplies and other general-purpose applications. The core independent peripherals (16-bit PWMs, Complementary Waveform Generator) and Analog (ADCs, Comparator and DAC) can be configured for closed loop feedback control or other application needs.

Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels
Flash Program Memory with self read/write capability
High Endurance Flash memory in lower byte of last 128 addresses of Program Memory (100,000 Writes min.)
Internal clock speeds from 31kHz to 32MHz
4x Standalone 16-bit PWMs
Complementary Waveform Generator (CWG)
8 Channel 10-bit ADC with Voltage Reference
5-bit Digital to Analog Converter (DAC)
2x Comparator
2x 8-bit Timers (TMR0/TMR2)
1x 16-bit Timer (TMR1)

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
