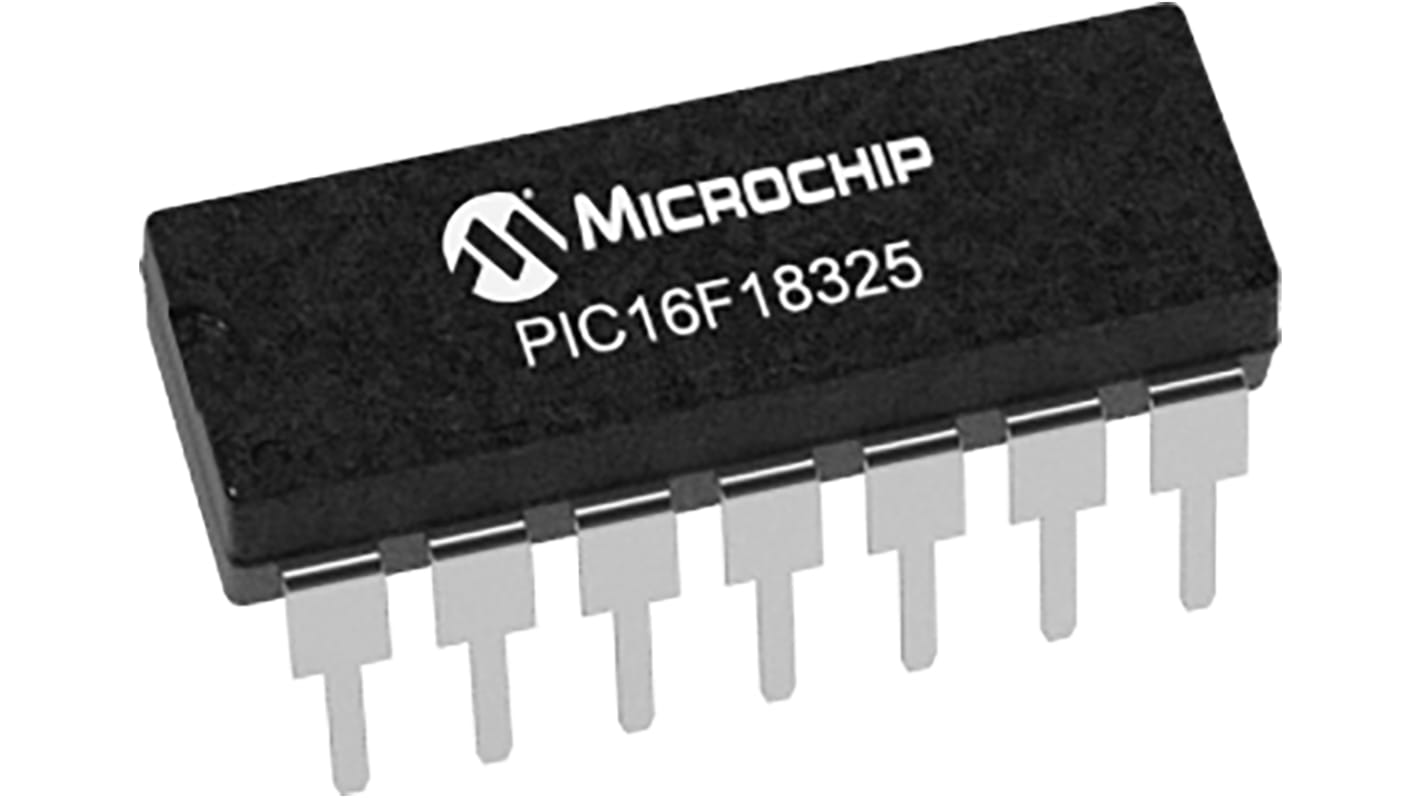

Microchip, 8bit PIC, PIC16F Microcontroller, 32MHz, 14 kB Flash, 14-Pin PDIP

RS庫存編號:: 177-2094
製造零件編號:: PIC16F18325-I/P
製造商:: Microchip

Microchip, 8bit PIC, PIC16F Microcontroller, 32MHz, 14 kB Flash, 14-Pin PDIP

可享批量折扣

小計（1 管，共 30 件）*

HK$349.59

訂單超過 HK$250.00 免費送貨

有庫存

30 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每管*
30 - 30	HK$11.653	HK$349.59
60 - 270	HK$11.42	HK$342.60
300 +	HK$11.193	HK$335.79

* 參考價格

RS庫存編號:: 177-2094
製造零件編號:: PIC16F18325-I/P
製造商:: Microchip

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Family Name	PIC16F
	Package Type	PDIP
	Mounting Type	Through Hole
	Pin Count	14
	Device Core	PIC
	Data Bus Width	8bit
	Program Memory Size	14 kB
	Maximum Frequency	32MHz
	RAM Size	1 kB
	USB Channels	0
	Number of PWM Units	1 x 10 bit
	Number of SPI Channels	2
	Number of USART Channels	1
	Typical Operating Supply Voltage	5.5 (Maximum) V
	Number of CAN Channels	0
	Number of UART Channels	1
	Number of I2C Channels	2
	Program Memory Type	Flash
	Number of LIN Channels	1
	Dimensions	0.77 x 0.28 x 0.19in
	Minimum Operating Temperature	-40 °C
	Pulse Width Modulation	1 (2 x 10 bit)
	Number of ADC Units	1
	Number of PCI Channels	0
	Maximum Operating Temperature	+85 °C
	Instruction Set Architecture	RISC
	Length	19.56mm
	Maximum Number of Ethernet Channels	0
	Width	7.11mm
	Height	4.83mm
	Number of Ethernet Channels	0
	ADCs	11 x 10 bit

	選取全部
	品牌 Microchip
	Family Name PIC16F
	Package Type PDIP
	Mounting Type Through Hole
	Pin Count 14
	Device Core PIC
	Data Bus Width 8bit
	Program Memory Size 14 kB
	Maximum Frequency 32MHz
	RAM Size 1 kB
	USB Channels 0
	Number of PWM Units 1 x 10 bit
	Number of SPI Channels 2
	Number of USART Channels 1
	Typical Operating Supply Voltage 5.5 (Maximum) V
	Number of CAN Channels 0
	Number of UART Channels 1
	Number of I2C Channels 2
	Program Memory Type Flash
	Number of LIN Channels 1
	Dimensions 0.77 x 0.28 x 0.19in
	Minimum Operating Temperature -40 °C
	Pulse Width Modulation 1 (2 x 10 bit)
	Number of ADC Units 1
	Number of PCI Channels 0
	Maximum Operating Temperature +85 °C
	Instruction Set Architecture RISC
	Length 19.56mm
	Maximum Number of Ethernet Channels 0
	Width 7.11mm
	Height 4.83mm
	Number of Ethernet Channels 0
	ADCs 11 x 10 bit

Datasheet

COO (Country of Origin):: TH

PIC16F18323 microcontrollers feature Analog, Core Independent Peripherals and communication peripherals, combined with Extreme Low Power (XLP) for wide range of general purpose and low power applications.

Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels
Flash Program Memory with self read/write capability
256B EEPROM
IDLE and DOZE low power modes
Peripheral Module Disable (PMD)
Peripheral Pin Select (PPS)
2x 10-bit PWMs
2x Capture, Compare, PWM (CCP)
Complementary Waveform Generator (CWG)
Numerically Controlled Oscillator (NCO)
2x Configurable Logic Controller (CLC)
11 Channel 10-bit ADC with Voltage Reference
5-bit Digital to Analog Converter (DAC)
2x Comparators
2x 8-bit Timers (TMR0/TMR2)
1x 16-bit Timer (TMR1)
Extended Watchdog Timer (WDT)
Enhanced Power-On/Off-Reset
Low-Power Brown-Out Reset (LPBOR)
Programmable Brown-Out Reset (BOR)
In Circuit Serial Programming (ICSP)
PIC16LF18323 (1.8V – 3.6V)
PIC16F18323 (2.3V – 5.5V)
