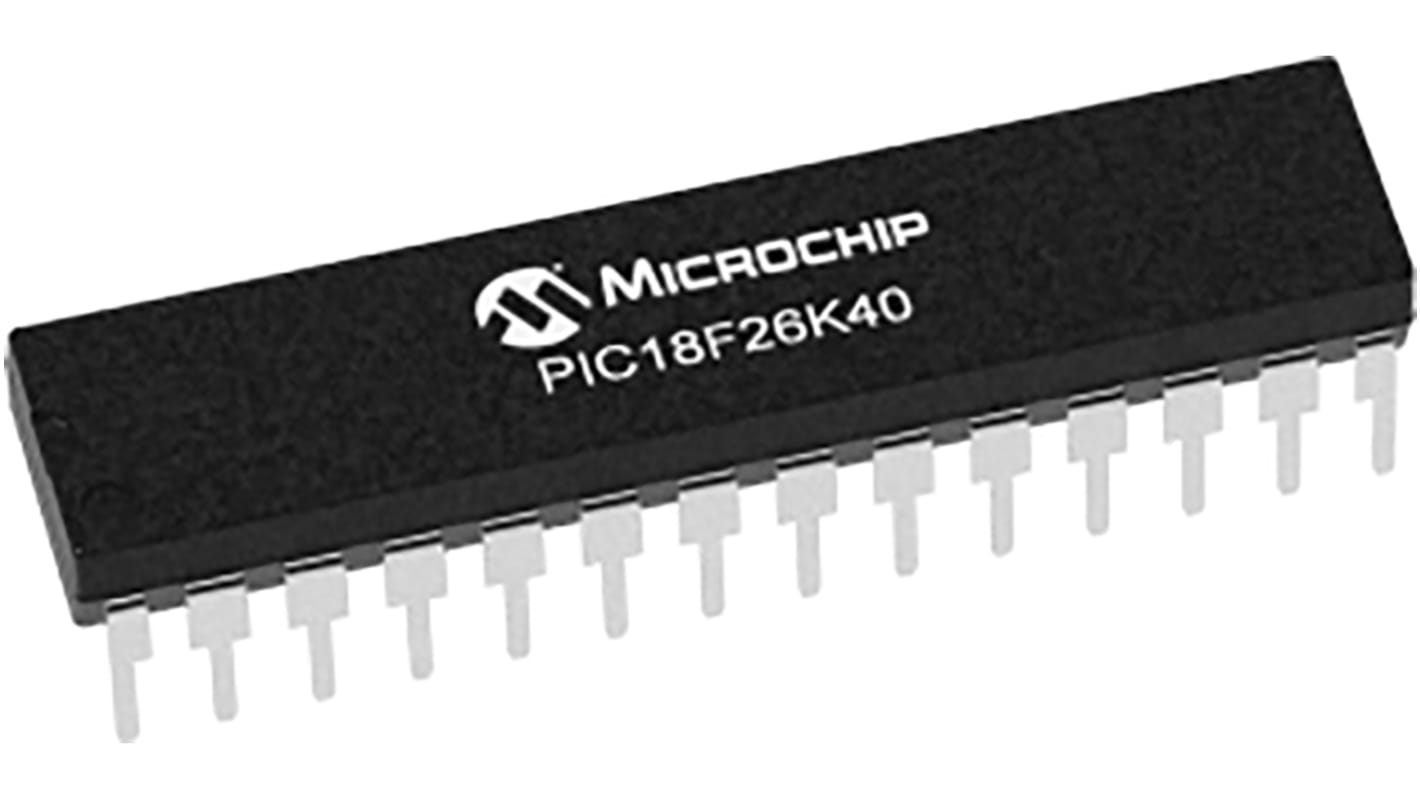

Microchip, 8bit PIC, PIC18F Microcontroller, 64MHz, 64 kB Flash, 28-Pin SPDIP

RS庫存編號:: 177-2186
製造零件編號:: PIC18F26K40-I/SP
製造商:: Microchip

Microchip, 8bit PIC, PIC18F Microcontroller, 64MHz, 64 kB Flash, 28-Pin SPDIP

可享批量折扣

小計（1 管，共 15 件）*

HK$278.70

訂單超過 HK$250.00 免費送貨

有庫存

105 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每管*
15 - 15	HK$18.58	HK$278.70
30 - 45	HK$18.207	HK$273.11
60 +	HK$17.847	HK$267.71

* 參考價格

RS庫存編號:: 177-2186
製造零件編號:: PIC18F26K40-I/SP
製造商:: Microchip

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Family Name	PIC18F
	Package Type	SPDIP
	Mounting Type	Through Hole
	Pin Count	28
	Device Core	PIC
	Data Bus Width	8bit
	Program Memory Size	64 kB
	Maximum Frequency	64MHz
	RAM Size	3.615 kB
	USB Channels	0
	Number of PWM Units	1 x 10 bit
	Number of SPI Channels	2
	Number of USART Channels	2
	Number of CAN Channels	0
	Typical Operating Supply Voltage	5.5 (Maximum) V
	Number of UART Channels	2
	Number of I2C Channels	2
	Height	3.81mm
	Width	7.37mm
	Dimensions	1.4 x 0.29 x 0.15in
	Pulse Width Modulation	1 (2 x 10 bit)
	Length	35.56mm
	ADCs	24 x 10 bit
	Maximum Number of Ethernet Channels	0
	Instruction Set Architecture	RISC
	Number of LIN Channels	0
	Program Memory Type	Flash
	Number of PCI Channels	0
	Number of Ethernet Channels	0
	Maximum Operating Temperature	+85 °C
	Number of ADC Units	1
	Minimum Operating Temperature	-40 °C

	選取全部
	品牌 Microchip
	Family Name PIC18F
	Package Type SPDIP
	Mounting Type Through Hole
	Pin Count 28
	Device Core PIC
	Data Bus Width 8bit
	Program Memory Size 64 kB
	Maximum Frequency 64MHz
	RAM Size 3.615 kB
	USB Channels 0
	Number of PWM Units 1 x 10 bit
	Number of SPI Channels 2
	Number of USART Channels 2
	Number of CAN Channels 0
	Typical Operating Supply Voltage 5.5 (Maximum) V
	Number of UART Channels 2
	Number of I2C Channels 2
	Height 3.81mm
	Width 7.37mm
	Dimensions 1.4 x 0.29 x 0.15in
	Pulse Width Modulation 1 (2 x 10 bit)
	Length 35.56mm
	ADCs 24 x 10 bit
	Maximum Number of Ethernet Channels 0
	Instruction Set Architecture RISC
	Number of LIN Channels 0
	Program Memory Type Flash
	Number of PCI Channels 0
	Number of Ethernet Channels 0
	Maximum Operating Temperature +85 °C
	Number of ADC Units 1
	Minimum Operating Temperature -40 °C

Datasheet

PIC18(L)F25K40 microcontrollers combine large Flash/EE/RAM memory, rich peripheral integration, XLP and 5V support to suit a variety of general purpose applications. These 28-pin devices deliver Core Independent Peripherals such as CWG, WWDT, CRC/Memory Scan, Hardware CVD, Zero-Cross Detect and Peripheral Pin Select, providing for increased design flexibility and lower system cost.

PIC18 Core with 83 Instructions, 31 Stack Levels

Internal 64MHz oscillator

Operating Voltage Range:- ’F’ Version (2.3V – 5.5V)- Low Power ’LF’ variant (1.8V –3.6V)

Temperature Range:- Industrial Version (-40C to 85C)- Extended Version (-40C to 125C)

MEMORIES:

16 KB Flash Program Memory with self read/write capability

1024 Bytes Data SRAM Memory

256 Bytes of EEPROM

INTELLIGENT ANALOG:

24 x 10-bit ADC channels

1 x 5-bit DAC

2 x Comparators

Fixed Voltage Reference (FVR) module - 1.024V, 2.048V and 4.096V output levels

Hardware Capacitive Voltage Divider (CVD) for mTouch buttons/sliders

1 x Zero-Cross Detect
