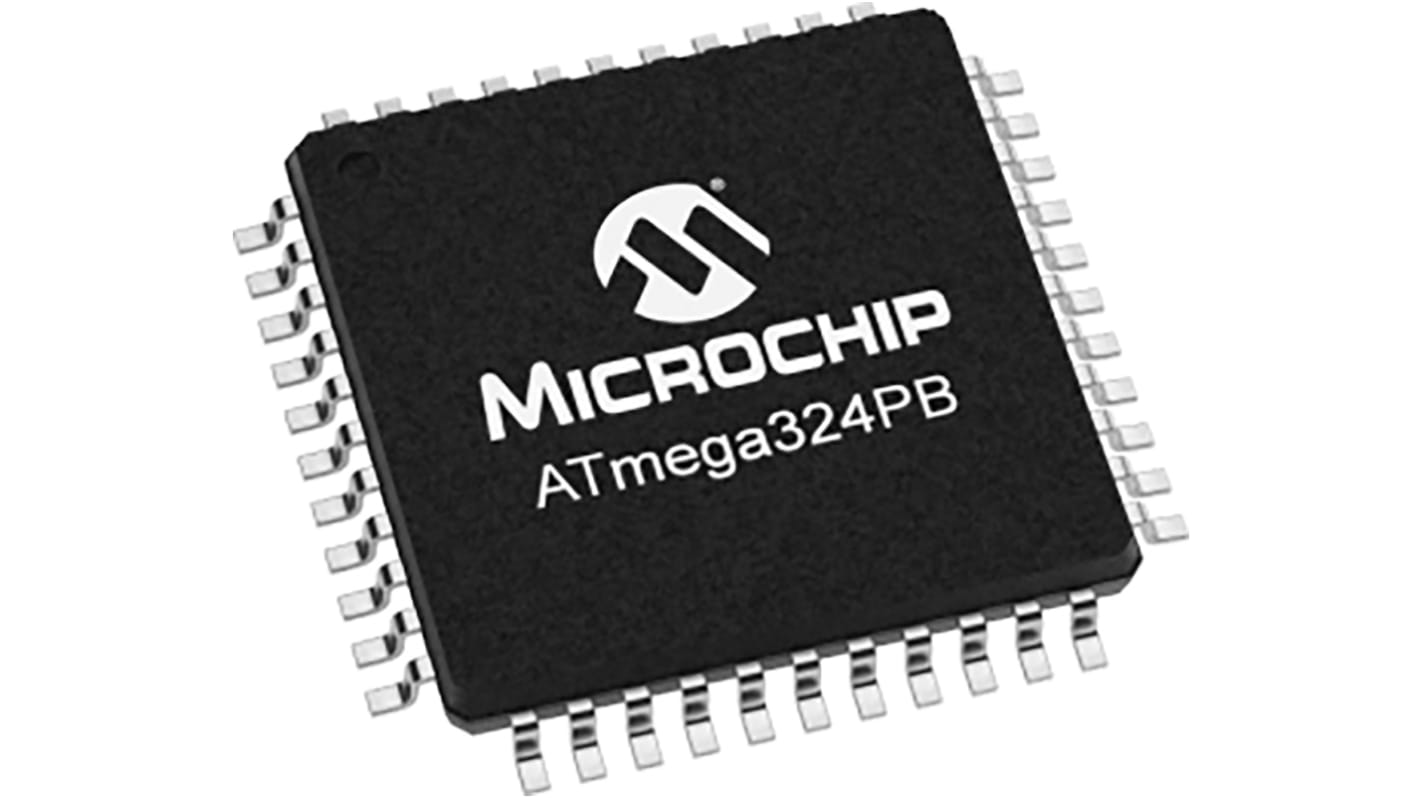

Microchip, 8bit AVR, ATmega Microcontroller, 20MHz, 32 kB Flash, 44-Pin TQFP

查看所有Microcontrollers
可享批量折扣

小計（1 托盤，共 160 件）*

HK$2,634.24

Add to Basket
選擇或輸入數量
庫存資訊目前無法查詢
單位
每單位
每托盤*
160 - 640HK$16.464HK$2,634.24
800 +HK$16.135HK$2,581.60

* 參考價格

RS庫存編號:
177-3446
製造零件編號:
ATMEGA324PB-AU
製造商:
Microchip
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Microchip

Family Name

ATmega

Package Type

TQFP

Mounting Type

Surface Mount

Pin Count

44

Device Core

AVR

Data Bus Width

8bit

Program Memory Size

32 kB

Maximum Frequency

20MHz

RAM Size

2 kB

USB Channels

0

Number of PWM Units

1

Number of SPI Channels

2

Number of CAN Channels

0

Number of USART Channels

3

Number of I2C Channels

2

Typical Operating Supply Voltage

5.5 (Maximum) V

Number of UART Channels

3

Instruction Set Architecture

RISC

Number of ADC Units

1

Maximum Number of Ethernet Channels

0

Number of Ethernet Channels

0

Program Memory Type

Flash

Number of PCI Channels

0

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+85 °C

Length

10.1mm

ADCs

8 x 10 bit

Number of LIN Channels

0

Width

10.1mm

Pulse Width Modulation

1 (10 Channel)

Dimensions

10.1 x 10.1 x 1.05mm

Height

1.05mm

COO (Country of Origin):
TW

Microchip Technology Microcontroller


The Microchip technology ATMEGA family type, TQFP package, surface mount, 44-pin AVR RISC-based processor with hardware multiplier 8-bit has a maximum voltage rating of 5.5 V. This microcontroller operates at a maximum speed of 20MHz and features 32kb ISP flash program memory, 2kb of internal SRAM and 1kb of EEPROM. It has 39 programmable I/O lines. The microcontroller has a real-time counter, five flexible timers/counters with compare modes, PWM, 3 UARTs and 8-channel 10-bit A/D converter.

Features and Benefits


• 10 PWM channels

• 131 powerful instructions - Most single-clock cycle execution

• External and internal interrupt sources

• Fully static operation

• High endurance non-volatile memory segments

• High-performance 8-bit advanced RISC architecture

• On-chip 2-cycle multiplier

• Operating temperature ranges between -40°C and 85°C

• Peripheral touch controller (PTC)

• Programming lock for software security

• Six sleep modes- Idle, ADC noise reduction, power-save, power-down, standby and extended standby

• Three 16-bit timers/counters with separate Prescaler, compare mode and capture mode

• Three USART with fractional baud rate generator, auto baud and start-of-frame detection

• True read-while-write Operation

• Two 8-bit timers/counters with separate Prescaler and compare mode

• Two-wire UART serial communication mode for general-purpose

• Write/Erase cycles- 10,000 flash/100,000 EEPROM

Applications


• Embedded systems

• LCD monitors and TVs

• Mobile PC docking

• PC motherboards

• Portable hub boxes

• Printers and scanners
