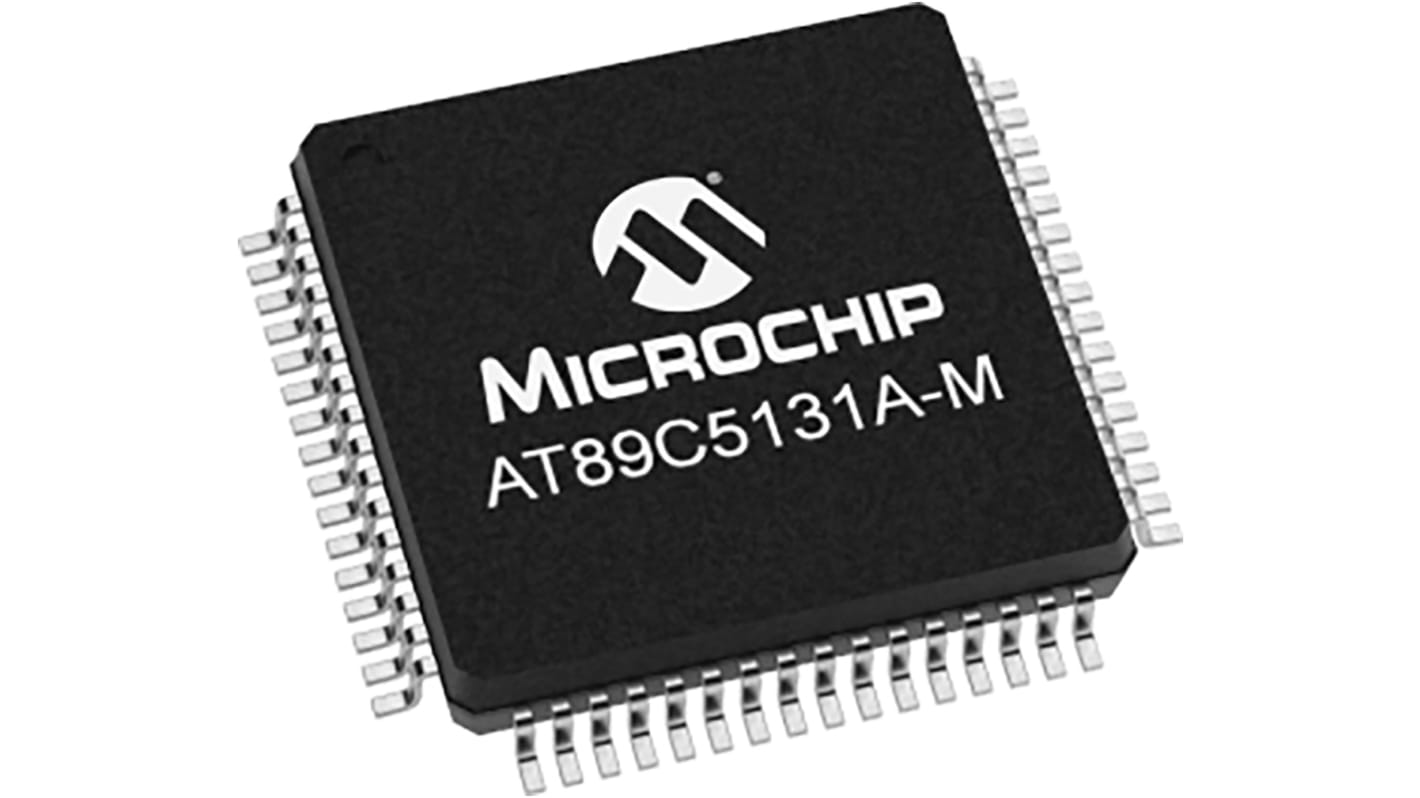

Microchip AT89C5131A-RDTUM, 8bit 80C5X2 Microcontroller, AT89C51, 48MHz, 32 kB Flash, 64-Pin VQFP
- RS庫存編號:
- 177-3767P
- 製造零件編號:
- AT89C5131A-RDTUM
- 製造商:
- Microchip
可享批量折扣
小計 40 件 (以盤裝提供)*
HK$2,310.00
訂單超過 HK$250.00 免費送貨
有庫存
- 82 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 40 - 78 | HK$57.75 |
| 80 + | HK$56.65 |
* 參考價格
- RS庫存編號:
- 177-3767P
- 製造零件編號:
- AT89C5131A-RDTUM
- 製造商:
- Microchip
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Microchip | |
| Family Name | AT89C51 | |
| Package Type | VQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 64 | |
| Device Core | 80C5X2 | |
| Data Bus Width | 8bit | |
| Program Memory Size | 32 kB | |
| Maximum Frequency | 48MHz | |
| RAM Size | 1.024 kB | |
| USB Channels | 1 | |
| Number of PWM Units | 1 x 8 bit | |
| Number of SPI Channels | 1 | |
| Number of I2C Channels | 1 | |
| Typical Operating Supply Voltage | 5.5 (Maximum) V | |
| Number of UART Channels | 1 | |
| Pulse Width Modulation | 1 (5 x 8 bit) | |
| Dimensions | 10.1 x 10.1 x 1.45mm | |
| Width | 10.1mm | |
| Data Rate | 12.03Mbit/s | |
| Height | 1.45mm | |
| Number of Ethernet Channels | 0 | |
| Program Memory Type | Flash | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Number of Ethernet Channels | 0 | |
| Maximum Operating Temperature | +85 °C | |
| Length | 10.1mm | |
| 選取全部 | ||
|---|---|---|
品牌 Microchip | ||
Family Name AT89C51 | ||
Package Type VQFP | ||
Mounting Type Surface Mount | ||
Pin Count 64 | ||
Device Core 80C5X2 | ||
Data Bus Width 8bit | ||
Program Memory Size 32 kB | ||
Maximum Frequency 48MHz | ||
RAM Size 1.024 kB | ||
USB Channels 1 | ||
Number of PWM Units 1 x 8 bit | ||
Number of SPI Channels 1 | ||
Number of I2C Channels 1 | ||
Typical Operating Supply Voltage 5.5 (Maximum) V | ||
Number of UART Channels 1 | ||
Pulse Width Modulation 1 (5 x 8 bit) | ||
Dimensions 10.1 x 10.1 x 1.45mm | ||
Width 10.1mm | ||
Data Rate 12.03Mbit/s | ||
Height 1.45mm | ||
Number of Ethernet Channels 0 | ||
Program Memory Type Flash | ||
Minimum Operating Temperature -40 °C | ||
Maximum Number of Ethernet Channels 0 | ||
Maximum Operating Temperature +85 °C | ||
Length 10.1mm | ||
High-performance flash version of the 80C51 single-chip 8-bit microController: full-speed USB functions.
80C52X2 Core (6 Clocks per Instruction)
Maximum Core Frequency 48MHz in X1 Mode, 24MHz in X2 Mode
Dual Data Pointer
Full-duplex Enhanced UART (EUART)
Three 16-bit Timer/Counters: T0, T1 and T2
256 Bytes of Scratchpad RAM
16/32Kb On-chip Flash EEPROM In-System Programming through USB
Byte and Page (128 bytes) Erase and Write
100k Write Cycles
3KbFlash EEPROM for Bootloader
Byte and Page (128 bytes)
