產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Series	MEC14XX
	Product Type	Microcontroller
	Package Type	TQFP
	Mount Type	Surface
	Pin Count	128
	Device Core	MIPS32 M14K
	Data Bus Width	32bit
	Program Memory Size	192kB
	Maximum Clock Frequency	66MHz
	RAM Size	32kB
	Maximum Supply Voltage	3.3V
	Number of Programmable I/Os	108
	Minimum Operating Temperature	-40°C
	Analogue Comparators	2
	Maximum Operating Temperature	85°C
	Length	14.2mm
	Height	1.05mm
	Width	14.2 mm
	Standards/Approvals	No
	Minimum Supply Voltage	1.8V
	Automotive Standard	No
	ADCs	8 x 10 Bit
	Instruction Set Architecture	RISC
	Program Memory Type	SRAM

	選取全部
	品牌 Microchip
	Series MEC14XX
	Product Type Microcontroller
	Package Type TQFP
	Mount Type Surface
	Pin Count 128
	Device Core MIPS32 M14K
	Data Bus Width 32bit
	Program Memory Size 192kB
	Maximum Clock Frequency 66MHz
	RAM Size 32kB
	Maximum Supply Voltage 3.3V
	Number of Programmable I/Os 108
	Minimum Operating Temperature -40°C
	Analogue Comparators 2
	Maximum Operating Temperature 85°C
	Length 14.2mm
	Height 1.05mm
	Width 14.2 mm
	Standards/Approvals No
	Minimum Supply Voltage 1.8V
	Automotive Standard No
	ADCs 8 x 10 Bit
	Instruction Set Architecture RISC
	Program Memory Type SRAM

Datasheet

COO (Country of Origin):: US

The MEC1428 is the latest member of the MEC14XX family and adds a new level of design functionality for computing engineers by adding Slave Attached Flash (SAF), which is an optimal solution for USB Type-C™ power delivery. The MEC1428 device is pin and register compatible with the MEC140X and MEC141X families, which allows designers to easily add eSPI and additional features and have more flexibility in their designs. The MEC1428 retains eSPI Master Attached Flash (MAF) capability.

MIPS32® M14K™ Microcontroller Core

Enhanced Serial Peripheral Interface (eSPI) or LPC Host Interface

Supports Slave Attached Flash Sharing (SAFS)

VTR (standby) and VBAT (Power Planes)

Connected Standby Support

8042 Emulated Keyboard Controller

Secure Boot ROM Loader

System to EC Message Interface

Trace FIFO Debug Port (TFDP)

32-bit RTOS Timer

單位	每單位	每包*
5 - 20	HK$37.72	HK$188.60
25 - 40	HK$36.96	HK$184.80
45 +	HK$36.24	HK$181.20

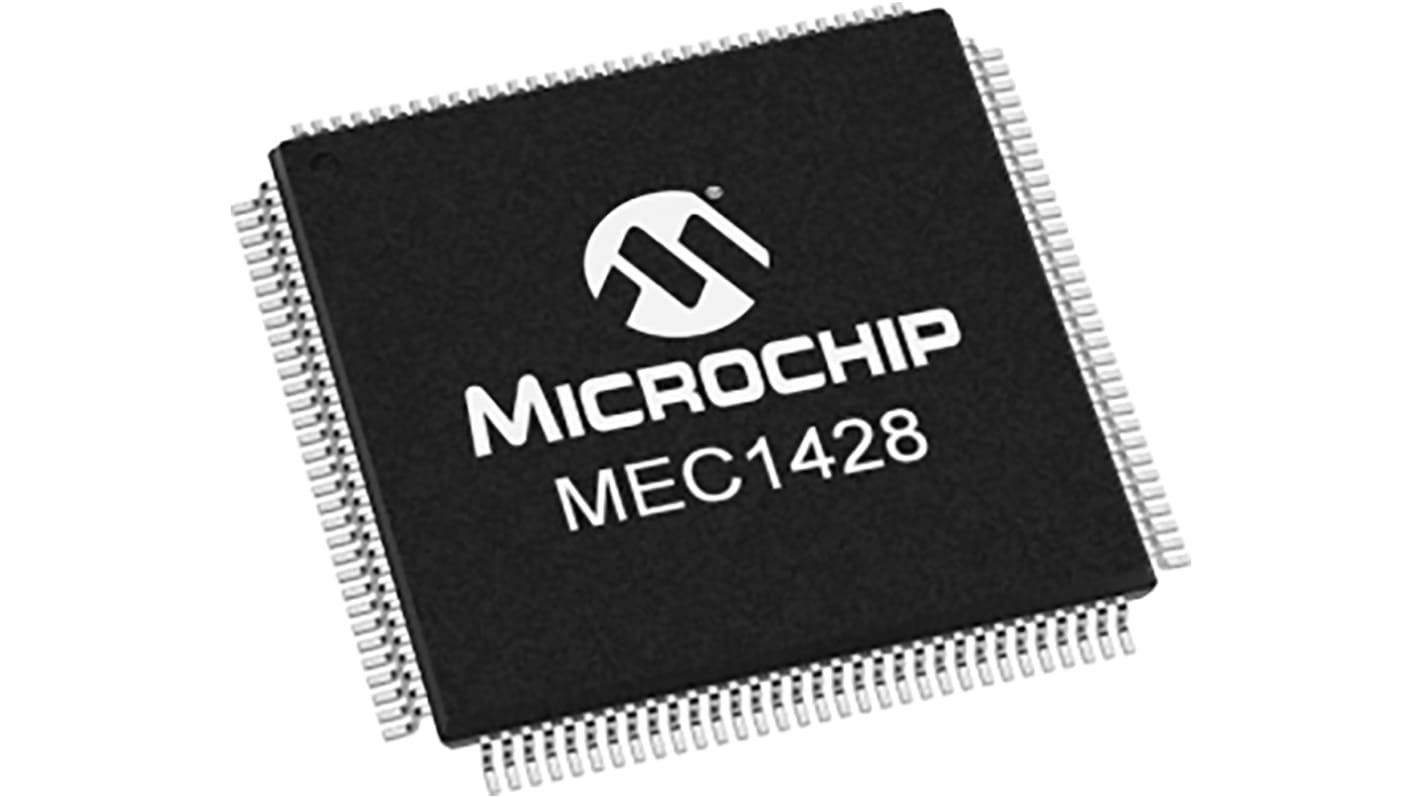

Microchip MEC1428-I/NU-C1, 32 bit MIPS32 M14K, MEC14XX Microcontroller, 66 MHz, 192kB SRAM, 128-Pin TQFP
