選取全部	屬性	值
	品牌	STMicroelectronics
	Product Type	Microcontroller
	Series	STM32F051C6
	Package Type	LQFP
	Mount Type	Surface
	Pin Count	48
	Device Core	ARM Cortex M0
	Data Bus Width	32bit
	Program Memory Size	32kB
	Maximum Clock Frequency	48MHz
	RAM Size	8kB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	105°C
	Standards/Approvals	No
	Maximum Power Dissipation Pd	364mW
	Height	1.45mm
	DACs	1 x 12 Bit
	Width	7.2 mm
	Analogue Comparators	2
	Length	7.2mm
	Minimum Supply Voltage	2V
	Number of Timers	4
	ADCs	13 x 12 Bit
	Program Memory Type	FLASH
	Automotive Standard	No
	Instruction Set Architecture	RISC

	選取全部
	品牌 STMicroelectronics
	Product Type Microcontroller
	Series STM32F051C6
	Package Type LQFP
	Mount Type Surface
	Pin Count 48
	Device Core ARM Cortex M0
	Data Bus Width 32bit
	Program Memory Size 32kB
	Maximum Clock Frequency 48MHz
	RAM Size 8kB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 105°C
	Standards/Approvals No
	Maximum Power Dissipation Pd 364mW
	Height 1.45mm
	DACs 1 x 12 Bit
	Width 7.2 mm
	Analogue Comparators 2
	Length 7.2mm
	Minimum Supply Voltage 2V
	Number of Timers 4
	ADCs 13 x 12 Bit
	Program Memory Type FLASH
	Automotive Standard No
	Instruction Set Architecture RISC

COO (Country of Origin):: TW

The STM32F051xx microcontrollers incorporate the high-performance ARM®Cortex®-M0 32-bit RISC core operating at up to 48 MHz frequency, high-speed embedded memories (up to 64 Kbytes of Flash memory and 8 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces (up to two I2Cs, up to two SPIs, one I2S, one HDMI CEC and up to two USARTs), one 12-bit ADC, one 12-bit DAC, six 16-bit timers, one 32-bit timer and an advanced-control PWM timer.

The STM32F051xx microcontrollers include devices in seven different packages ranging from 32 pins to 64 pins. Depending on the device chosen, different sets of peripherals are included.

These features make the STM32F051xx microcontrollers suitable for a wide range of applications such as application control and user interfaces, hand-held equipment, A/V receivers and digital TV, PC peripherals, gaming and GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms and HVACs.

單位	每單位	每包*
5 - 60	HK$25.46	HK$127.30
65 - 120	HK$24.90	HK$124.50
125 +	HK$24.38	HK$121.90

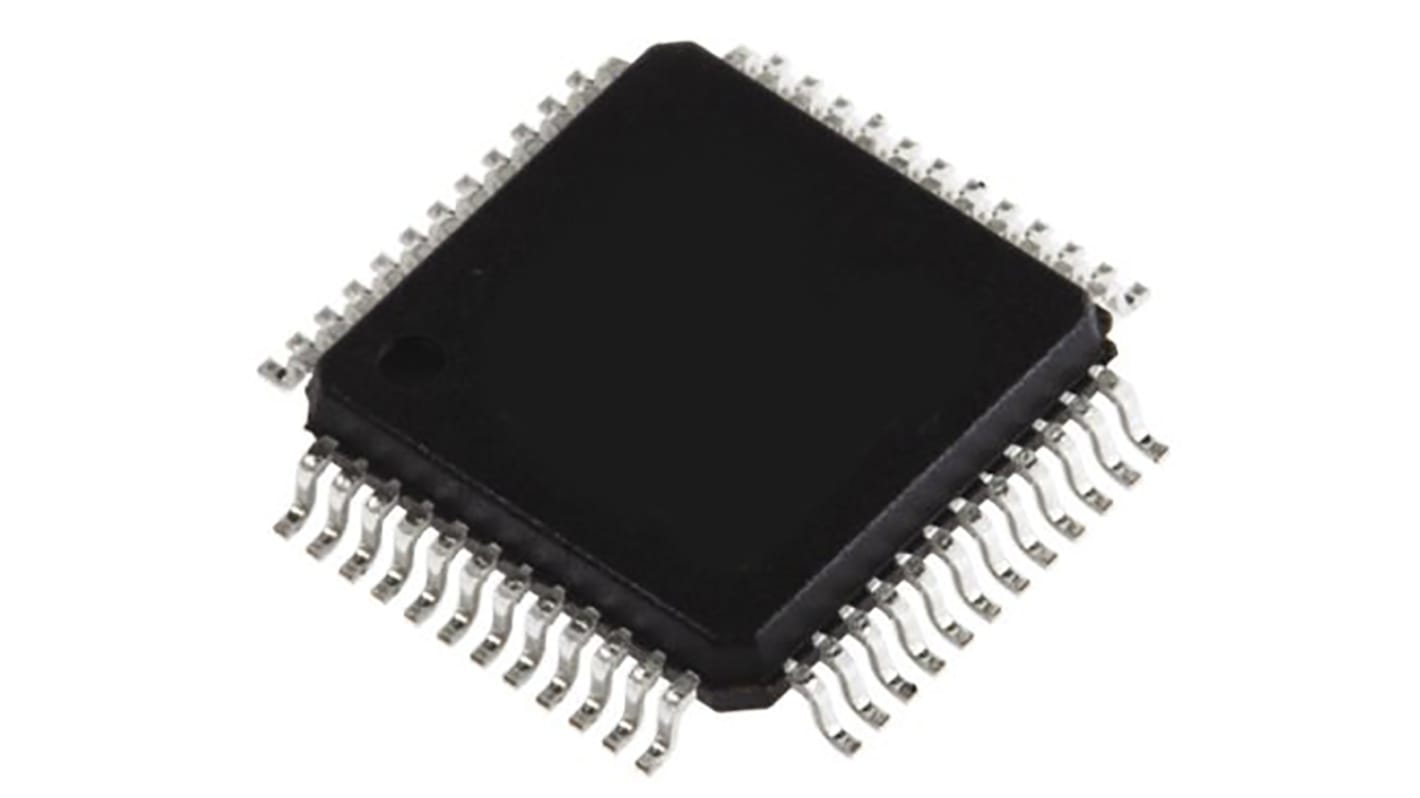

STMicroelectronics STM32F051C6T7, 32 bit ARM Cortex M0, STM32F051C6 Microcontroller, 48 MHz, 32kB FLASH, 48-Pin LQFP
