產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	STMicroelectronics
	Series	STM32F070RB
	Product Type	Microcontroller
	Package Type	LQFP
	Mount Type	Surface
	Pin Count	64
	Device Core	ARM Cortex M0
	Data Bus Width	32bit
	Program Memory Size	128kB
	Maximum Clock Frequency	48MHz
	RAM Size	16kB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Width	10 mm
	Height	1.45mm
	Maximum Power Dissipation Pd	455mW
	Standards/Approvals	FBI
	Length	10mm
	Minimum Supply Voltage	2.4V
	ADCs	12 x 12 Bit
	Automotive Standard	No
	Instruction Set Architecture	RISC
	Program Memory Type	FLASH

	選取全部
	品牌 STMicroelectronics
	Series STM32F070RB
	Product Type Microcontroller
	Package Type LQFP
	Mount Type Surface
	Pin Count 64
	Device Core ARM Cortex M0
	Data Bus Width 32bit
	Program Memory Size 128kB
	Maximum Clock Frequency 48MHz
	RAM Size 16kB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Width 10 mm
	Height 1.45mm
	Maximum Power Dissipation Pd 455mW
	Standards/Approvals FBI
	Length 10mm
	Minimum Supply Voltage 2.4V
	ADCs 12 x 12 Bit
	Automotive Standard No
	Instruction Set Architecture RISC
	Program Memory Type FLASH

COO (Country of Origin):: TW

The STM32F070CB/RB/C6/F6 microcontrollers incorporate the high-performance ARM®Cortex®-M0 32-bit RISC core operating at a 48 MHz frequency, high-speed embedded memories (up to 128 Kbytes of Flash memory and up to 16 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces (up to two I2Cs, up to two SPIs and up to four USARTs), one USB Full speed device, one 12-bit ADC, seven general-purpose 16-bit timers and an advanced-control PWM timer.

The description below provides an overview of the complete range of STM32F070CB/RB/C6/F6 peripherals proposed.

These features make the STM32F070CB/RB/C6/F6 microcontrollers suitable for a wide range of applications such as application control and user interfaces, handheld equipment, A/V receivers and digital TV, PC peripherals, gaming and GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.

單位	每單位	每包*
5 - 35	HK$23.46	HK$117.30
40 - 75	HK$23.00	HK$115.00
80 +	HK$22.54	HK$112.70

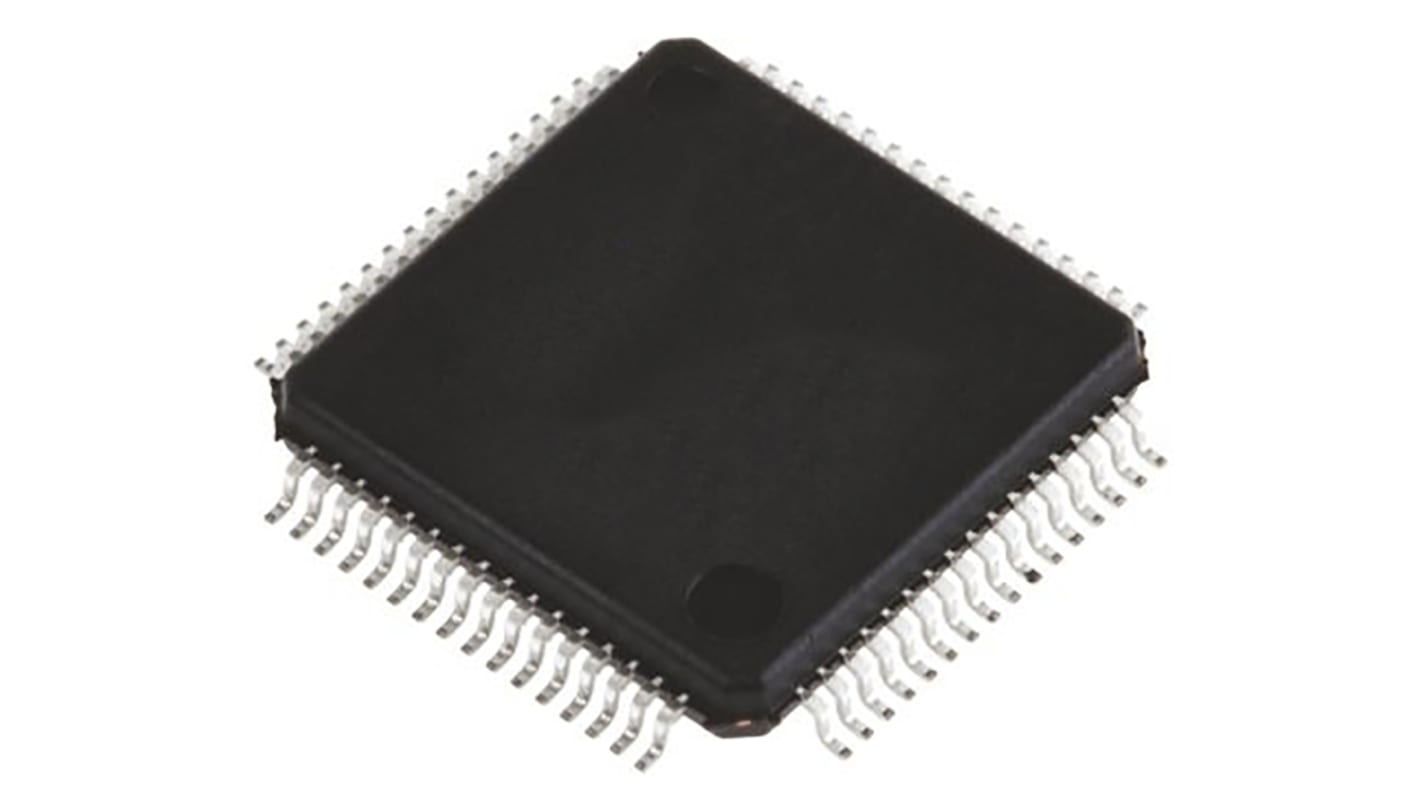

STMicroelectronics STM32F070RBT6, 32 bit ARM Cortex M0, STM32F070RB Microcontroller, 48 MHz, 128kB FLASH, 64-Pin LQFP
