產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Renesas Electronics
	Family Name	RX631
	Package Type	LQFP
	Mounting Type	Surface Mount
	Pin Count	100
	Device Core	RX
	Data Bus Width	32bit
	Program Memory Size	2 MB
	Maximum Frequency	100MHz
	RAM Size	256 kB
	USB Channels	1
	Number of SPI Channels	11
	Number of CAN Channels	2
	Number of UART Channels	9
	Number of I2C Channels	11
	Number of USART Channels	0
	Typical Operating Supply Voltage	2.7 → 3.6 V
	ADCs	22 x 10/12 bit
	Length	14.1mm
	Dimensions	14.1 x 14.1 x 1.4mm
	Number of ADC Units	2
	Maximum Operating Temperature	+85 °C
	Program Memory Type	Flash
	Maximum Number of Ethernet Channels	0
	Height	1.4mm
	Instruction Set Architecture	CISC Harvard
	Number of LIN Channels	0
	Minimum Operating Temperature	-40 °C
	Number of PCI Channels	0
	Number of Ethernet Channels	0
	Width	14.1mm

	選取全部
	品牌 Renesas Electronics
	Family Name RX631
	Package Type LQFP
	Mounting Type Surface Mount
	Pin Count 100
	Device Core RX
	Data Bus Width 32bit
	Program Memory Size 2 MB
	Maximum Frequency 100MHz
	RAM Size 256 kB
	USB Channels 1
	Number of SPI Channels 11
	Number of CAN Channels 2
	Number of UART Channels 9
	Number of I2C Channels 11
	Number of USART Channels 0
	Typical Operating Supply Voltage 2.7 → 3.6 V
	ADCs 22 x 10/12 bit
	Length 14.1mm
	Dimensions 14.1 x 14.1 x 1.4mm
	Number of ADC Units 2
	Maximum Operating Temperature +85 °C
	Program Memory Type Flash
	Maximum Number of Ethernet Channels 0
	Height 1.4mm
	Instruction Set Architecture CISC Harvard
	Number of LIN Channels 0
	Minimum Operating Temperature -40 °C
	Number of PCI Channels 0
	Number of Ethernet Channels 0
	Width 14.1mm

Datasheet R5F5631FDDFC#V0

RX631/RX63N Group microcontrollers come in a comprehensive memory vs. package lineup to suit your system scale. In addition to standard functions such as 12bit A/D converter, motor control timers, SCI, RSPI, I2C, CAN and safety features, connectivity functions such as Ethernet and USB host have been enhanced. The lineup also includes products possessing specialized functions, such as sensing/image display using a CMOS camera, or security (hardware AES encryption). Products that support high-temperature (105°C) operation are also available.

單位	每單位	每托盤*
90 - 90	HK$194.132	HK$17,471.88
180 - 270	HK$190.735	HK$17,166.15
360 +	HK$187.24	HK$16,851.60

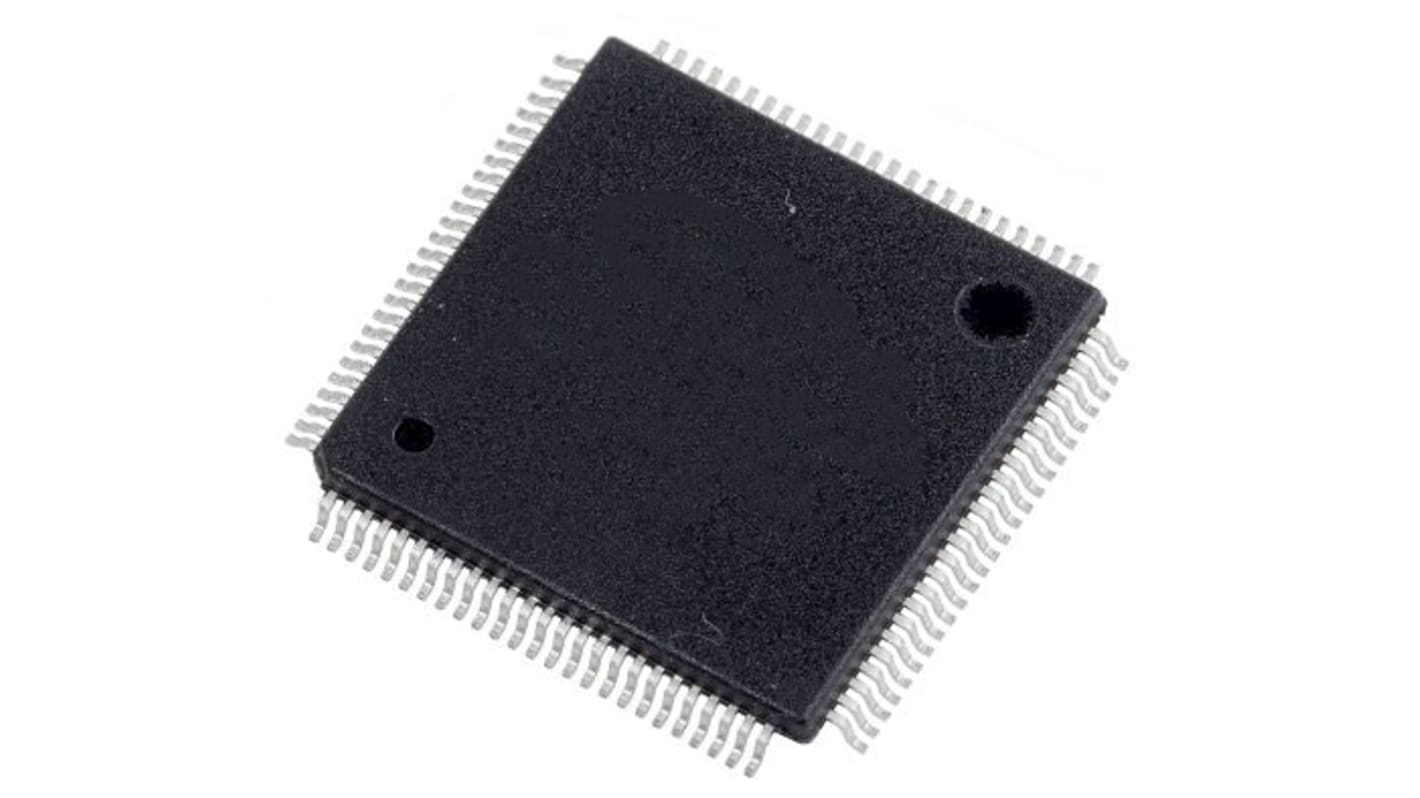

Renesas Electronics, 32bit RX, RX631 Microcontroller, 100MHz, 2 MB Flash, 100-Pin LQFP

訂單超過 HK$250.00 免費送貨

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
