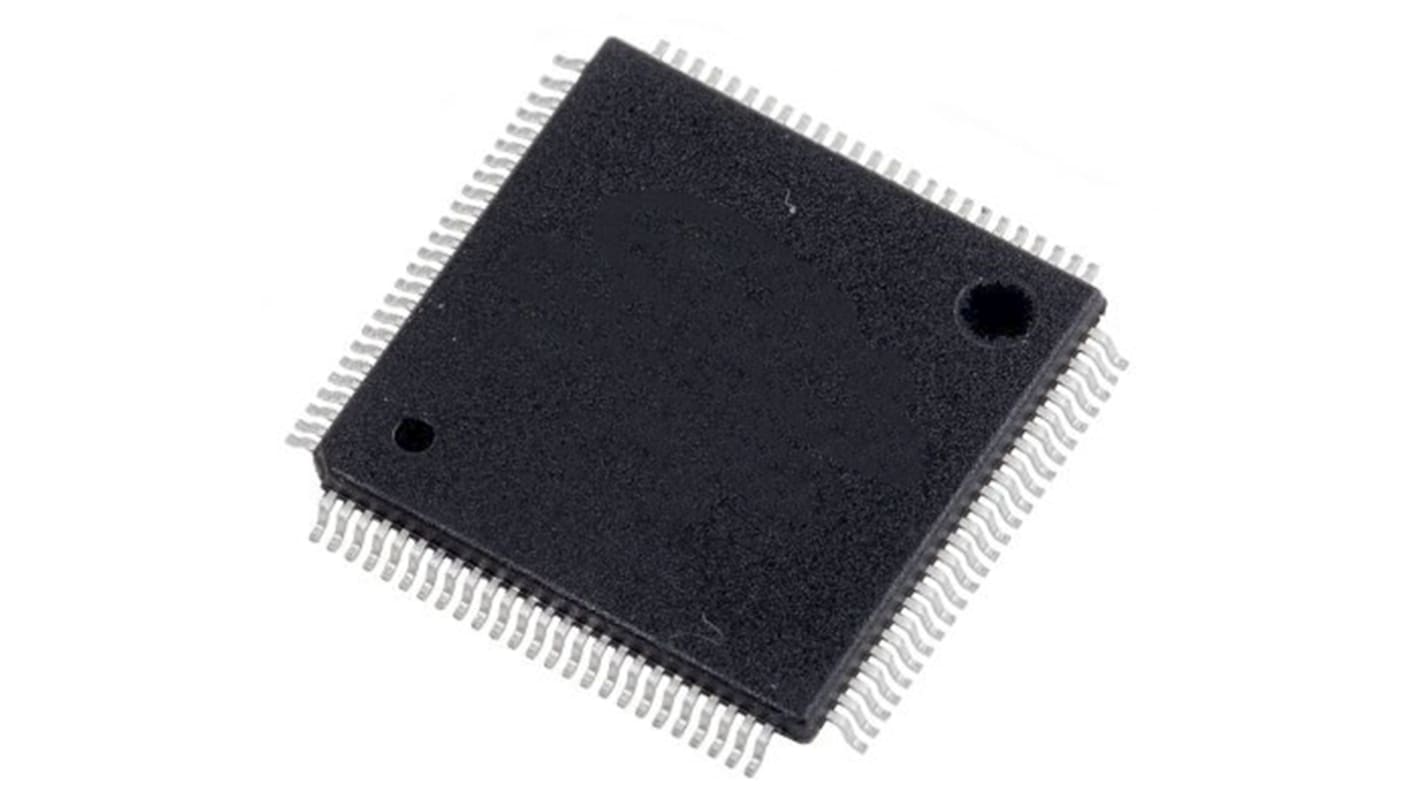

Renesas Electronics, 32bit RX, RX631 Microcontroller, 100MHz, 2 MB Flash, 100-Pin LQFP

RS庫存編號:: 177-5000
製造零件編號:: R5F5631EDDFP
製造商:: Renesas Electronics

Renesas Electronics, 32bit RX, RX631 Microcontroller, 100MHz, 2 MB Flash, 100-Pin LQFP

可享批量折扣

小計（1 托盤，共 90 件）*

HK$19,713.51

訂單超過 HK$250.00 免費送貨

暫時缺貨

從 2026年3月17日發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每托盤*
90 - 360	HK$219.039	HK$19,713.51
450 +	HK$197.135	HK$17,742.15

* 參考價格

RS庫存編號:: 177-5000
製造零件編號:: R5F5631EDDFP
製造商:: Renesas Electronics

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Renesas Electronics
	Family Name	RX631
	Package Type	LQFP
	Mounting Type	Surface Mount
	Pin Count	100
	Device Core	RX
	Data Bus Width	32bit
	Program Memory Size	2 MB
	Maximum Frequency	100MHz
	RAM Size	128 kB
	USB Channels	2
	Number of SPI Channels	3
	Number of UART Channels	9
	Number of I2C Channels	4
	Number of CAN Channels	3
	Typical Operating Supply Voltage	2.7 → 3.6 V
	Number of USART Channels	0
	Minimum Operating Temperature	-40 °C
	ADCs	29 x 10/12 bit
	Program Memory Type	Flash
	Maximum Operating Temperature	+85 °C
	Dimensions	13.9 x 13.9 x 1.4mm
	Width	13.9mm
	Instruction Set Architecture	CISC Harvard
	Height	1.4mm
	Number of LIN Channels	0
	Number of Ethernet Channels	1
	Length	13.9mm
	Maximum Number of Ethernet Channels	1
	Number of PCI Channels	0
	Number of ADC Units	2

	選取全部
	品牌 Renesas Electronics
	Family Name RX631
	Package Type LQFP
	Mounting Type Surface Mount
	Pin Count 100
	Device Core RX
	Data Bus Width 32bit
	Program Memory Size 2 MB
	Maximum Frequency 100MHz
	RAM Size 128 kB
	USB Channels 2
	Number of SPI Channels 3
	Number of UART Channels 9
	Number of I2C Channels 4
	Number of CAN Channels 3
	Typical Operating Supply Voltage 2.7 → 3.6 V
	Number of USART Channels 0
	Minimum Operating Temperature -40 °C
	ADCs 29 x 10/12 bit
	Program Memory Type Flash
	Maximum Operating Temperature +85 °C
	Dimensions 13.9 x 13.9 x 1.4mm
	Width 13.9mm
	Instruction Set Architecture CISC Harvard
	Height 1.4mm
	Number of LIN Channels 0
	Number of Ethernet Channels 1
	Length 13.9mm
	Maximum Number of Ethernet Channels 1
	Number of PCI Channels 0
	Number of ADC Units 2

RX63N Microcontrollers

The RX63N family of 32-bit microcontrollers features 100MHz high-speed operation, large-capacity on-chip memory and Ethernet communication.

• 100MHz 32-bit RX core microcontroller
• Up to 2MB Flash memory
• 32KB Data Flash memory
• 32-bit multiplier/divider with multiply-accumulate
• Single-precision IEEE 754 Floating Point maths unit
• AES-128/192/256 Data Encryption unit (Selected devices)
• 4-channel DMA controller
• Data Transfer Controller
• Serial Communication: SPI, I²C, USB, CAN, Ethernet
• 14-bit Independent Watchdog Timer
• Programmable Pulse Generator
• Real-Time Clock
• CRC Calculator
• Temperature sensor
• On-chip debug and trace
• Power supply: +2.7 to +3.6Vdc
• Low-Power Modes: Sleep, All-module clock stop, Software standby, Deep software standby
