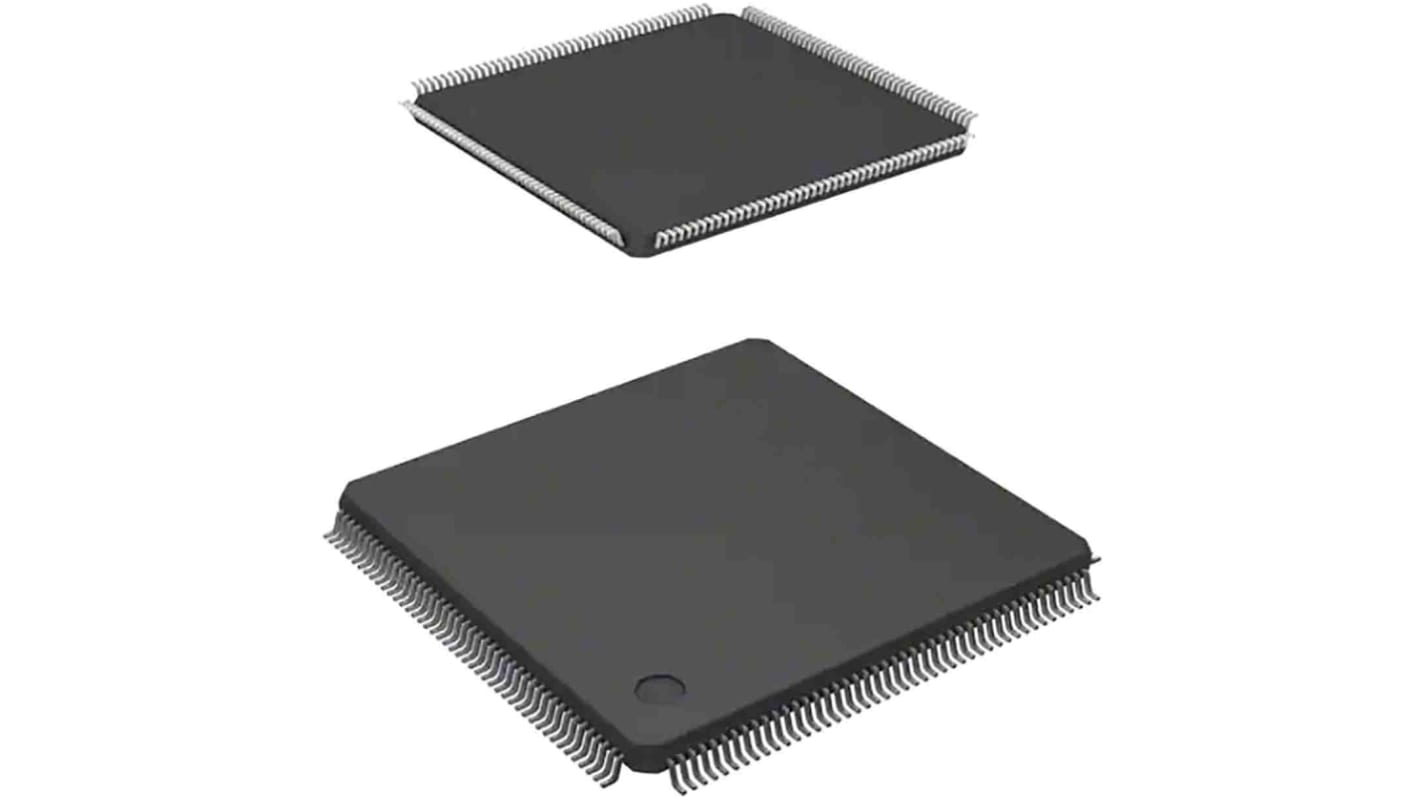

Renesas Electronics, 32bit ARM Cortex M4, S7G2 Microcontroller, 240MHz, 4 MB Flash, 176-Pin LQFP

RS庫存編號:: 192-8164
製造零件編號:: R7FS7G27H3A01CFC#AA0
製造商:: Renesas Electronics

Renesas Electronics, 32bit ARM Cortex M4, S7G2 Microcontroller, 240MHz, 4 MB Flash, 176-Pin LQFP

可享批量折扣

小計（1 托盤，共 40 件）*

HK$7,201.80

訂單超過 HK$250.00 免費送貨

暫時缺貨

從 2026年3月19日發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每托盤*
40 - 40	HK$180.045	HK$7,201.80
80 - 120	HK$175.545	HK$7,021.80
160 +	HK$172.843	HK$6,913.72

* 參考價格

RS庫存編號:: 192-8164
製造零件編號:: R7FS7G27H3A01CFC#AA0
製造商:: Renesas Electronics

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Renesas Electronics
	Family Name	S7G2
	Package Type	LQFP
	Mounting Type	Surface Mount
	Pin Count	176
	Device Core	ARM Cortex M4
	Data Bus Width	32bit
	Program Memory Size	4 MB
	Maximum Frequency	240MHz
	RAM Size	640 kB
	USB Channels	1
	Number of PWM Units	1 x 32 bit
	Number of SPI Channels	2
	Number of CAN Channels	2
	Number of UART Channels	2
	Number of I2C Channels	3
	Typical Operating Supply Voltage	2.7 → 3.6 V
	Number of USART Channels	0
	Number of LIN Channels	0
	Pulse Width Modulation	1 (6 x 32 bit)
	Number of ADC Units	1
	Number of Ethernet Channels	2
	Minimum Operating Temperature	-40 °C
	Number of PCI Channels	0
	Length	24.1mm
	Instruction Set Architecture	DSP
	ADCs	21 x 12 bit
	Maximum Number of Ethernet Channels	2
	Height	1.4mm
	Maximum Operating Temperature	+105 °C
	Width	24.1mm
	Dimensions	24.1 x 24.1 x 1.4mm
	Program Memory Type	Flash

	選取全部
	品牌 Renesas Electronics
	Family Name S7G2
	Package Type LQFP
	Mounting Type Surface Mount
	Pin Count 176
	Device Core ARM Cortex M4
	Data Bus Width 32bit
	Program Memory Size 4 MB
	Maximum Frequency 240MHz
	RAM Size 640 kB
	USB Channels 1
	Number of PWM Units 1 x 32 bit
	Number of SPI Channels 2
	Number of CAN Channels 2
	Number of UART Channels 2
	Number of I2C Channels 3
	Typical Operating Supply Voltage 2.7 → 3.6 V
	Number of USART Channels 0
	Number of LIN Channels 0
	Pulse Width Modulation 1 (6 x 32 bit)
	Number of ADC Units 1
	Number of Ethernet Channels 2
	Minimum Operating Temperature -40 °C
	Number of PCI Channels 0
	Length 24.1mm
	Instruction Set Architecture DSP
	ADCs 21 x 12 bit
	Maximum Number of Ethernet Channels 2
	Height 1.4mm
	Maximum Operating Temperature +105 °C
	Width 24.1mm
	Dimensions 24.1 x 24.1 x 1.4mm
	Program Memory Type Flash

Datasheet R7FS7G27G3A01CFC#AA0

Designed for high-compute, performance-intensive, networked control applications requiring full memory redundancy, the S7G2 MCU Group has 3 to 4 MB of flash memory and 640 KB of SRAM. Rich in features, it includes a Graphics LCD Controller, 2D Drawing Engine, Capacitive Touch Sensing Unit, advanced analog, Ethernet MAC Controller with USB 2.0 High-Speed and Full-Speed, SDHI, Quad SPI and safety and security features, to handle a wide range of complexity.
