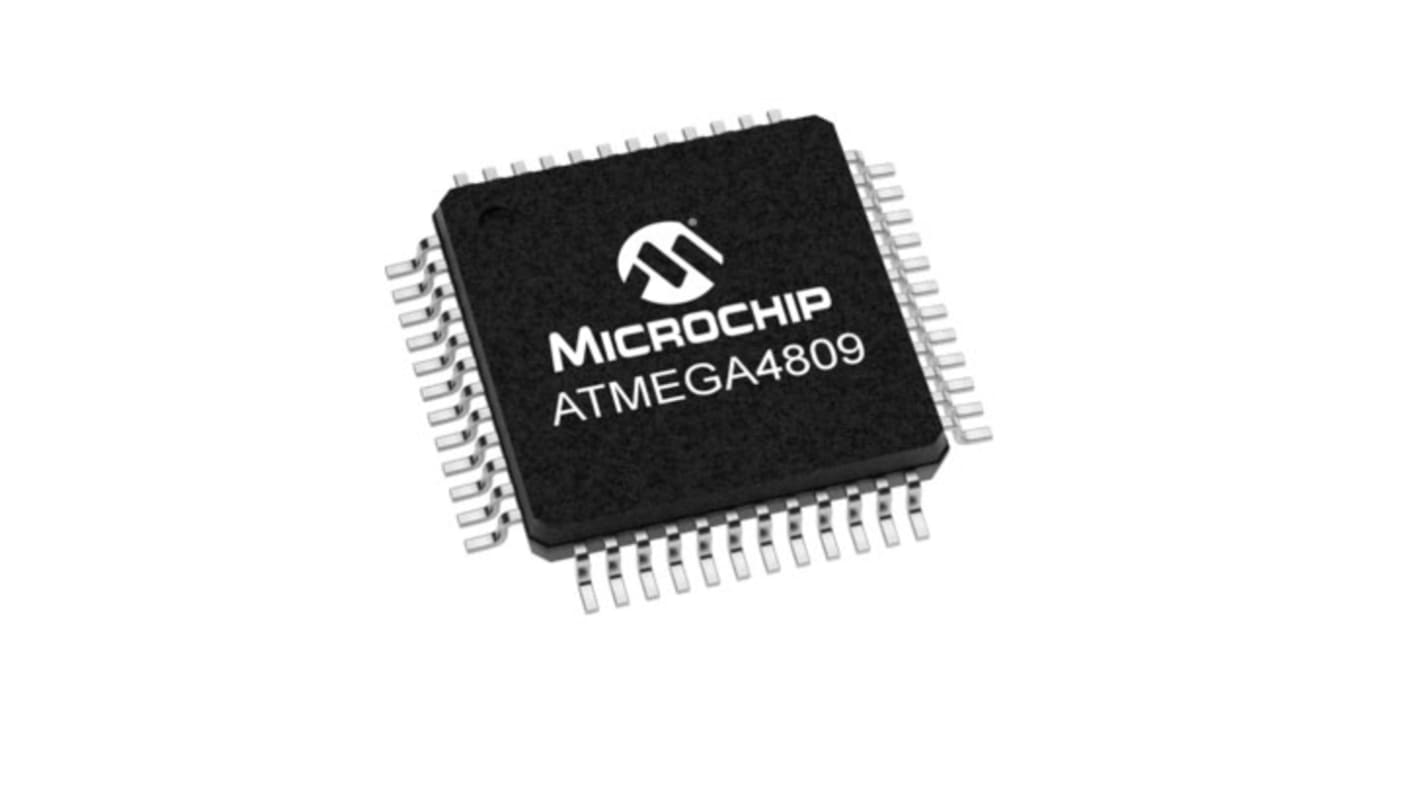

Microchip, 8bit AVR, ATmega Microcontroller, 20MHz, 48 kB Flash, 48-Pin TQFP

RS庫存編號:: 193-6184
製造零件編號:: ATMEGA4809-AU
製造商:: Microchip

Microchip, 8bit AVR, ATmega Microcontroller, 20MHz, 48 kB Flash, 48-Pin TQFP

可享批量折扣

小計（1 托盤，共 250 件）*

HK$3,220.00

訂單超過 HK$250.00 免費送貨

有庫存

加上 250 件從 2025年12月10日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每托盤*
250 - 1000	HK$12.88	HK$3,220.00
1250 +	HK$12.623	HK$3,155.75

* 參考價格

RS庫存編號:: 193-6184
製造零件編號:: ATMEGA4809-AU
製造商:: Microchip

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Family Name	ATmega
	Package Type	TQFP
	Mounting Type	Surface Mount
	Pin Count	48
	Device Core	AVR
	Data Bus Width	8bit
	Program Memory Size	48 kB
	Maximum Frequency	20MHz
	RAM Size	6 kB
	USB Channels	0
	Number of PWM Units	0
	Number of SPI Channels	1
	Number of UART Channels	4
	Typical Operating Supply Voltage	1.8 → 5.5 V
	Number of I2C Channels	1
	Number of CAN Channels	0
	Number of USART Channels	4
	Maximum Operating Temperature	+125 °C
	Program Memory Type	Flash
	Number of ADC Units	1
	Length	7mm
	ADCs	16 x 10 bit
	Maximum Number of Ethernet Channels	0
	Instruction Set Architecture	RISC
	Minimum Operating Temperature	-40 °C
	Number of PCI Channels	0
	Number of LIN Channels	0
	Number of Ethernet Channels	0
	Height	1.05mm
	Dimensions	7 x 7 x 1.05mm
	Pulse Width Modulation	0
	Width	7mm

	選取全部
	品牌 Microchip
	Family Name ATmega
	Package Type TQFP
	Mounting Type Surface Mount
	Pin Count 48
	Device Core AVR
	Data Bus Width 8bit
	Program Memory Size 48 kB
	Maximum Frequency 20MHz
	RAM Size 6 kB
	USB Channels 0
	Number of PWM Units 0
	Number of SPI Channels 1
	Number of UART Channels 4
	Typical Operating Supply Voltage 1.8 → 5.5 V
	Number of I2C Channels 1
	Number of CAN Channels 0
	Number of USART Channels 4
	Maximum Operating Temperature +125 °C
	Program Memory Type Flash
	Number of ADC Units 1
	Length 7mm
	ADCs 16 x 10 bit
	Maximum Number of Ethernet Channels 0
	Instruction Set Architecture RISC
	Minimum Operating Temperature -40 °C
	Number of PCI Channels 0
	Number of LIN Channels 0
	Number of Ethernet Channels 0
	Height 1.05mm
	Dimensions 7 x 7 x 1.05mm
	Pulse Width Modulation 0
	Width 7mm

Datasheet ATMEGA4809-AU

The ATmega4809 is a microcontroller featuring the 8-bit AVR® processor with hardware multiplier - running at up to 20MHz and with up to 48 KB Flash, 6 KB SRAM and 256 bytes of EEPROM in 48-pin packages. The series uses the latest Core Independent Peripherals with low power features. Including Event System, intelligent analog and advanced peripherals.

Hardware multiplier

Three sleep modes

Idle

Standby

Power Down

Event System

Watchdog Timer (WDT)

Power-On Reset (POR)

Brown-Out Detection (BOD)

Single pin programming and debugging interface (UPDI)

16 Channel 10-bit ADC with Voltage Reference

Analog Comparator (AC)

Configurable Custom Logic (CCL)

5x 16-bit Timer (TCA / TCB)

Cyclical Redundancy Check (CRC/SCAN)

SPI / I2C / USART
