產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	STMicroelectronics
	Family Name	STM32L0
	Package Type	TSSOP
	Mounting Type	Surface Mount
	Pin Count	20
	Device Core	ARM Cortex M0+
	Data Bus Width	32bit
	Program Memory Size	16 kB
	Maximum Frequency	32MHz
	RAM Size	128 kB
	Number of SPI Channels	1
	Typical Operating Supply Voltage	1.8 → 3.6 V
	Number of USART Channels	1
	Number of UART Channels	1
	Number of I2C Channels	1
	Number of ADC Units	1
	Program Memory Type	Flash
	Maximum Operating Temperature	+85 °C
	Length	6.6mm
	ADCs	7 x 12 bit
	Minimum Operating Temperature	-40 °C
	Height	1.05mm
	Instruction Set Architecture	RISC
	Width	4.5mm
	Dimensions	6.6 x 4.5 x 1.05mm

	選取全部
	品牌 STMicroelectronics
	Family Name STM32L0
	Package Type TSSOP
	Mounting Type Surface Mount
	Pin Count 20
	Device Core ARM Cortex M0+
	Data Bus Width 32bit
	Program Memory Size 16 kB
	Maximum Frequency 32MHz
	RAM Size 128 kB
	Number of SPI Channels 1
	Typical Operating Supply Voltage 1.8 → 3.6 V
	Number of USART Channels 1
	Number of UART Channels 1
	Number of I2C Channels 1
	Number of ADC Units 1
	Program Memory Type Flash
	Maximum Operating Temperature +85 °C
	Length 6.6mm
	ADCs 7 x 12 bit
	Minimum Operating Temperature -40 °C
	Height 1.05mm
	Instruction Set Architecture RISC
	Width 4.5mm
	Dimensions 6.6 x 4.5 x 1.05mm

STM32L010F4P6 Datasheet

COO (Country of Origin):: PH

Ultra-low-power platform
1.8 V to 3.6 V power supply
–40 to 85 °C temperature range
0.23 μA Standby mode (2 wakeup pins)
0.29 μA Stop mode (16 wakeup lines)
0.54 μA Stop mode + RTC + 2-Kbyte RAM retention
Down to 76 μA/MHz in Run mode
5 μs wakeup time (from Flash memory)
41 μA 12-bit ADC conversion at 10 ksps
Core: Arm® 32-bit Cortex®-M0+
From 32 kHz to 32 MHz
0.95 DMIPS/MHz
Reset and supply management
Ultra-low-power BOR (brownout reset) with 5 selectable thresholds
Ultra-low-power POR/PDR
Clock sources
0 to 32 MHz external clock
32 kHz oscillator for RTC with calibration
High-speed internal 16 MHz factory-trimmed RC (±1%)
Internal low-power 37 kHz RC
Internal multispeed low-power 65 kHz to 4.2 MHz RC
PLL for CPU clock
Pre-programmed bootloader
USART, SPI supported
Development support
Serial wire debug supported
Up to 26 fast I/Os (23 I/Os 5-Volt tolerant)
Memories
16-Kbyte Flash memory
2-Kbyte RAM
128 bytes of data EEPROM
20-byte backup register
Sector protection against R/W operation

單位	每單位	每管*
74 - 296	HK$8.111	HK$600.21
370 +	HK$7.949	HK$588.23

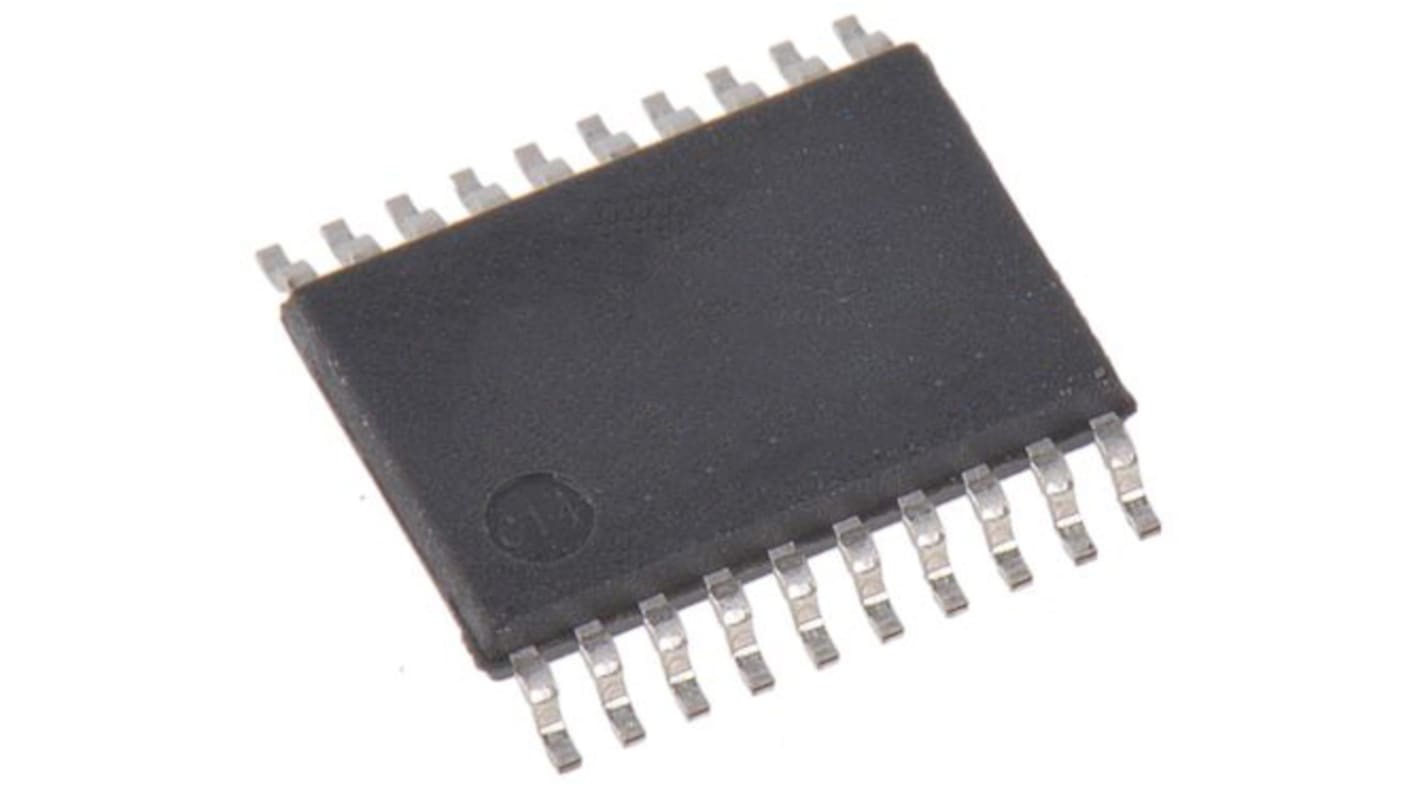

STMicroelectronics, 32bit ARM Cortex M0+, STM32L0 Microcontroller, 32MHz, 16 kB Flash, 20-Pin TSSOP
