Microchip, 16 bit dsPIC, dsPIC30F Microcontroller, 15 MHz, 12kB FLASH, 28-Pin PDIP
- RS庫存編號:
- 197-6083P
- 製造零件編號:
- DSPIC30F2020-30I/SP
- 製造商:
- Microchip

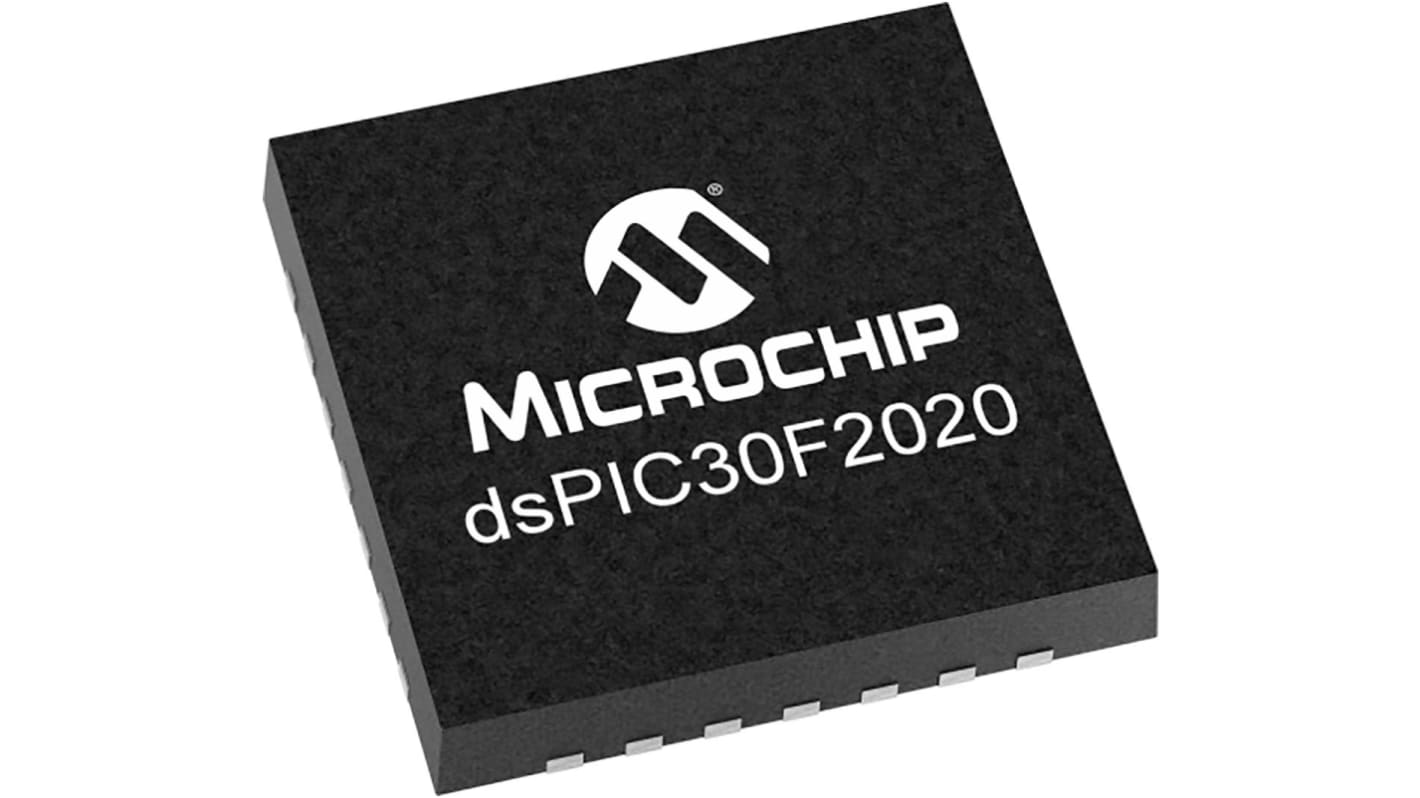

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計 4 件 (以管提供)*
HK$260.00
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 18 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 4 - 6 | HK$65.00 |
| 8 + | HK$63.70 |
* 參考價格
- RS庫存編號:
- 197-6083P
- 製造零件編號:
- DSPIC30F2020-30I/SP
- 製造商:
- Microchip
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Microchip | |
| Product Type | Microcontroller | |
| Series | dsPIC30F | |
| Package Type | PDIP | |
| Mount Type | Surface | |
| Pin Count | 28 | |
| Device Core | dsPIC | |
| Data Bus Width | 16bit | |
| Program Memory Size | 12kB | |
| Interface Type | IPMI, SPI | |
| Maximum Clock Frequency | 15MHz | |
| DACs | 10 Bit | |
| RAM Size | 500bit | |
| Maximum Supply Voltage | 5.5V | |
| Analogue Comparators | 4 | |
| Number of Programmable I/Os | 46 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 34.7mm | |
| Width | 8.26 mm | |
| Standards/Approvals | RoHS | |
| Height | 3.43mm | |
| Minimum Supply Voltage | 3V | |
| Number of Timers | 3 | |
| Program Memory Type | FLASH | |
| Automotive Standard | No | |
| Instruction Set Architecture | RISC | |
| ADCs | 8 x 10 Bit | |
| 選取全部 | ||
|---|---|---|
品牌 Microchip | ||
Product Type Microcontroller | ||
Series dsPIC30F | ||
Package Type PDIP | ||
Mount Type Surface | ||
Pin Count 28 | ||
Device Core dsPIC | ||
Data Bus Width 16bit | ||
Program Memory Size 12kB | ||
Interface Type IPMI, SPI | ||
Maximum Clock Frequency 15MHz | ||
DACs 10 Bit | ||
RAM Size 500bit | ||
Maximum Supply Voltage 5.5V | ||
Analogue Comparators 4 | ||
Number of Programmable I/Os 46 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 34.7mm | ||
Width 8.26 mm | ||
Standards/Approvals RoHS | ||
Height 3.43mm | ||
Minimum Supply Voltage 3V | ||
Number of Timers 3 | ||
Program Memory Type FLASH | ||
Automotive Standard No | ||
Instruction Set Architecture RISC | ||
ADCs 8 x 10 Bit | ||
- COO (Country of Origin):
- TH
The dsPIC30F SMPS & Digital Power Conversion 16-bit Digital Signal Controller offer features supporting common, multi-loop digital switch-mode power supplies (SMPS) and other digital power-conversion applications like DC to DC Converters, AC to DC Converters, Uninterruptible power supply (UPS), Power Factor Correction (PFC), Inverters, Embedded Power-Supply Controllers, Arc Fault Detection, Digital Lighting, Circuit Breakers etc.
30 MIPS Max. CPU Speed
Modified Harvard architecture
C Compiler optimized instruction set architecture
Modulo and Bit-Reversed modes
Two 40-bit wide accumulators with optional saturation logic
High-current sink/source I/O pins: 25 mA/25 mA
Three 16-bit timers/counters – option to pair up 16-bit timers into 32-bit timer modules
One 16-bit Capture input functions
Two 16-bit Compare/PWM output functions
