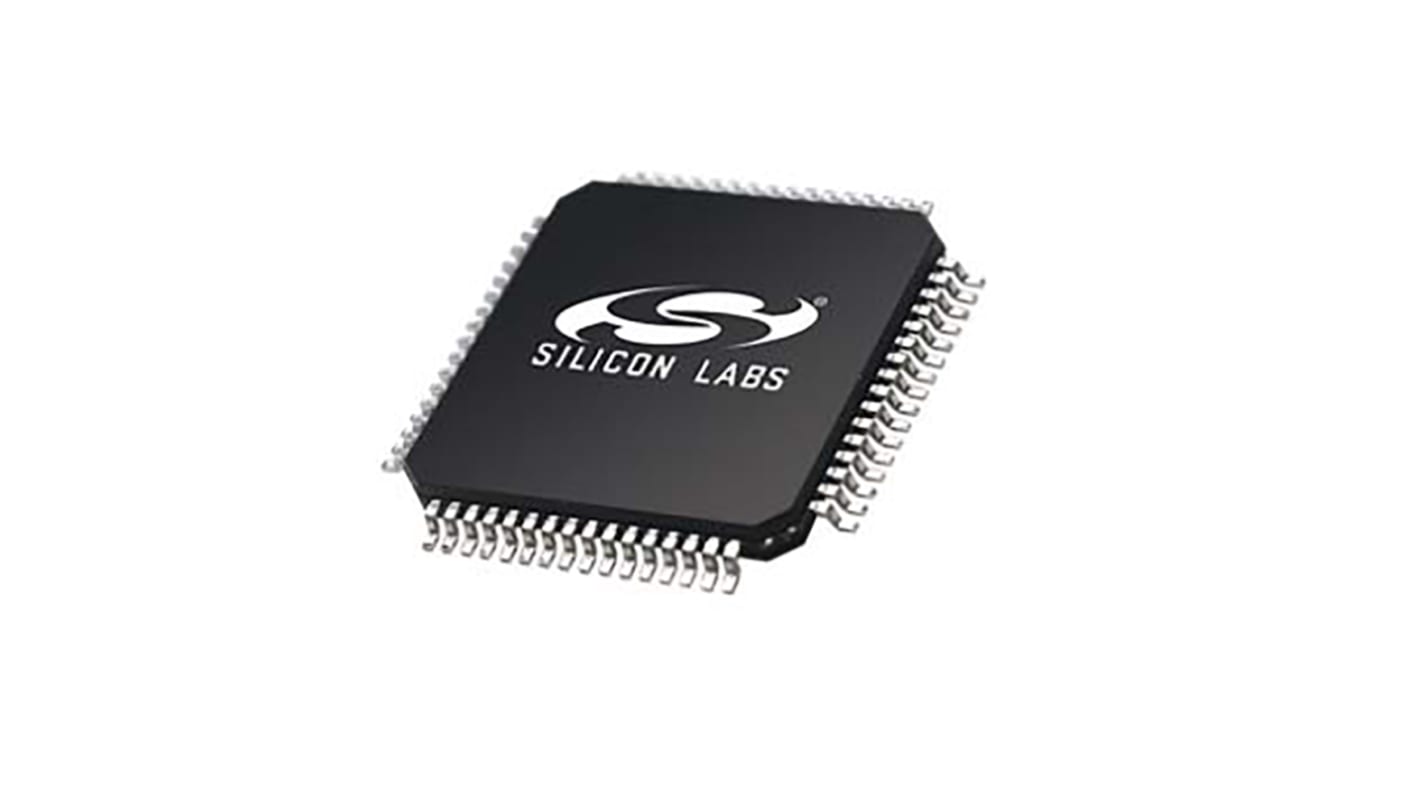

Silicon Labs, 32 bit ARM Cortex M3, EFM32 Leopard Gecko Microcontroller, 48 MHz, 256kB FLASH, 64-Pin TQFP

查看所有Microcontrollers
暫時無法供應
抱歉，我們不知道何時會到貨。
RS庫存編號:
198-4541
製造零件編號:
EFM32LG232F256G-F-QFP64
製造商:
Silicon Labs
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Silicon Labs

Series

EFM32 Leopard Gecko

Product Type

Microcontroller

Package Type

TQFP

Mount Type

Surface

Pin Count

64

Device Core

ARM Cortex M3

Data Bus Width

32bit

Interface Type

USART, UART, I2C, I2S, SPI, USB 2.0

Program Memory Size

256kB

Maximum Clock Frequency

48MHz

RAM Size

32kB

Maximum Supply Voltage

3.8V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

USB 2.0

DACs

12 bit

Number of Programmable I/Os

93

Analogue Comparators

2

Minimum Supply Voltage

1.98V

Instruction Set Architecture

ARM Cortex M3

Automotive Standard

No

ADCs

12 bit

Program Memory Type

FLASH

Number of Timers

10

The Silicon Labs EFM32LG series 64 pin microcontroller offers unmatched performance and ultra-low power consumption in both active and sleep modes. A 32-bit ARM CortexM3 processor making it perfect for battery-powered systems and systems with high-performance, low-energy requirements.

It performs ultra-low power operation

0.65 μA current in Stop (EM3), with brown-out detection and RAM retention

63 μA/MHz in EM1

211 μA/MHz in Run mode (EM0)

It has fast wake-up time of 2 μs

Hardware cryptography (AES)

32 kB of RAM used
