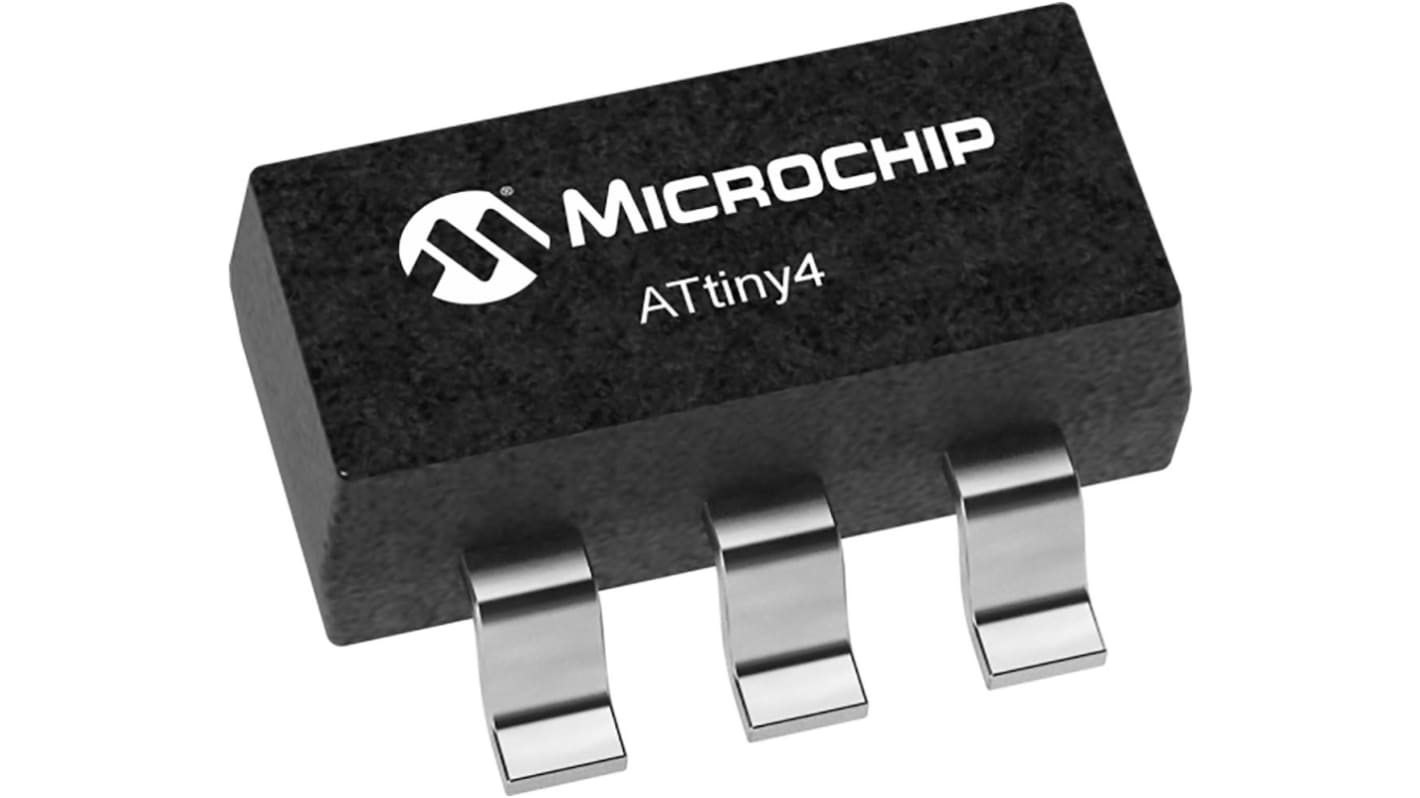

Name: Microchip, 8 bit AVR, ATTINY4 Microcontroller, 20 MHz, 8kB FLASH, 6-Pin 6ST1
Brand: Microchip
SKU: 199-5409
Price: 3.26 HKD
Availability: BackOrder

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Series	ATTINY4
	Product Type	Microcontroller
	Package Type	6ST1
	Mount Type	Surface
	Pin Count	6
	Device Core	AVR
	Data Bus Width	8bit
	Interface Type	SPI
	Program Memory Size	8kB
	Maximum Clock Frequency	20MHz
	RAM Size	32bit
	Maximum Supply Voltage	5.5V
	Analogue Comparators	1
	Minimum Operating Temperature	-40°C
	DACs	1 x 8 Bit
	Number of Programmable I/Os	4
	Maximum Operating Temperature	85°C
	Height	1.3mm
	Width	1.75 mm
	Standards/Approvals	No
	Length	1.6mm
	Minimum Supply Voltage	1.8V
	Instruction Set Architecture	RISC
	Number of Timers	1
	Program Memory Type	FLASH
	ADCs	4 x 8 Bit
	Automotive Standard	No

	選取全部
	品牌 Microchip
	Series ATTINY4
	Product Type Microcontroller
	Package Type 6ST1
	Mount Type Surface
	Pin Count 6
	Device Core AVR
	Data Bus Width 8bit
	Interface Type SPI
	Program Memory Size 8kB
	Maximum Clock Frequency 20MHz
	RAM Size 32bit
	Maximum Supply Voltage 5.5V
	Analogue Comparators 1
	Minimum Operating Temperature -40°C
	DACs 1 x 8 Bit
	Number of Programmable I/Os 4
	Maximum Operating Temperature 85°C
	Height 1.3mm
	Width 1.75 mm
	Standards/Approvals No
	Length 1.6mm
	Minimum Supply Voltage 1.8V
	Instruction Set Architecture RISC
	Number of Timers 1
	Program Memory Type FLASH
	ADCs 4 x 8 Bit
	Automotive Standard No

Datasheet - ATTINY4-TSHR

The Microchip ATtiny4 8-bit microcontroller is based AVR® RISC architecture. It operates on 1.8V to 5.5V voltage range. This microcontroller features 4KB of ISP Flash, 256B EEPROM, 256B SRAM, 12 general purpose I/O lines, 32 general purpose working registers, an 8-bit timer/counter with two PWM channels, a 16-bit timer/counter with two PWM channels, internal and external interrupts, an 8-channel 10-bit A/D converter, a programmable gain stage (1x, 20x) for 12 differential ADC channel pairs, programmable watchdog timer with internal oscillator, an internal calibrated oscillator, and three software selectable power saving modes.

Up to 12MIPS Throughput at 12MHz

Flash Write/Erase Cycles of 10,000

Data Retention of 20 Years at 85°C / 100 Years at 25°C

QTouch® Library Support for Capacitive Touch Sensing (1 Channel)

One 16-bit Timer/Counter with Prescaler and Two PWM Channels

Programmable Watchdog Timer with Separate On-chip Oscillator

4-channel, 8-bit Analog to Digital Converter (ATtiny5/10, only)

On-chip Analog Comparator

External and Internal Interrupt Sources

Low Power Idle, ADC Noise Reduction, and Power-down Modes

Enhanced Power-on Reset Circuit

Programmable Supply Voltage Level Monitor with Interrupt and Reset

Internal Calibrated Oscillator

Temperature range between -40°C to 125°C

6-pin SOT and 8-pad UDFN package

單位	每單位	每卷*
4500 - 18000	HK$3.262	HK$14,679.00
22500 +	HK$3.197	HK$14,386.50

Microchip, 8 bit AVR, ATTINY4 Microcontroller, 20 MHz, 8kB FLASH, 6-Pin 6ST1
