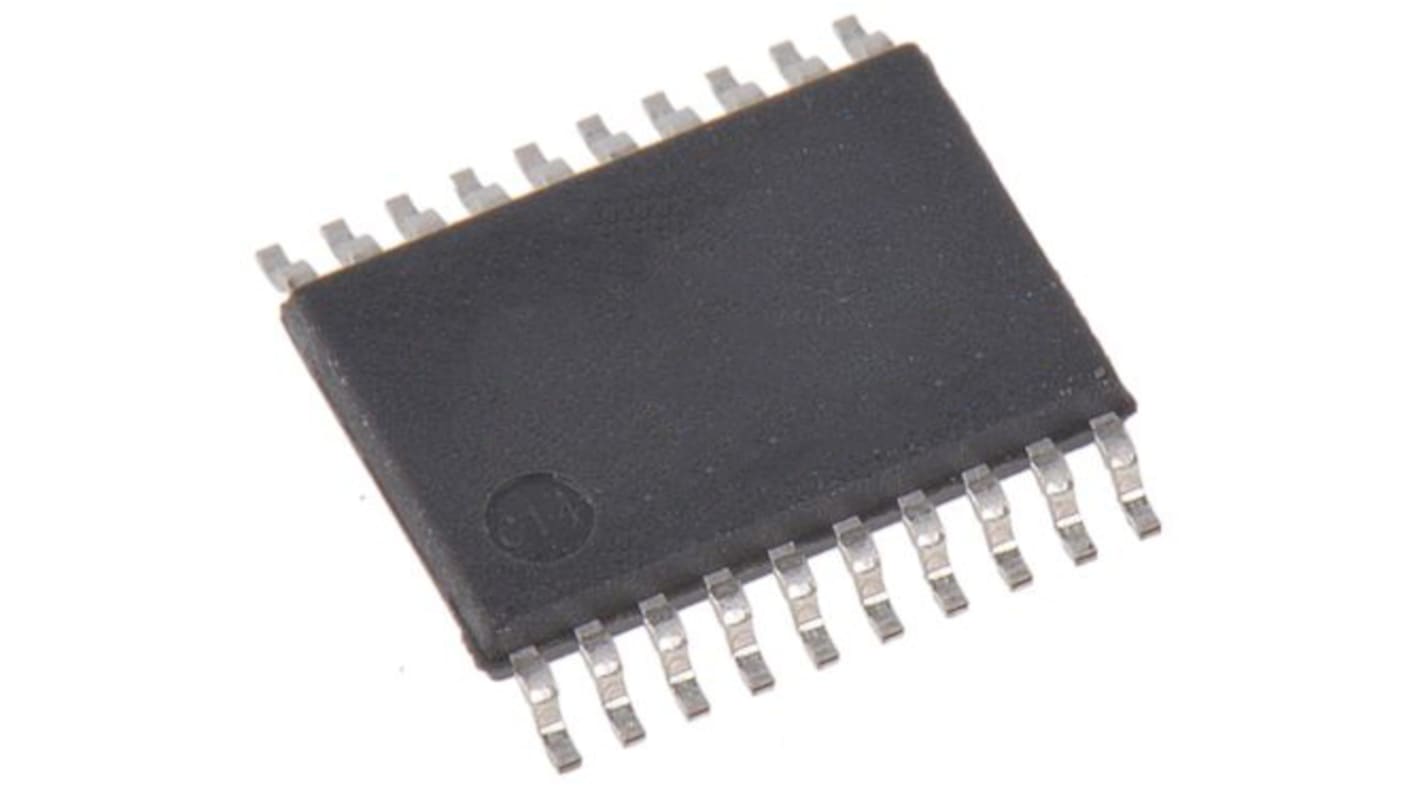

Renesas Electronics, 8bit RL78, RL78/G1N Microcontroller, 20MHz, 8 kB Flash, 20-Pin TSSOP

查看所有Microcontrollers
可享批量折扣

小計（1 托盤，共 240 件）*

HK$1,453.92

Add to Basket
選擇或輸入數量
暫時缺貨
  • 從 2026年3月18日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
每托盤*
240 - 240HK$6.058HK$1,453.92
480 - 720HK$5.906HK$1,417.44
960 +HK$5.788HK$1,389.12

* 參考價格

RS庫存編號:
210-4908
製造零件編號:
R5F11Y68ASM#30
製造商:
Renesas Electronics
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Renesas Electronics

Family Name

RL78/G1N

Package Type

TSSOP

Mounting Type

Surface Mount

Pin Count

20

Device Core

RL78

Data Bus Width

8bit

Program Memory Size

8 kB

Maximum Frequency

20MHz

RAM Size

1 kB

Typical Operating Supply Voltage

2 → 5.5 V

Number of USART Channels

0

Number of UART Channels

2

Maximum Number of Ethernet Channels

0

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+85 °C

Height

1.20mm

Width

6.40mm

Dimensions

6.50 x 6.40 x 1.20mm

ADCs

8 x 10 bit

Length

6.50mm

Number of Ethernet Channels

0

Number of PCI Channels

0

Program Memory Type

Flash

Number of LIN Channels

0

Number of ADC Units

1

The Renesas Electronics RL78/G1N microcontroller has a small pin-count 20-pin package, it is an 8-bit general-purpose microcontroller equipped with large current output terminals for driving LEDs. It allows direct drive of 8-segment 6-digit high brightness LEDs. It is suitable for small appliances, simple lighting fixtures and LED displays for portable batteries, etc.

CISC architecture with 3-stage pipeline
Minimum instruction execution time: Can be changed from high speed (0.05 μs: @ 20 MHz operation with high-speed on-chip oscillator) to low speed (1.0 μs: @ 1 MHz operation)
Address space: 1 MB
General-purpose registers: 8-bit register x 8
On-chip RAM: 512 B to 1 KB

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
