製造零件編號

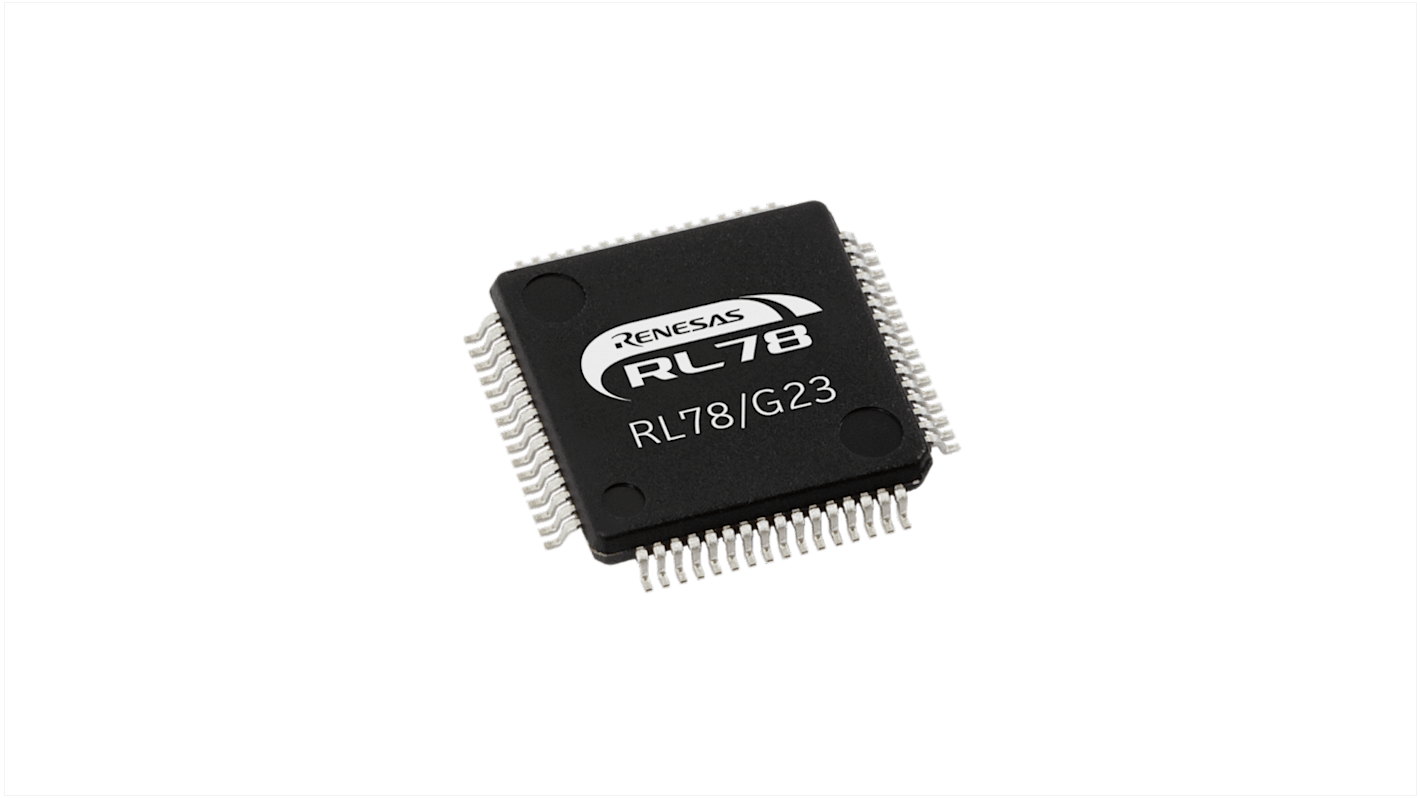

Renesas Electronics, 16bit RL78, RL78/G23 Microcontroller, 32MHz, 128 kB Flash, 64-Pin LFQFP

RS庫存編號:: 217-4404
製造零件編號:: R7F100GLG2DFB#AA0
製造商:: Renesas Electronics

Renesas Electronics, 16bit RL78, RL78/G23 Microcontroller, 32MHz, 128 kB Flash, 64-Pin LFQFP

可享批量折扣

小計（1 托盤，共 90 件）*

HK$1,503.99

訂單超過 HK$250.00 免費送貨

暫時缺貨

從 2026年3月17日發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每托盤*
90 - 90	HK$16.711	HK$1,503.99
180 - 270	HK$16.293	HK$1,466.37
360 +	HK$16.042	HK$1,443.78

* 參考價格

RS庫存編號:: 217-4404
製造零件編號:: R7F100GLG2DFB#AA0
製造商:: Renesas Electronics

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Renesas Electronics
	Family Name	RL78/G23
	Package Type	LFQFP
	Mounting Type	Surface Mount
	Pin Count	64
	Device Core	RL78
	Data Bus Width	16bit
	Program Memory Size	128 kB
	Maximum Frequency	32MHz
	RAM Size	16 kB
	Number of SPI Channels	6
	Typical Operating Supply Voltage	1.6 → 5.5 V
	Number of UART Channels	4
	Number of I2C Channels	6
	Length	10mm
	Maximum Operating Temperature	+85 °C
	Program Memory Type	Flash
	Number of ADC Units	3
	Height	1.7mm
	ADCs	19 x 8/10/12 bit
	Width	10mm
	Maximum Number of Ethernet Channels	0
	Minimum Operating Temperature	-40 °C
	Dimensions	10 x 10 x 1.7mm

	選取全部
	品牌 Renesas Electronics
	Family Name RL78/G23
	Package Type LFQFP
	Mounting Type Surface Mount
	Pin Count 64
	Device Core RL78
	Data Bus Width 16bit
	Program Memory Size 128 kB
	Maximum Frequency 32MHz
	RAM Size 16 kB
	Number of SPI Channels 6
	Typical Operating Supply Voltage 1.6 → 5.5 V
	Number of UART Channels 4
	Number of I2C Channels 6
	Length 10mm
	Maximum Operating Temperature +85 °C
	Program Memory Type Flash
	Number of ADC Units 3
	Height 1.7mm
	ADCs 19 x 8/10/12 bit
	Width 10mm
	Maximum Number of Ethernet Channels 0
	Minimum Operating Temperature -40 °C
	Dimensions 10 x 10 x 1.7mm

Datasheet - RL78

The RL78 8/16-bit microcontrollers (MCUs) greatly improve power efficiency with industry-leading low power consumption at 45.5μA/MHz consumption during normal operation and 0.57μA/MHz during clock operation. Built-in features such as a high-precision (±1%) high-speed on-chip oscillator, background operation data flash capable of 1 million rewrites, temperature sensor, and interface ports for multiple power supplies help reduce system costs and size.

No need to wake up CPU for receiving data
Unique SNOOZE Mode allows some peripherals, i.e., ADC and UART operation whilst in standby modes
Achieve 1/10th of the power consumption

SNOOZE mode uses 0.5mA vs. 5mA in RUN mode (ADC)
HALT mode disables CPU operation saving as much as 80% of total MCU current, whilst allowing fast CPU enable time
STOP mode achieves lowest power consumption by disabling more CPU functions

Renesas Electronics, 16bit RL78, RL78/G23 Microcontroller, 32MHz, 128 kB Flash, 64-Pin LFQFP

訂單超過 HK$250.00 免費送貨

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
