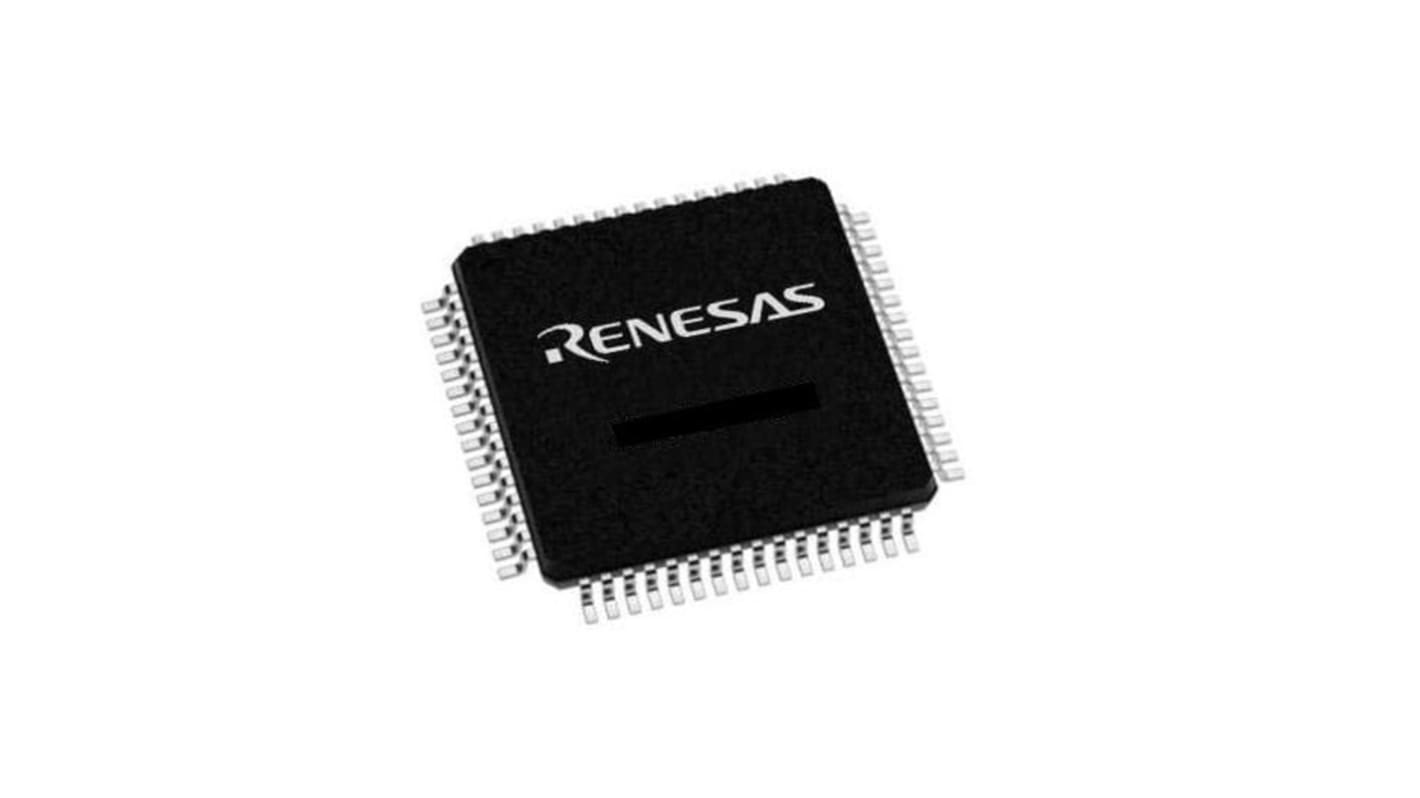

Renesas Electronics, 32bit RXv2, RX72T Microcontroller, 200MHz, 1 MB Flash, 144-Pin LFQFP
- RS庫存編號:
- 215-0987
- 製造零件編號:
- R5F572TKCDFB#30
- 製造商:
- Renesas Electronics
可享批量折扣
小計（1 件）*
HK$91.40
訂單超過 HK$250.00 免費送貨
最後的 RS 庫存
- 最終 200 個，準備發貨
單位 | 每單位 |
|---|---|
| 1 - 14 | HK$91.40 |
| 15 - 29 | HK$90.00 |
| 30 + | HK$88.00 |
* 參考價格
- RS庫存編號:
- 215-0987
- 製造零件編號:
- R5F572TKCDFB#30
- 製造商:
- Renesas Electronics
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Renesas Electronics | |
| Family Name | RX72T | |
| Package Type | LFQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 144 | |
| Device Core | RXv2 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 1 MB | |
| Maximum Frequency | 200MHz | |
| RAM Size | 128 kB | |
| Number of SPI Channels | 8 | |
| Number of I2C Channels | 8 | |
| Number of CAN Channels | 1 | |
| Number of UART Channels | 7 | |
| Typical Operating Supply Voltage | 2.7 → 5.5 V | |
| Number of USART Channels | 0 | |
| Maximum Number of Ethernet Channels | 0 | |
| Number of LIN Channels | 0 | |
| Height | 1.4mm | |
| Maximum Operating Temperature | +85 °C | |
| Dimensions | 20 x 20 x 1.4mm | |
| Width | 20mm | |
| Number of ADC Units | 1 | |
| Length | 20mm | |
| ADCs | 30 x 12 bit | |
| Number of Ethernet Channels | 0 | |
| Minimum Operating Temperature | -40 °C | |
| Program Memory Type | Flash | |
| 選取全部 | ||
|---|---|---|
品牌 Renesas Electronics | ||
Family Name RX72T | ||
Package Type LFQFP | ||
Mounting Type Surface Mount | ||
Pin Count 144 | ||
Device Core RXv2 | ||
Data Bus Width 32bit | ||
Program Memory Size 1 MB | ||
Maximum Frequency 200MHz | ||
RAM Size 128 kB | ||
Number of SPI Channels 8 | ||
Number of I2C Channels 8 | ||
Number of CAN Channels 1 | ||
Number of UART Channels 7 | ||
Typical Operating Supply Voltage 2.7 → 5.5 V | ||
Number of USART Channels 0 | ||
Maximum Number of Ethernet Channels 0 | ||
Number of LIN Channels 0 | ||
Height 1.4mm | ||
Maximum Operating Temperature +85 °C | ||
Dimensions 20 x 20 x 1.4mm | ||
Width 20mm | ||
Number of ADC Units 1 | ||
Length 20mm | ||
ADCs 30 x 12 bit | ||
Number of Ethernet Channels 0 | ||
Minimum Operating Temperature -40 °C | ||
Program Memory Type Flash | ||
The Renesas Electronics RX72T Group MCUs.
32-bit RXv3 CPU core
Low-power design and architecture
On-chip code flash memory
On-chip data flash memory
On-chip SRAM, no wait states
Low-power design and architecture
On-chip code flash memory
On-chip data flash memory
On-chip SRAM, no wait states
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
