STMicroelectronics, 32 bit ARM Cortex M0+, STM32G0B1KC Microcontroller, 64 MHz, 256kB FLASH, 32-Pin LQFP

RS庫存編號:: 228-3039
製造零件編號:: STM32G0B1KCT6
製造商:: STMicroelectronics

STMicroelectronics, 32 bit ARM Cortex M0+, STM32G0B1KC Microcontroller, 64 MHz, 256kB FLASH, 32-Pin LQFP

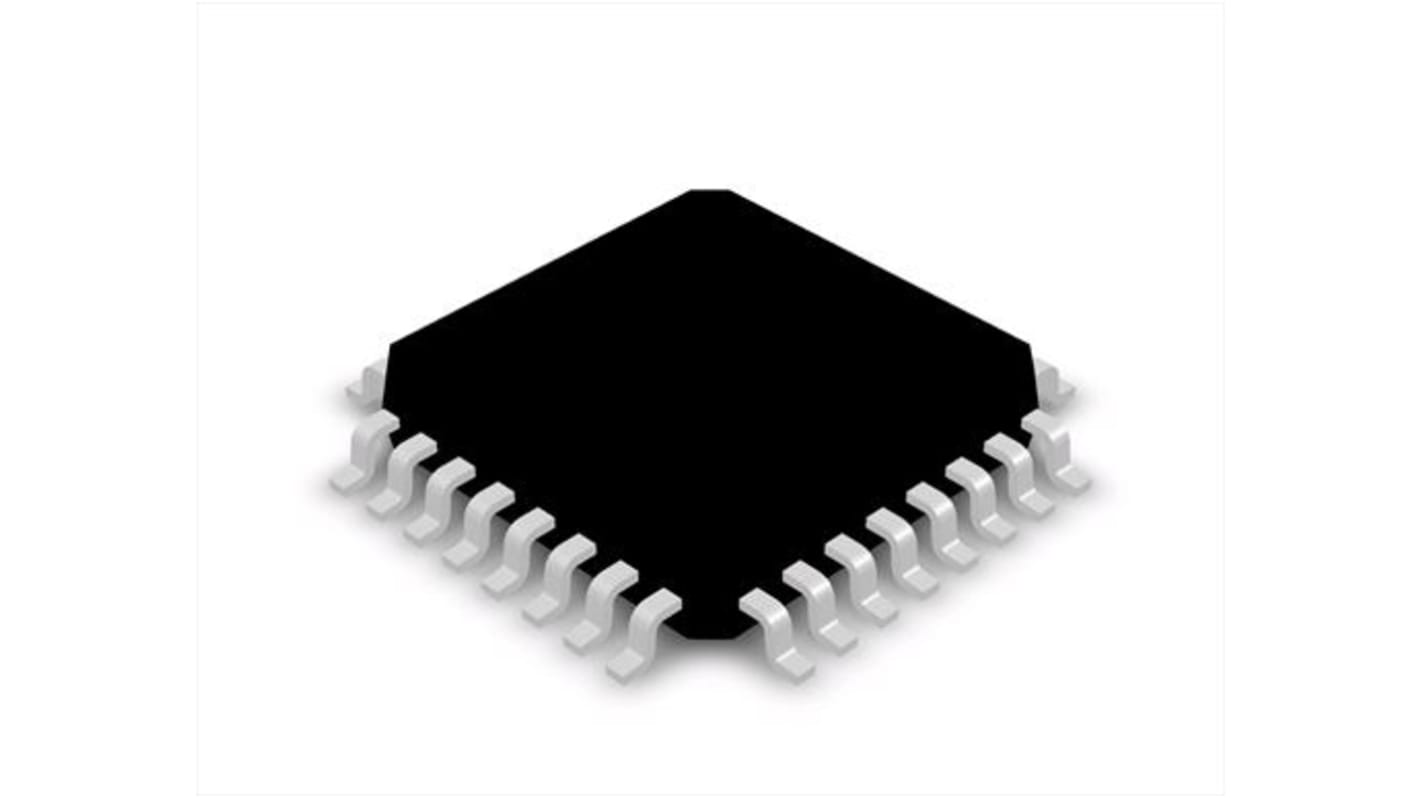

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

小計（1 托盤，共 250 件）*

HK$8,127.00

庫存資訊目前無法查詢

單位	每單位	每托盤*
250 - 500	HK$32.508	HK$8,127.00
750 - 1000	HK$31.857	HK$7,964.25
1250 +	HK$31.22	HK$7,805.00

* 參考價格

RS庫存編號:: 228-3039
製造零件編號:: STM32G0B1KCT6
製造商:: STMicroelectronics

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	STMicroelectronics
	Product Type	Microcontroller
	Series	STM32G0B1KC
	Package Type	LQFP
	Mount Type	Surface
	Pin Count	32
	Device Core	ARM Cortex M0+
	Data Bus Width	32bit
	Program Memory Size	256kB
	Maximum Clock Frequency	64MHz
	RAM Size	144kB
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	125°C
	Analogue Comparators	3
	Length	9mm
	Standards/Approvals	No
	Height	1.6mm
	Number of Programmable I/Os	94
	DACs	1 x 12 Bit
	Width	9 mm
	Minimum Supply Voltage	1.7V
	Number of Timers	15
	Instruction Set Architecture	RISC
	ADCs	1 x 12 Bit
	Automotive Standard	No
	Program Memory Type	FLASH

	選取全部
	品牌 STMicroelectronics
	Product Type Microcontroller
	Series STM32G0B1KC
	Package Type LQFP
	Mount Type Surface
	Pin Count 32
	Device Core ARM Cortex M0+
	Data Bus Width 32bit
	Program Memory Size 256kB
	Maximum Clock Frequency 64MHz
	RAM Size 144kB
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 125°C
	Analogue Comparators 3
	Length 9mm
	Standards/Approvals No
	Height 1.6mm
	Number of Programmable I/Os 94
	DACs 1 x 12 Bit
	Width 9 mm
	Minimum Supply Voltage 1.7V
	Number of Timers 15
	Instruction Set Architecture RISC
	ADCs 1 x 12 Bit
	Automotive Standard No
	Program Memory Type FLASH

Datasheet - STM32G0B1KCT6

The STMicroelectronics STM32G0B1xB/C/xE mainstream microcontrollers are based on high-performance Arm Cortex-M0+ 32-bit RISC core operating at up to 64 MHz frequency. Offering a high level of integration, they are suitable for a wide range of applications in consumer, industrial and appliance domains and ready for the Internet of Things (IoT) solutions.

USB 2.0 FS device (crystal-less) and host

controller

USB Type-C Power Delivery controller

Two FDCAN controllers

Development support: serial wire debug (SWD)

96-bit unique ID

STMicroelectronics, 32 bit ARM Cortex M0+, STM32G0B1KC Microcontroller, 64 MHz, 256kB FLASH, 32-Pin LQFP
