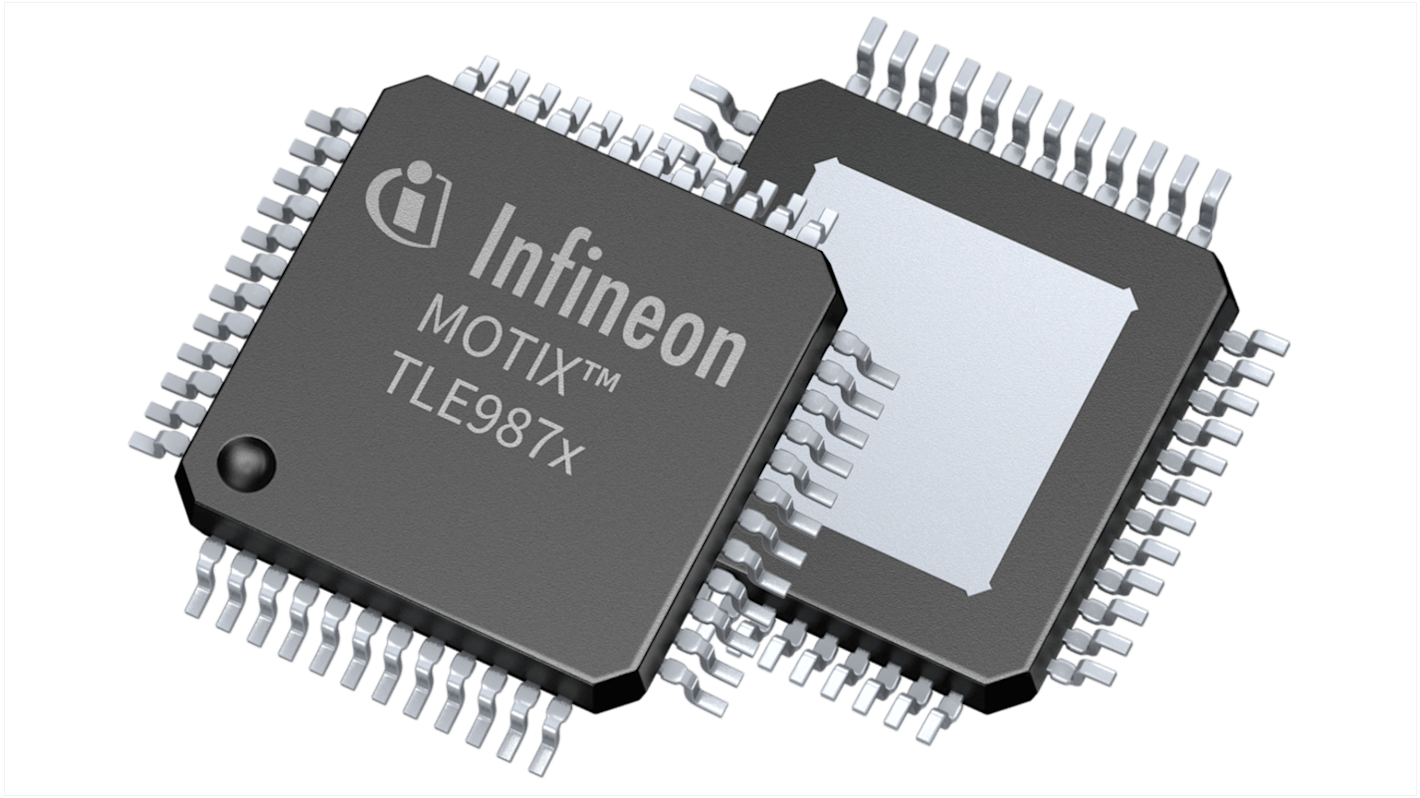

Infineon ARM Cortex M3 Microcontroller, 48-Pin TQFP

查看所有Microcontrollers
可享批量折扣

小計（1 件）*

HK$56.40

Add to Basket
選擇或輸入數量
有庫存
  • 2,448 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 - 9HK$56.40
10 - 99HK$48.80
100 - 249HK$45.90
250 - 499HK$42.10
500 +HK$40.30

* 參考價格

包裝方式：
RS庫存編號:
258-4160
製造零件編號:
TLE9877QTW40XUMA1
製造商:
Infineon
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Infineon

Package Type

TQFP

Mounting Type

Surface Mount

Pin Count

48

Device Core

ARM Cortex M3

The Infineon MOTIX is a single chip 3-Phase motor driver that integrates the industry standard Arm Cortex-M3 core, enabling the implementation of advanced motor control algorithms such as field-oriented control. It includes six fully integrated NFET drivers optimized to drive a 3-Phase motor via six external power NFETs, a charge pump enabling low voltage operation and programmable current along with current slope control for optimized EMC behaviour. Its peripheral set includes a current sensor, a successive approximation ADC synchronized with the capture and compare unit for PWM control and 16-bit timers. A LIN transceiver is also integrated to enable communication to the device along with a number of general purpose I/Os. It includes an on-chip linear voltage regulator to supply external loads.

Two Synchronous serial channel (SSC)

On-chip OSC and PLL for clock generation

One high voltage monitoring input with wake up functionality

High speed operational amplifier for motor current sensing via shunt
