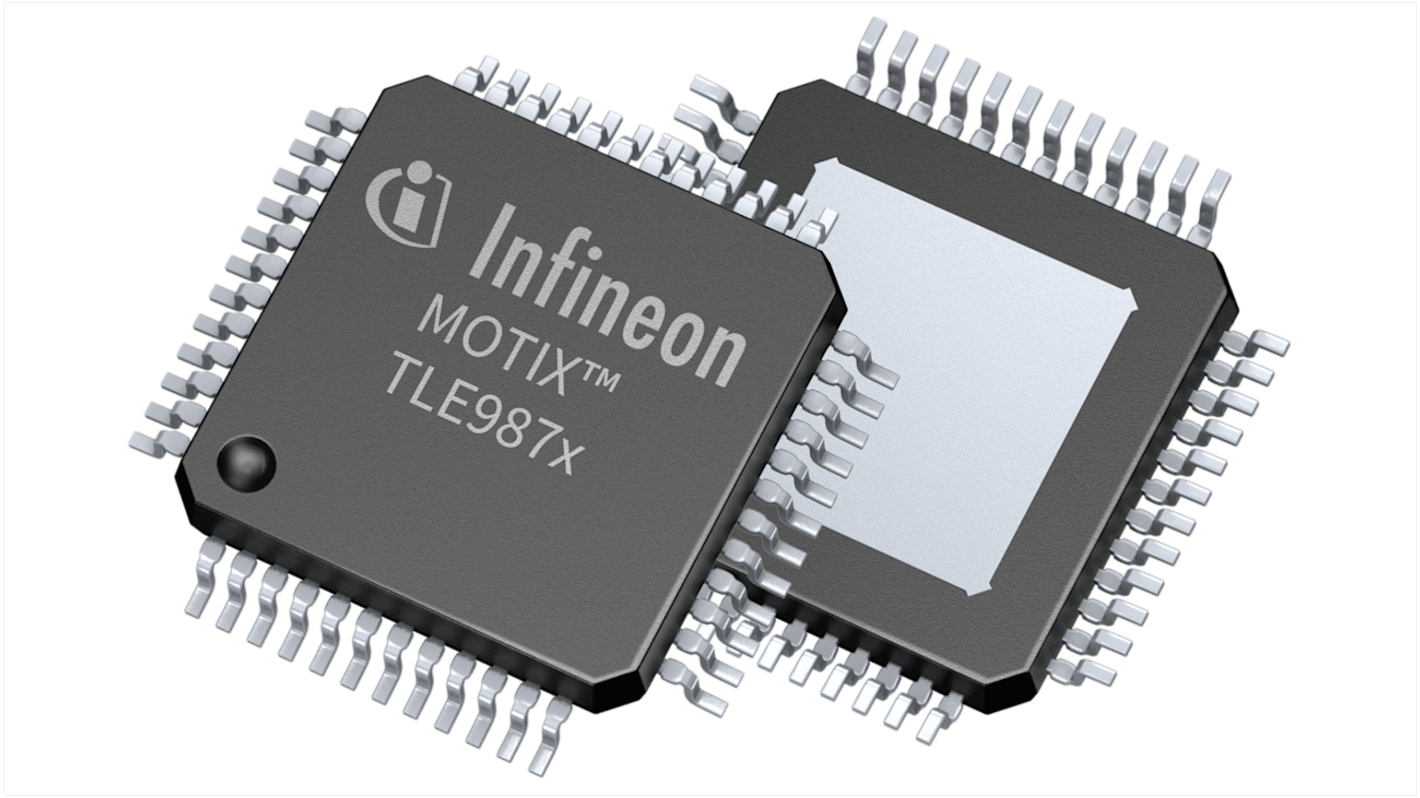

Name: Infineon, 32 bit ARM Cortex M3, TLE9877 Microcontroller, 40 MHz, 64kB FLASH, 48-Pin TQFP
Brand: Infineon
SKU: 258-4159
Price: 29.31 HKD
Availability: BackOrder

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Infineon
	Product Type	Microcontroller
	Series	TLE9877
	Package Type	TQFP
	Mount Type	Surface
	Pin Count	48
	Device Core	ARM Cortex M3
	Data Bus Width	32bit
	Program Memory Size	64kB
	Interface Type	LIN, PWM, SPI, SSC, UART, USART
	Maximum Clock Frequency	40MHz
	RAM Size	6kB
	Maximum Supply Voltage	28V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	175°C
	Length	7mm
	Standards/Approvals	RoHS
	Number of Programmable I/Os	10
	Height	1mm
	Maximum Expanded Memory Size	64kB
	Width	7 mm
	Minimum Supply Voltage	5.5V
	Instruction Set Architecture	Arm Cortex
	Program Memory Type	FLASH
	ADCs	10 bit
	Automotive Standard	AEC-Q100
	Number of Timers	16

	選取全部
	品牌 Infineon
	Product Type Microcontroller
	Series TLE9877
	Package Type TQFP
	Mount Type Surface
	Pin Count 48
	Device Core ARM Cortex M3
	Data Bus Width 32bit
	Program Memory Size 64kB
	Interface Type LIN, PWM, SPI, SSC, UART, USART
	Maximum Clock Frequency 40MHz
	RAM Size 6kB
	Maximum Supply Voltage 28V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 175°C
	Length 7mm
	Standards/Approvals RoHS
	Number of Programmable I/Os 10
	Height 1mm
	Maximum Expanded Memory Size 64kB
	Width 7 mm
	Minimum Supply Voltage 5.5V
	Instruction Set Architecture Arm Cortex
	Program Memory Type FLASH
	ADCs 10 bit
	Automotive Standard AEC-Q100
	Number of Timers 16

Datasheet - TLE9877QTW40XUMA1

The Infineon MOTIX is a single chip 3-Phase motor driver that integrates the industry standard Arm Cortex-M3 core, enabling the implementation of advanced motor control algorithms such as field-oriented control. It includes six fully integrated NFET drivers optimized to drive a 3-Phase motor via six external power NFETs, a charge pump enabling low voltage operation and programmable current along with current slope control for optimized EMC behaviour. Its peripheral set includes a current sensor, a successive approximation ADC synchronized with the capture and compare unit for PWM control and 16-bit timers. A LIN transceiver is also integrated to enable communication to the device along with a number of general purpose I/Os. It includes an on-chip linear voltage regulator to supply external loads.

Two Synchronous serial channel (SSC)

On-chip OSC and PLL for clock generation

One high voltage monitoring input with wake up functionality

High speed operational amplifier for motor current sensing via shunt

單位	每單位	每卷*
2500 - 2500	HK$29.307	HK$73,267.50
5000 - 5000	HK$28.721	HK$71,802.50
7500 +	HK$28.146	HK$70,365.00
