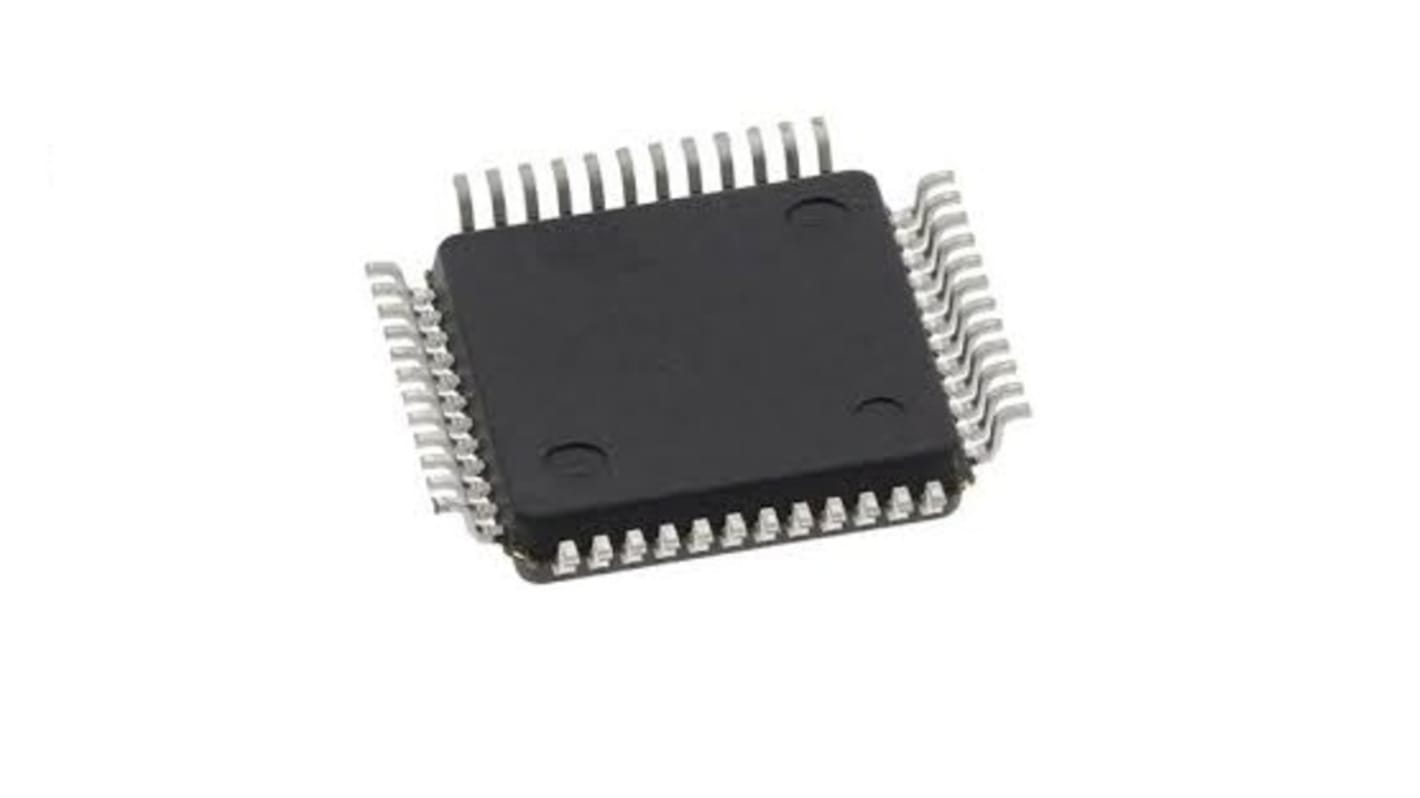

Renesas Electronics, 16bit RL78, RL78/G14 Microcontroller MCU, 32MHz, 512 kB Flash, 48-Pin LFQFP
- RS庫存編號:
- 261-6002
- 製造零件編號:
- R5F104GLAFB#30
- 製造商:
- Renesas Electronics
可享批量折扣
小計（1 包，共 2 件）*
HK$68.40
訂單超過 HK$250.00 免費送貨
有庫存
- 250 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每包* |
|---|---|---|
| 2 - 8 | HK$34.20 | HK$68.40 |
| 10 - 18 | HK$30.70 | HK$61.40 |
| 20 - 98 | HK$30.10 | HK$60.20 |
| 100 - 198 | HK$29.50 | HK$59.00 |
| 200 + | HK$28.90 | HK$57.80 |
* 參考價格
- RS庫存編號:
- 261-6002
- 製造零件編號:
- R5F104GLAFB#30
- 製造商:
- Renesas Electronics
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Renesas Electronics | |
| Family Name | RL78/G14 | |
| Package Type | LFQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 48 | |
| Device Core | RL78 | |
| Data Bus Width | 16bit | |
| Program Memory Size | 512 kB | |
| Maximum Frequency | 32MHz | |
| RAM Size | 48 kB | |
| USB Channels | 0 | |
| Number of SPI Channels | 6 | |
| Number of I2C Channels | 7 | |
| Number of UART Channels | 2 | |
| Number of CAN Channels | 0 | |
| Number of USART Channels | 0 | |
| Typical Operating Supply Voltage | 1.6 → 5.5 V | |
| Instruction Set Architecture | CISC | |
| Minimum Operating Temperature | -40 °C | |
| Program Memory Type | Flash | |
| Number of PCI Channels | 0 | |
| Maximum Operating Temperature | +85 °C | |
| Number of ADC Units | 1 | |
| Length | 7mm | |
| ADCs | 10 x 8/10 bit | |
| Maximum Number of Ethernet Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Number of LIN Channels | 0 | |
| Height | 1.7mm | |
| Width | 7mm | |
| Dimensions | 7 x 7 x 1.7mm | |
| 選取全部 | ||
|---|---|---|
品牌 Renesas Electronics | ||
Family Name RL78/G14 | ||
Package Type LFQFP | ||
Mounting Type Surface Mount | ||
Pin Count 48 | ||
Device Core RL78 | ||
Data Bus Width 16bit | ||
Program Memory Size 512 kB | ||
Maximum Frequency 32MHz | ||
RAM Size 48 kB | ||
USB Channels 0 | ||
Number of SPI Channels 6 | ||
Number of I2C Channels 7 | ||
Number of UART Channels 2 | ||
Number of CAN Channels 0 | ||
Number of USART Channels 0 | ||
Typical Operating Supply Voltage 1.6 → 5.5 V | ||
Instruction Set Architecture CISC | ||
Minimum Operating Temperature -40 °C | ||
Program Memory Type Flash | ||
Number of PCI Channels 0 | ||
Maximum Operating Temperature +85 °C | ||
Number of ADC Units 1 | ||
Length 7mm | ||
ADCs 10 x 8/10 bit | ||
Maximum Number of Ethernet Channels 0 | ||
Number of Ethernet Channels 0 | ||
Number of LIN Channels 0 | ||
Height 1.7mm | ||
Width 7mm | ||
Dimensions 7 x 7 x 1.7mm | ||
- COO (Country of Origin):
- CN
The Renesas R5F104GLAFB#30 is a 16-Bit microcontroller with a speed of 32 has a RL78 CPU core which consist of CISC architecture with 3-stage pipeline. It has low power consumption, high function general-purpose microcontroller suitable for motor control as well as industrial and metering applications.
CPU= RL78 (16-bit)
Max frequency= 32 MHz
Program memory= 512 KB Flash memory
Pin count= 48
Max frequency= 32 MHz
Program memory= 512 KB Flash memory
Pin count= 48
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
