製造零件編號

Zilog, 8bit Z8, Z8 Microcontroller, 12MHz, 1 kB EPROM, 18-Pin PDIP

RS庫存編號:: 660-0776
製造零件編號:: Z86E0412PSG1866
製造商:: Zilog

Zilog, 8bit Z8, Z8 Microcontroller, 12MHz, 1 kB EPROM, 18-Pin PDIP

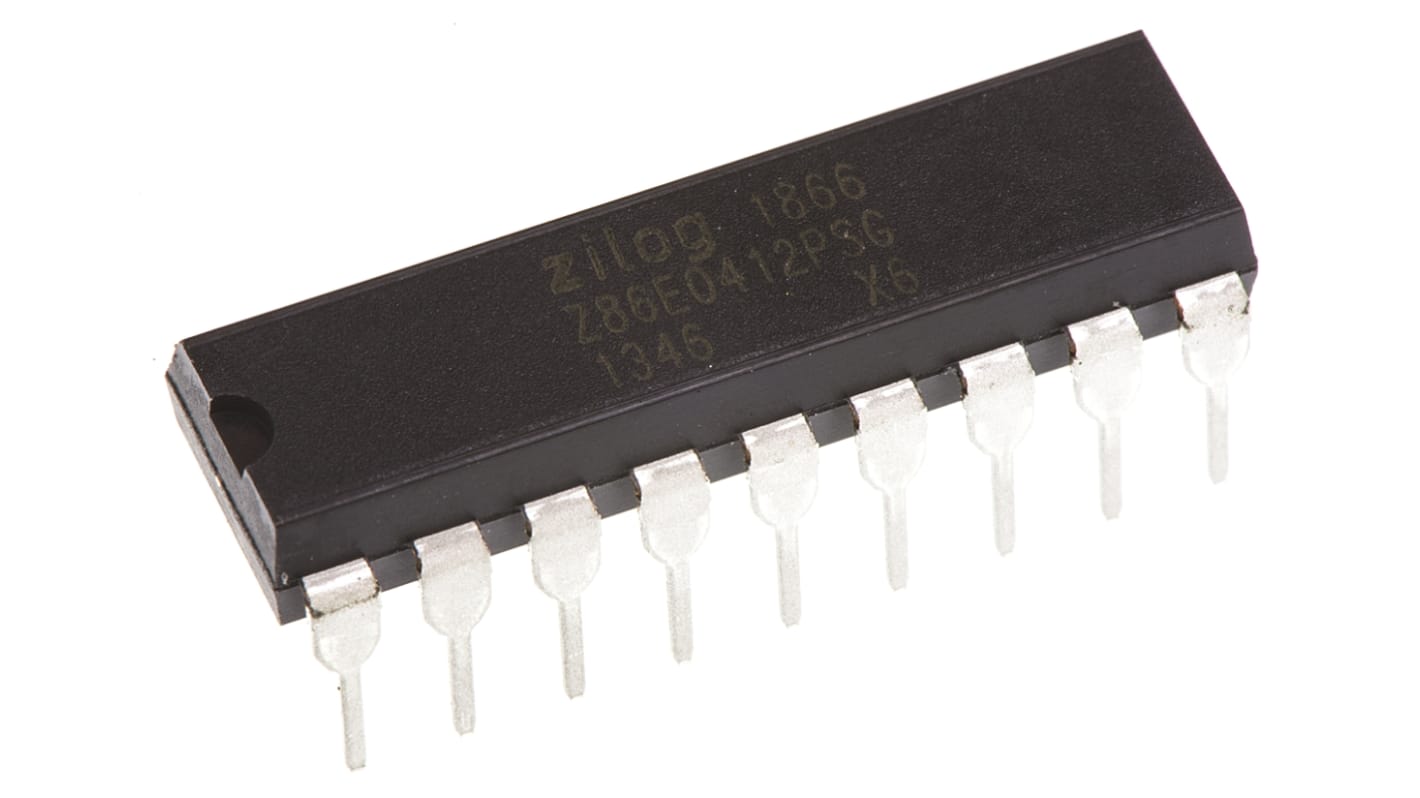

此圖片僅供參考，請參閲產品詳細資訊及規格

暫時無法供應

我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。

RS庫存編號:: 660-0776
製造零件編號:: Z86E0412PSG1866
製造商:: Zilog

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Zilog
	Family Name	Z8
	Package Type	PDIP
	Mounting Type	Through Hole
	Pin Count	18
	Device Core	Z8
	Data Bus Width	8bit
	Program Memory Size	1 kB
	Maximum Frequency	12MHz
	RAM Size	125 B
	USB Channels	0
	Number of SPI Channels	0
	Number of CAN Channels	0
	Number of USART Channels	0
	Typical Operating Supply Voltage	4.5 → 5.5 V
	Number of I2C Channels	0
	Number of UART Channels	0
	Length	23.37mm
	Width	6.48mm
	Instruction Set Architecture	CISC
	Number of LIN Channels	0
	Dimensions	23.37 x 6.48 x 3.43mm
	Minimum Operating Temperature	0 °C
	Program Memory Type	EPROM
	Number of PCI Channels	0
	Number of Ethernet Channels	0
	Height	3.43mm
	Maximum Operating Temperature	+70 °C

	選取全部
	品牌 Zilog
	Family Name Z8
	Package Type PDIP
	Mounting Type Through Hole
	Pin Count 18
	Device Core Z8
	Data Bus Width 8bit
	Program Memory Size 1 kB
	Maximum Frequency 12MHz
	RAM Size 125 B
	USB Channels 0
	Number of SPI Channels 0
	Number of CAN Channels 0
	Number of USART Channels 0
	Typical Operating Supply Voltage 4.5 → 5.5 V
	Number of I2C Channels 0
	Number of UART Channels 0
	Length 23.37mm
	Width 6.48mm
	Instruction Set Architecture CISC
	Number of LIN Channels 0
	Dimensions 23.37 x 6.48 x 3.43mm
	Minimum Operating Temperature 0 °C
	Program Memory Type EPROM
	Number of PCI Channels 0
	Number of Ethernet Channels 0
	Height 3.43mm
	Maximum Operating Temperature +70 °C

Datasheet

Zilog, 8bit Z8, Z8 Microcontroller, 12MHz, 1 kB EPROM, 18-Pin PDIP

Z8 Family Microcontrollers, Zilog
