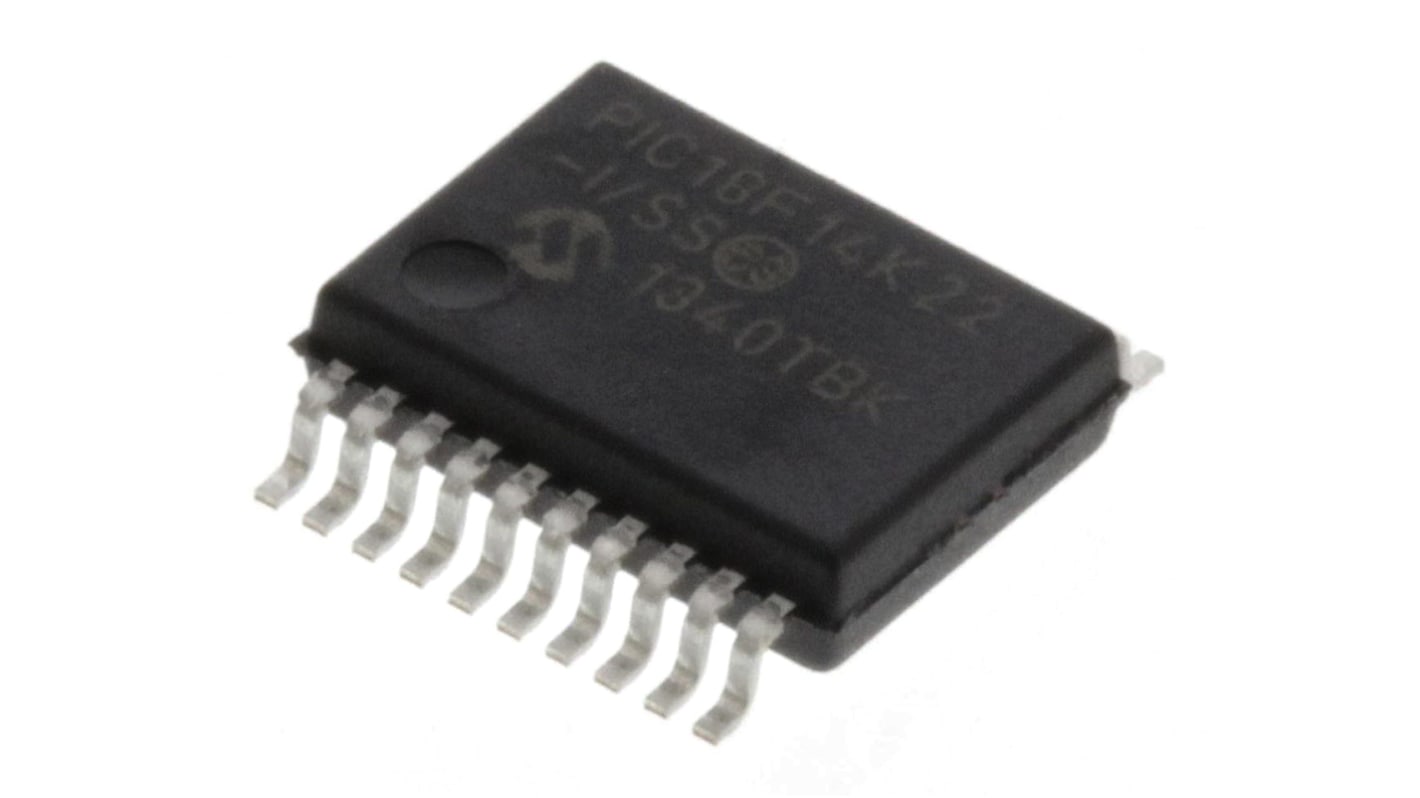

Microchip, 8bit PIC, PIC18F Microcontroller, 64MHz, 16 kB, 256 B Flash, 20-Pin SSOP

RS庫存編號:: 666-9863
製造零件編號:: PIC18F14K22-I/SS
製造商:: Microchip

Microchip, 8bit PIC, PIC18F Microcontroller, 64MHz, 16 kB, 256 B Flash, 20-Pin SSOP

可享批量折扣

小計（1 包，共 2 件）*

HK$35.30

訂單超過 HK$250.00 免費送貨

有庫存

14 件準備從其他地點送貨
加上 376 件從 2025年12月15日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每包*
2 - 16	HK$17.65	HK$35.30
18 - 32	HK$17.30	HK$34.60
34 +	HK$16.95	HK$33.90

* 參考價格

RS庫存編號:: 666-9863
製造零件編號:: PIC18F14K22-I/SS
製造商:: Microchip

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Family Name	PIC18F
	Package Type	SSOP
	Mounting Type	Surface Mount
	Pin Count	20
	Device Core	PIC
	Data Bus Width	8bit
	Program Memory Size	16 kB, 256 B
	Maximum Frequency	64MHz
	RAM Size	512 B
	USB Channels	0
	Number of PWM Units	1
	Number of SPI Channels	1
	Number of UART Channels	0
	Number of I2C Channels	1
	Typical Operating Supply Voltage	2.3 → 5.5 V
	Number of CAN Channels	0
	Number of USART Channels	1
	Minimum Operating Temperature	-40 °C
	Width	5.6mm
	Instruction Set Architecture	RISC
	Maximum Operating Temperature	+85 °C
	Number of PCI Channels	0
	ADCs	12 x 10 bit
	Length	7.5mm
	Number of Ethernet Channels	0
	Dimensions	7.5 x 5.6 x 1.85mm
	Program Memory Type	Flash
	Pulse Width Modulation	1(ECCP)
	Number of ADC Units	1
	Number of LIN Channels	0
	Height	1.85mm

	選取全部
	品牌 Microchip
	Family Name PIC18F
	Package Type SSOP
	Mounting Type Surface Mount
	Pin Count 20
	Device Core PIC
	Data Bus Width 8bit
	Program Memory Size 16 kB, 256 B
	Maximum Frequency 64MHz
	RAM Size 512 B
	USB Channels 0
	Number of PWM Units 1
	Number of SPI Channels 1
	Number of UART Channels 0
	Number of I2C Channels 1
	Typical Operating Supply Voltage 2.3 → 5.5 V
	Number of CAN Channels 0
	Number of USART Channels 1
	Minimum Operating Temperature -40 °C
	Width 5.6mm
	Instruction Set Architecture RISC
	Maximum Operating Temperature +85 °C
	Number of PCI Channels 0
	ADCs 12 x 10 bit
	Length 7.5mm
	Number of Ethernet Channels 0
	Dimensions 7.5 x 5.6 x 1.85mm
	Program Memory Type Flash
	Pulse Width Modulation 1(ECCP)
	Number of ADC Units 1
	Number of LIN Channels 0
	Height 1.85mm

Datasheet

PIC18F1xK22 8-Bit Flash Microcontrollers

The PIC18F2x1x/4x1x family of microcontrollers are based on PIC18 architecture that offers a 31 level hardware stack and 75 instructions. These MCUs feature eXtreme Low Power technology, ideal for applications where low power consumption is vital.

Microcontroller Features

16 MIPS Max. CPU Speed
75 Instructions – 83 with Extended Instruction Set Enabled
31 Level Hardware Stack
Configurable Internal Oscillator – Selectable Frequency Range 16 MHz to 31 kHz
18 I/O Pins
Power-On Reset (POR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Brown-Out Reset (BOR)
Extended Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)

eXtreme Low-Power Features

Sleep Mode: 34 nA
Watchdog Timer: 460 nA
Timer1 Oscillator: 650 nA @ 32 kHz

Peripherals

10-bit Analogue-to-Digital Converter (ADC) – 12 Channels
Comparator Module
Voltage Reference Module
Three 16-bit Timers
One 8-bit Timer
One Enhanced Capture, Compare, PWM Module
Master Synchronous Serial Port (MSSP) Module with SPI and I²C
Enhanced Addressable Universal Synchronous Asynchronous Receiver Transmitter (EUSART)
SR Latch Module
