Microchip PIC18F6520-I/PT, 8bit PIC Microcontroller, PIC18F, 40MHz, 1.024 kB, 32 kB Flash, 64-Pin TQFP
- RS庫存編號:
- 698-8912P
- 製造零件編號:
- PIC18F6520-I/PT
- 製造商:
- Microchip

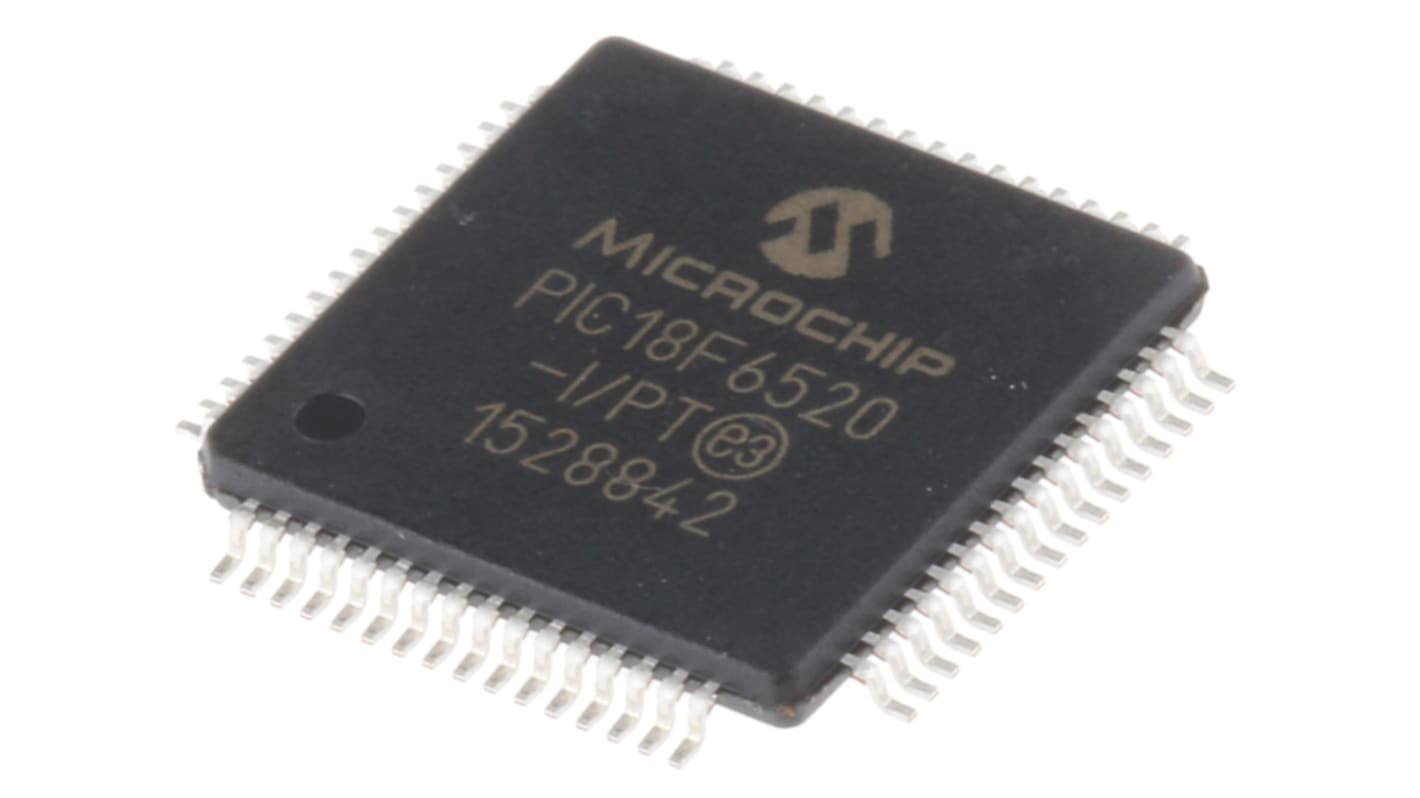

此圖片僅供參考，請參閲產品詳細資訊及規格
小計 40 件 (以盤裝提供)*
HK$3,711.60
訂單超過 HK$250.00 免費送貨
- 1,531 件準備從其他地點送貨
單位 | 每單位 |
|---|---|
| 40 - 79 | HK$92.79 |
| 80 + | HK$90.93 |
* 參考價格
- RS庫存編號:
- 698-8912P
- 製造零件編號:
- PIC18F6520-I/PT
- 製造商:
- Microchip
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Microchip | |
| Family Name | PIC18F | |
| Package Type | TQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 64 | |
| Device Core | PIC | |
| Data Bus Width | 8bit | |
| Program Memory Size | 1.024 kB, 32 kB | |
| Maximum Frequency | 40MHz | |
| RAM Size | 2.048 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 5 x 10 bit | |
| Number of SPI Channels | 1 | |
| Number of CAN Channels | 0 | |
| Number of USART Channels | 2 | |
| Number of I2C Channels | 1 | |
| Number of UART Channels | 0 | |
| Typical Operating Supply Voltage | 4.2 → 5.5 V | |
| ADCs | 12 x 10 bit | |
| Instruction Set Architecture | RISC | |
| Width | 10.1mm | |
| Pulse Width Modulation | 5(10 bit) (CCP) | |
| Number of LIN Channels | 0 | |
| Height | 1.05mm | |
| Dimensions | 10.1 x 10.1 x 1.05mm | |
| Length | 10.1mm | |
| Program Memory Type | Flash | |
| Maximum Operating Temperature | +85 °C | |
| Number of Ethernet Channels | 0 | |
| Number of PCI Channels | 0 | |
| Minimum Operating Temperature | -40 °C | |
| Number of ADC Units | 1 | |
| 選取全部 | ||
|---|---|---|
品牌 Microchip | ||
Family Name PIC18F | ||
Package Type TQFP | ||
Mounting Type Surface Mount | ||
Pin Count 64 | ||
Device Core PIC | ||
Data Bus Width 8bit | ||
Program Memory Size 1.024 kB, 32 kB | ||
Maximum Frequency 40MHz | ||
RAM Size 2.048 kB | ||
USB Channels 0 | ||
Number of PWM Units 5 x 10 bit | ||
Number of SPI Channels 1 | ||
Number of CAN Channels 0 | ||
Number of USART Channels 2 | ||
Number of I2C Channels 1 | ||
Number of UART Channels 0 | ||
Typical Operating Supply Voltage 4.2 → 5.5 V | ||
ADCs 12 x 10 bit | ||
Instruction Set Architecture RISC | ||
Width 10.1mm | ||
Pulse Width Modulation 5(10 bit) (CCP) | ||
Number of LIN Channels 0 | ||
Height 1.05mm | ||
Dimensions 10.1 x 10.1 x 1.05mm | ||
Length 10.1mm | ||
Program Memory Type Flash | ||
Maximum Operating Temperature +85 °C | ||
Number of Ethernet Channels 0 | ||
Number of PCI Channels 0 | ||
Minimum Operating Temperature -40 °C | ||
Number of ADC Units 1 | ||
