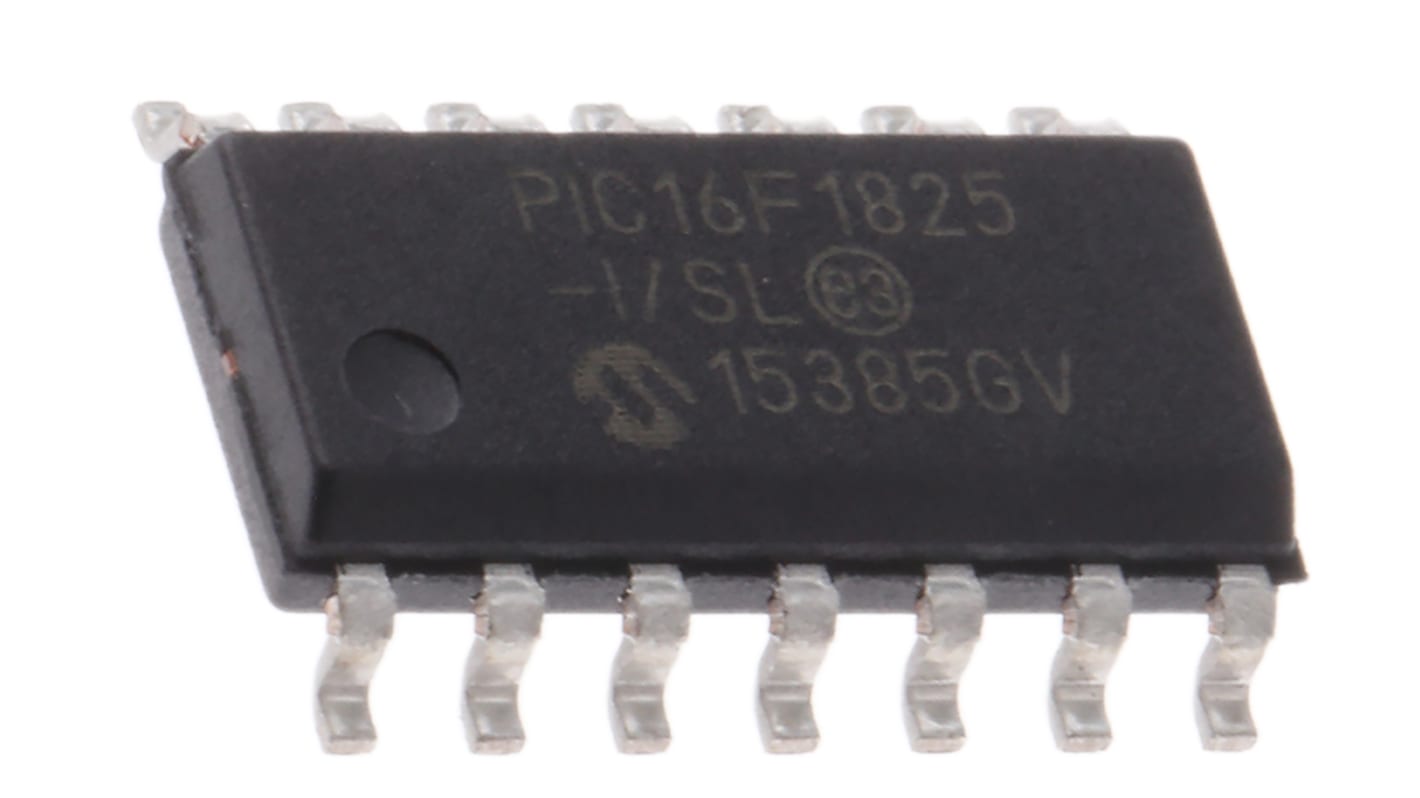

Microchip PIC16F1825-I/SL, 8 bit PIC, PIC16F1825 Microcontroller, 32 MHz, 14kB FLASH, 14-Pin SOIC

RS庫存編號:: 743-4728
製造零件編號:: PIC16F1825-I/SL
製造商:: Microchip

Microchip PIC16F1825-I/SL, 8 bit PIC, PIC16F1825 Microcontroller, 32 MHz, 14kB FLASH, 14-Pin SOIC

可享批量折扣

小計（1 包，共 4 件）*

HK$48.90

訂單超過 HK$250.00 免費送貨

有庫存

404 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每包*
4 - 12	HK$12.225	HK$48.90
16 - 24	HK$12.00	HK$48.00
28 +	HK$11.75	HK$47.00

* 參考價格

RS庫存編號:: 743-4728
製造零件編號:: PIC16F1825-I/SL
製造商:: Microchip

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Series	PIC16F1825
	Product Type	Microcontroller
	Package Type	SOIC
	Mount Type	Surface
	Pin Count	14
	Device Core	PIC
	Data Bus Width	8bit
	Program Memory Size	14kB
	Maximum Clock Frequency	32MHz
	RAM Size	1kB
	Maximum Supply Voltage	5.5V
	Number of Programmable I/Os	12
	Minimum Operating Temperature	-40°C
	Analogue Comparators	2
	Maximum Power Dissipation Pd	800mW
	Maximum Operating Temperature	85°C
	Height	1.5mm
	Standards/Approvals	No
	Width	3.9 mm
	Length	8.65mm
	Minimum Supply Voltage	1.8V
	Program Memory Type	FLASH
	ADCs	8 x 10 Bit
	Automotive Standard	ISO/TS 16949
	Number of Timers	5
	Instruction Set Architecture	RISC

	選取全部
	品牌 Microchip
	Series PIC16F1825
	Product Type Microcontroller
	Package Type SOIC
	Mount Type Surface
	Pin Count 14
	Device Core PIC
	Data Bus Width 8bit
	Program Memory Size 14kB
	Maximum Clock Frequency 32MHz
	RAM Size 1kB
	Maximum Supply Voltage 5.5V
	Number of Programmable I/Os 12
	Minimum Operating Temperature -40°C
	Analogue Comparators 2
	Maximum Power Dissipation Pd 800mW
	Maximum Operating Temperature 85°C
	Height 1.5mm
	Standards/Approvals No
	Width 3.9 mm
	Length 8.65mm
	Minimum Supply Voltage 1.8V
	Program Memory Type FLASH
	ADCs 8 x 10 Bit
	Automotive Standard ISO/TS 16949
	Number of Timers 5
	Instruction Set Architecture RISC

COO (Country of Origin):: TH

PIC16F1825/1829 8-Bit Flash Microcontrollers

The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.

The PIC16F1825/1829 family of microcontrollers is based upon Microchip’s enhanced mid-range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 8 MIPS, 14 Kbytes program memory, 1024 bytes RAM and Data EEPROM of 256 bytes. On board is a configurable oscillator with ±1% accuracy.

Microcontroller Features

32 MHz Max. CPU Speed

49 Instructions

16 Level Hardware Stack

32 MHz Internal Oscillator – Selectable Frequency Range 32 MHz to 31 kHz

12 I/O Pins – PIC16F1825

18 I/O Pins – PIC16F1829

XLP Technology

Power-On Reset (POR)

Power-Up Timer (PWRT)

Oscillator Start-Up Timer (OST)

Brown-Out Reset (BOR)

Extended Watchdog Timer (WDT)

Enhanced Low-Voltage Programming (LVP)

In-Circuit Serial Programming (ICSP)

In-Circuit Debug (ICD)

Peripherals

10-bit Analogue to Digital Converter (ADC) – PIC16F1825 8 Channels, PIC16F1829 12 Channels

mTouchTM Capacitive Sensor Module – PIC16F1825 8 Channels, PIC16F1829 12 Channels

Two Capture/Compare/PWM (CCP) Modules

Two Enhanced Capture/Compare/PWM (ECCP) Modules

Two Comparators

Four 8-bit Timers

One 16-bit Timer

Master Synchronous Serial Port (MSSP) with SPI and I2C – PIC16F1825 x 1, PIC16F1829 x 2

Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)

Fixed Voltage Reference (FVR)

SR Latch
