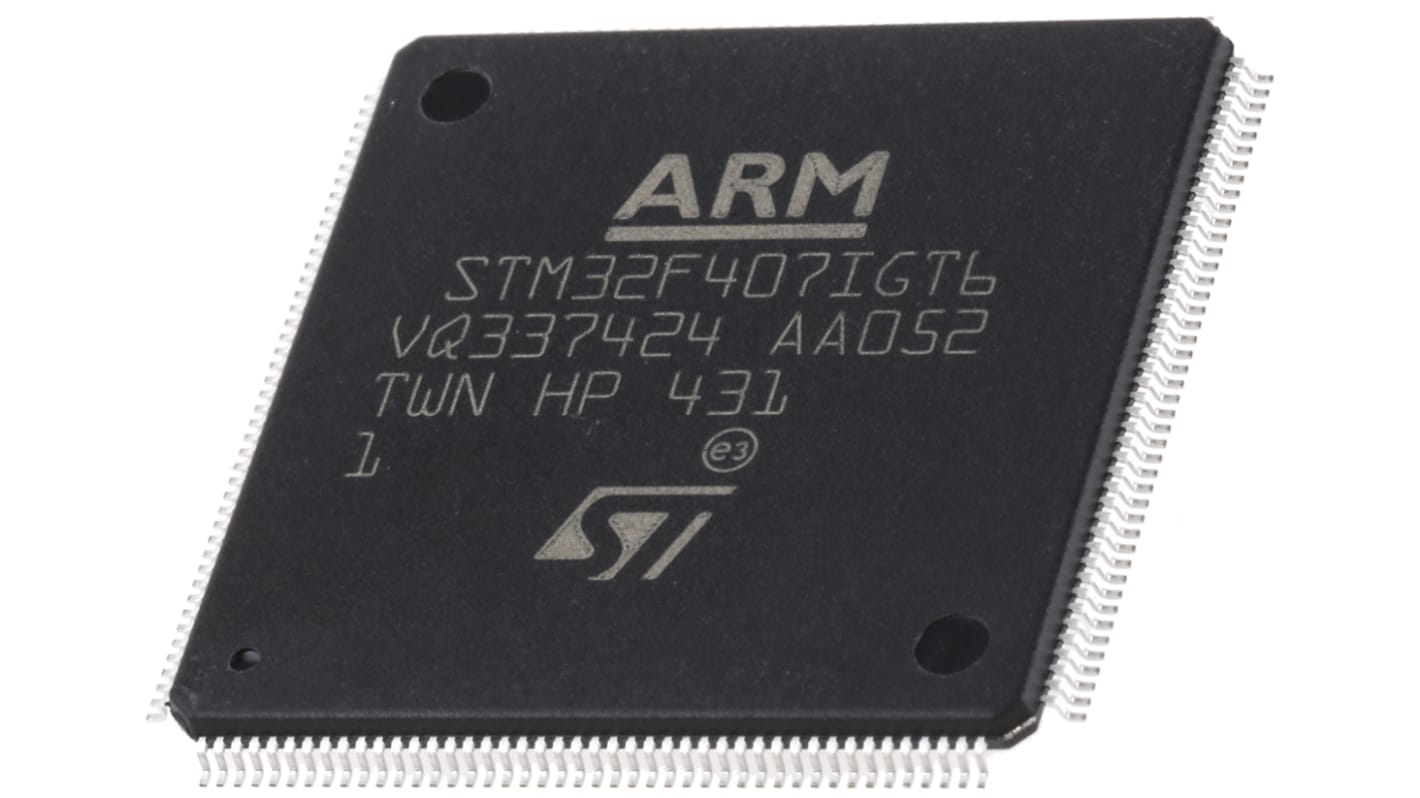

STM32F407IGT6 | STMicroelectronics, 32bit ARM Cortex M4, STM32F4 Microcontroller, 168MHz, 1.024 MB Flash, 176-Pin LQFP | RS

STMicroelectronics, 32bit ARM Cortex M4, STM32F4 Microcontroller, 168MHz, 1.024 MB Flash, 176-Pin LQFP

RS庫存編號:: 746-8214
製造零件編號:: STM32F407IGT6
製造商:: STMicroelectronics

STMicroelectronics, 32bit ARM Cortex M4, STM32F4 Microcontroller, 168MHz, 1.024 MB Flash, 176-Pin LQFP

可享批量折扣

Price 个**

HK$128.80

當前暫無庫存，可於2025/10/16發貨，3 工作日送達。*

* 交貨日期可能會根據您選擇的數量和交貨地址而變更。

訂單金額滿 HK$250.00 即可享受免費送貨服務

單位	每單位
1 - 9	HK$128.80
10 - 19	HK$126.20
20 +	HK$123.70

** 參考價格

RS庫存編號:: 746-8214
製造零件編號:: STM32F407IGT6
製造商:: STMicroelectronics

STM32F407/417 Microcontrollers, STMicroelectronics

The STM32 F407/417 high performance ARM^®Cortex™ M4 based microcontrollers integrate innovative peripherals with 168 MHz operating frequency, in addition to this it has an Ethernet MAC and camera interface for CMOS sensors. The STM32 F407/417 32-bit Flash MCUs feature a Floating point unit (FPU) with digital signal processing (DSP) instructions and a memory protection unit (MPU) which improves application security. ST’s STM32F417 microcontroller incorporates a crypto/hash processor providing hardware acceleration for AES 128, 192, 256, Triple DES, and hash (MD5, SHA-1)

STMicroelectronics STM32 F407/417 high performance and industry standard core architecture is supplied with enhanced peripherals and I/Os that are connected. They include ADCs, DACs, a RTC, 16-bit timers including two PWM timers for motor control, 32-bit timers. As well as a true number random generator (RNG). In addition a set of power saving modes allowing low-power application designs. They will cover a wide range of applications which include motor drive and application control, Industrial applications: Inverters, PLC, scanners, HVAC, video intercom, Home audio appliances and Medical equipment.

168MHz CPU/210DMIPS
ART Accelerator (dynamic power scaling)
12-bit DACs, 12-bit ADCs
Timers: 16-bit and 32-bit
Temperature range: –40 to +85 °C and –40 to +105 °C
Power supply 1.8 to 3.6 V
Standard and advanced communication;
I²Cs, SPIs, I²Ss full duplex (dedicated internal audio PLL)
USARTs; UARTs
USB OTG FS; USB OTG HS, CANs
SDIO/MMC interface
True random number generator
Flash Memory: up to 1 MB, SRAM: up to 192 KB, Back up RAM: up to 4 KB
Crypto/hash processor (STM32F417 only)

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

STM32F4 Series 32-Bit ARM Cortex-M4 Microcontrollers, STMicroelectronics

The ARM Cortex-M4 based STM32 F4 series of high-performance MCUs with DSP and FPU instructions is an extension of the industry-leading STM32 portfolio towards even higher performance. Up to 180 MHz operating frequency.

Up to 2x USB 2.0 OTG FS/HS
SDIO (Secure Digital Input Output)
USART, SPI, I²C
I²S (Inter-IC Sound) + Audio PLL
16 and 32 Bit Timers
Up to 3x 12-Bit ADC
Low Voltage 1.7 V to 3.6 V

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	STMicroelectronics
	Family Name	STM32F4
	Package Type	LQFP
	Mounting Type	Surface Mount
	Pin Count	176
	Device Core	ARM Cortex M4
	Data Bus Width	32bit
	Program Memory Size	1.024 MB
	Maximum Frequency	168MHz
	RAM Size	4 kB, 192 kB
	USB Channels	1 x Device, 1 x Host, 1 x OTG
	Number of PWM Units	1 x 16 bit
	Number of SPI Channels	3
	Number of I2C Channels	3
	Typical Operating Supply Voltage	1.8 → 3.6 V
	Number of CAN Channels	2
	Number of USART Channels	4
	Number of UART Channels	2
	Width	24.1mm
	Pulse Width Modulation	2 x 16 bit
	Maximum Number of Ethernet Channels	1
	Minimum Operating Temperature	-40 °C
	Program Memory Type	Flash
	Number of PCI Channels	0
	Number of Ethernet Channels	1
	Height	1.45mm
	Dimensions	24.1 x 24.1 x 1.45mm
	Maximum Operating Temperature	+85 °C
	Number of ADC Units	3
	Length	24.1mm
	ADCs	3(24 x 12 bit)
	Instruction Set Architecture	RISC
	Number of LIN Channels	1

	選取全部
	品牌 STMicroelectronics
	Family Name STM32F4
	Package Type LQFP
	Mounting Type Surface Mount
	Pin Count 176
	Device Core ARM Cortex M4
	Data Bus Width 32bit
	Program Memory Size 1.024 MB
	Maximum Frequency 168MHz
	RAM Size 4 kB, 192 kB
	USB Channels 1 x Device, 1 x Host, 1 x OTG
	Number of PWM Units 1 x 16 bit
	Number of SPI Channels 3
	Number of I2C Channels 3
	Typical Operating Supply Voltage 1.8 → 3.6 V
	Number of CAN Channels 2
	Number of USART Channels 4
	Number of UART Channels 2
	Width 24.1mm
	Pulse Width Modulation 2 x 16 bit
	Maximum Number of Ethernet Channels 1
	Minimum Operating Temperature -40 °C
	Program Memory Type Flash
	Number of PCI Channels 0
	Number of Ethernet Channels 1
	Height 1.45mm
	Dimensions 24.1 x 24.1 x 1.45mm
	Maximum Operating Temperature +85 °C
	Number of ADC Units 3
	Length 24.1mm
	ADCs 3(24 x 12 bit)
	Instruction Set Architecture RISC
	Number of LIN Channels 1
