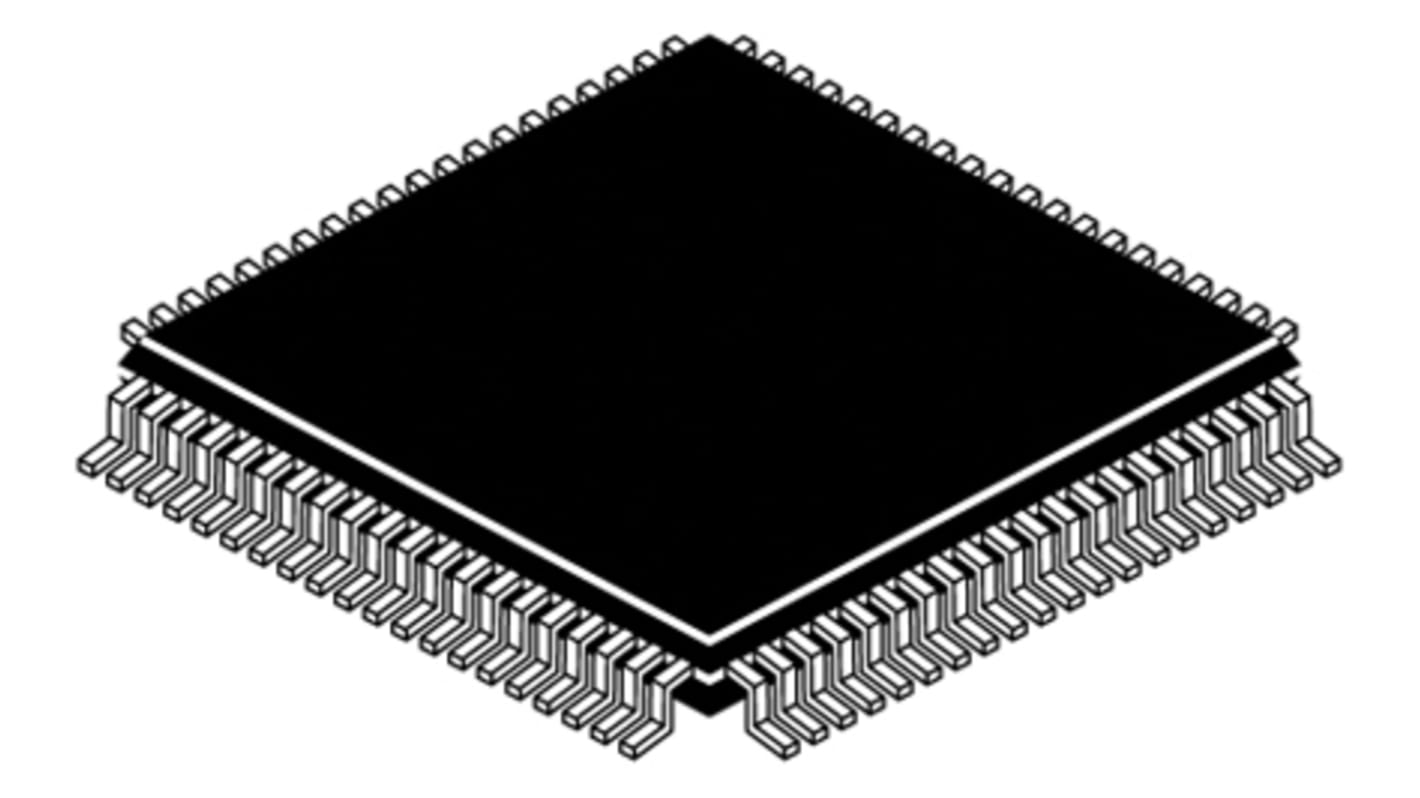

Texas Instruments, 16bit, MSP430 Microcontroller, 25MHz, 128 kB Flash, 80-Pin LQFP

查看所有Microcontrollers
可享批量折扣

小計（1 件）*

HK$77.30

Add to Basket
選擇或輸入數量
有庫存
  • 加上 185 件從 2025年12月10日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 - 29HK$77.30
30 - 59HK$75.60
60 +HK$74.00

* 參考價格

包裝方式：
RS庫存編號:
798-4485
製造零件編號:
MSP430F5529IPN
製造商:
Texas Instruments
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Texas Instruments

Family Name

MSP430

Package Type

LQFP

Mounting Type

Surface Mount

Pin Count

80

Data Bus Width

16bit

Program Memory Size

128 kB

Maximum Frequency

25MHz

RAM Size

8 + 2 kB

USB Channels

1

Number of SPI Channels

2

Typical Operating Supply Voltage

1.8 → 3.6 V

Number of I2C Channels

2

Number of USART Channels

0

Number of UART Channels

2

Number of CAN Channels

0

Number of PCI Channels

0

Width

12.2mm

Number of Ethernet Channels

0

Number of LIN Channels

0

Height

1.45mm

Dimensions

12.2 x 12.2 x 1.45mm

Maximum Number of Ethernet Channels

0

Number of ADC Units

1

Maximum Operating Temperature

+85 °C

Instruction Set Architecture

RISC

Length

12.2mm

Minimum Operating Temperature

-40 °C

ADCs

16 x 12 bit

Program Memory Type

Flash

MSP430F5x Ultra-Low-Power+ Performance Microcontrollers, Texas Instruments


The MSP430F5xx - 5 Series provides a high performance, 25MHz CPU with integrated USB 2.0 connectivity. With more memory and higher integrations, this series offer the Industry’s lowest active power consumption.

Up to 25MHz CPU speed clock

1.8V to 3.6V operation

Up to 512KB Flash memory

Up to 66KB RAM memory

Full-speed USB 2.0 interface

Low Power 195μA / MHz active

Low Power 2.5μA real-time clock mode

Low Power 0.1μA RAM retention

Fast Wake-Up From Standby Mode in less than 5μs

MSP430 Microcontrollers, Texas Instruments


The MSP430 Platform is a range of mixed-signal, ultra-low power microcontrollers from Texas Instruments. The 16-bit RISC architecture is perfectly suited for wireless, low-power industrial and portable applications. This established range has a strong and popular position due to its ease of use and broad suite of development tools and support.

The MSP430 portfolio consists of over 400 devices ranging from the MSP430 Value Line to the revolutionary, highly integrated microcontrollers with embedded FRAM memory.This broad family of products offer integration suited to many designs and applications. High-performance peripherals include USB, RF, LCD controllers and Sigma-Delta ADCs. This allows designers to find the appropriate MSP430 device for many low power applications.
