Silicon Labs, 8bit 8051, C8051F Microcontroller, 48MHz, 16 kB Flash, 32-Pin LQFP
- RS庫存編號:
- 819-6837P
- 製造零件編號:
- C8051F38C-GQ
- 製造商:
- Silicon Labs

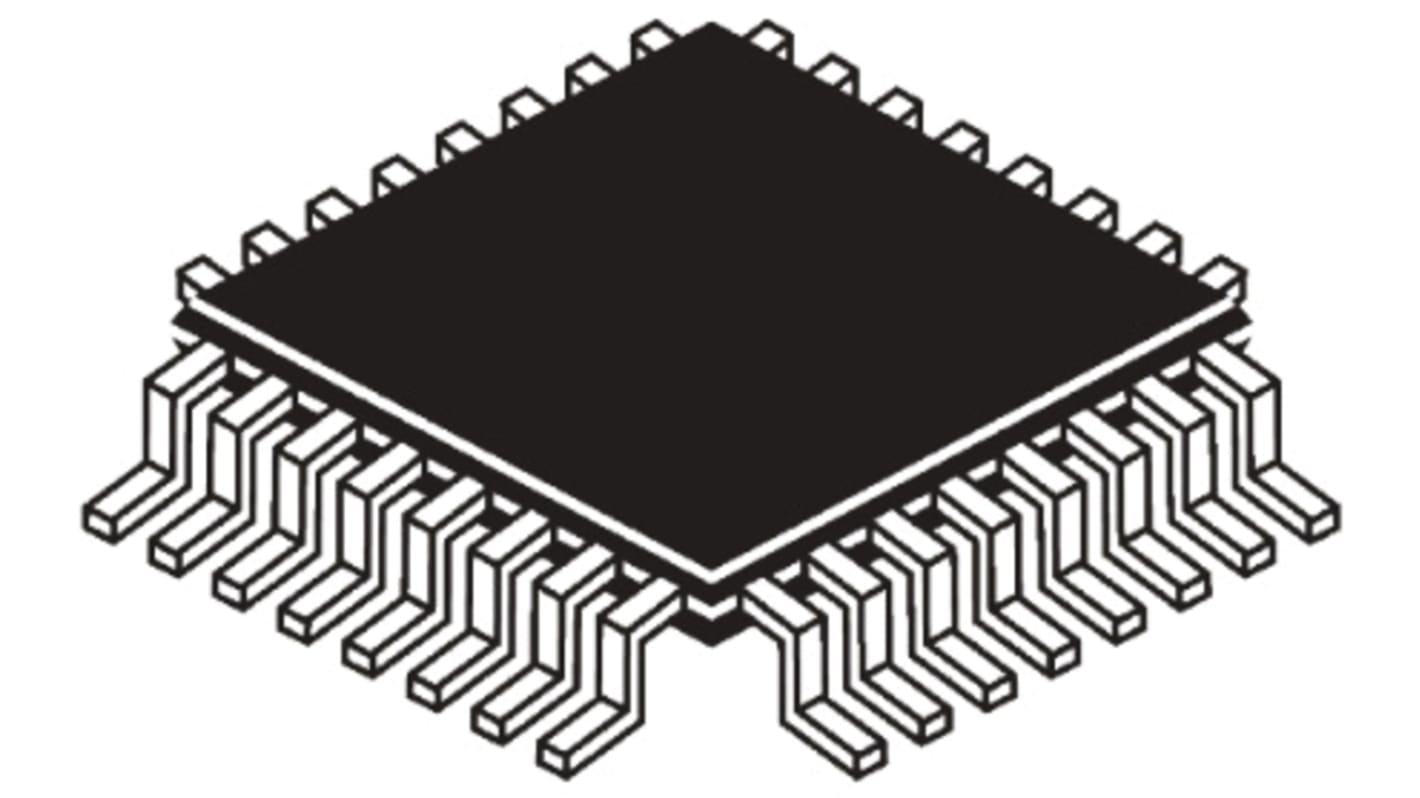

此圖片僅供參考，請參閲產品詳細資訊及規格
小計 65 件 (以盤裝提供)*
HK$2,194.40
訂單超過 HK$250.00 免費送貨
- 1,275 件準備從其他地點送貨
單位 | 每單位 |
|---|---|
| 65 - 120 | HK$33.76 |
| 125 + | HK$33.04 |
* 參考價格
- RS庫存編號:
- 819-6837P
- 製造零件編號:
- C8051F38C-GQ
- 製造商:
- Silicon Labs
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Silicon Labs | |
| Family Name | C8051F | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 32 | |
| Device Core | 8051 | |
| Data Bus Width | 8bit | |
| Program Memory Size | 16 kB | |
| Maximum Frequency | 48MHz | |
| RAM Size | 2.304 kB | |
| USB Channels | 1 | |
| Number of PWM Units | 1 x 16 bit | |
| Number of SPI Channels | 1 | |
| Typical Operating Supply Voltage | 3.3 V | |
| Number of UART Channels | 2 | |
| Number of CAN Channels | 0 | |
| Number of I2C Channels | 2 | |
| Number of USART Channels | 0 | |
| Length | 7mm | |
| Number of ADC Units | 1 | |
| Number of LIN Channels | 0 | |
| Width | 7mm | |
| Dimensions | 7 x 7 x 1.45mm | |
| Program Memory Type | Flash | |
| Height | 1.45mm | |
| ADCs | 21 x 10 bit | |
| Number of Ethernet Channels | 0 | |
| Maximum Number of Ethernet Channels | 0 | |
| Instruction Set Architecture | MCU | |
| Minimum Operating Temperature | -40 °C | |
| Pulse Width Modulation | 1 (5 x 16 bit) | |
| Maximum Operating Temperature | +85 °C | |
| Number of PCI Channels | 0 | |
| 選取全部 | ||
|---|---|---|
品牌 Silicon Labs | ||
Family Name C8051F | ||
Package Type LQFP | ||
Mounting Type Surface Mount | ||
Pin Count 32 | ||
Device Core 8051 | ||
Data Bus Width 8bit | ||
Program Memory Size 16 kB | ||
Maximum Frequency 48MHz | ||
RAM Size 2.304 kB | ||
USB Channels 1 | ||
Number of PWM Units 1 x 16 bit | ||
Number of SPI Channels 1 | ||
Typical Operating Supply Voltage 3.3 V | ||
Number of UART Channels 2 | ||
Number of CAN Channels 0 | ||
Number of I2C Channels 2 | ||
Number of USART Channels 0 | ||
Length 7mm | ||
Number of ADC Units 1 | ||
Number of LIN Channels 0 | ||
Width 7mm | ||
Dimensions 7 x 7 x 1.45mm | ||
Program Memory Type Flash | ||
Height 1.45mm | ||
ADCs 21 x 10 bit | ||
Number of Ethernet Channels 0 | ||
Maximum Number of Ethernet Channels 0 | ||
Instruction Set Architecture MCU | ||
Minimum Operating Temperature -40 °C | ||
Pulse Width Modulation 1 (5 x 16 bit) | ||
Maximum Operating Temperature +85 °C | ||
Number of PCI Channels 0 | ||
