NXP MK60FX512VLQ15, 32bit ARM Cortex M4 Microcontroller, Kinetis K6x, 150MHz, 1 MB Flash, 144-Pin LQFP

RS庫存編號:
8406550P
製造零件編號:
MK60FX512VLQ15
製造商:
NXP
NXP

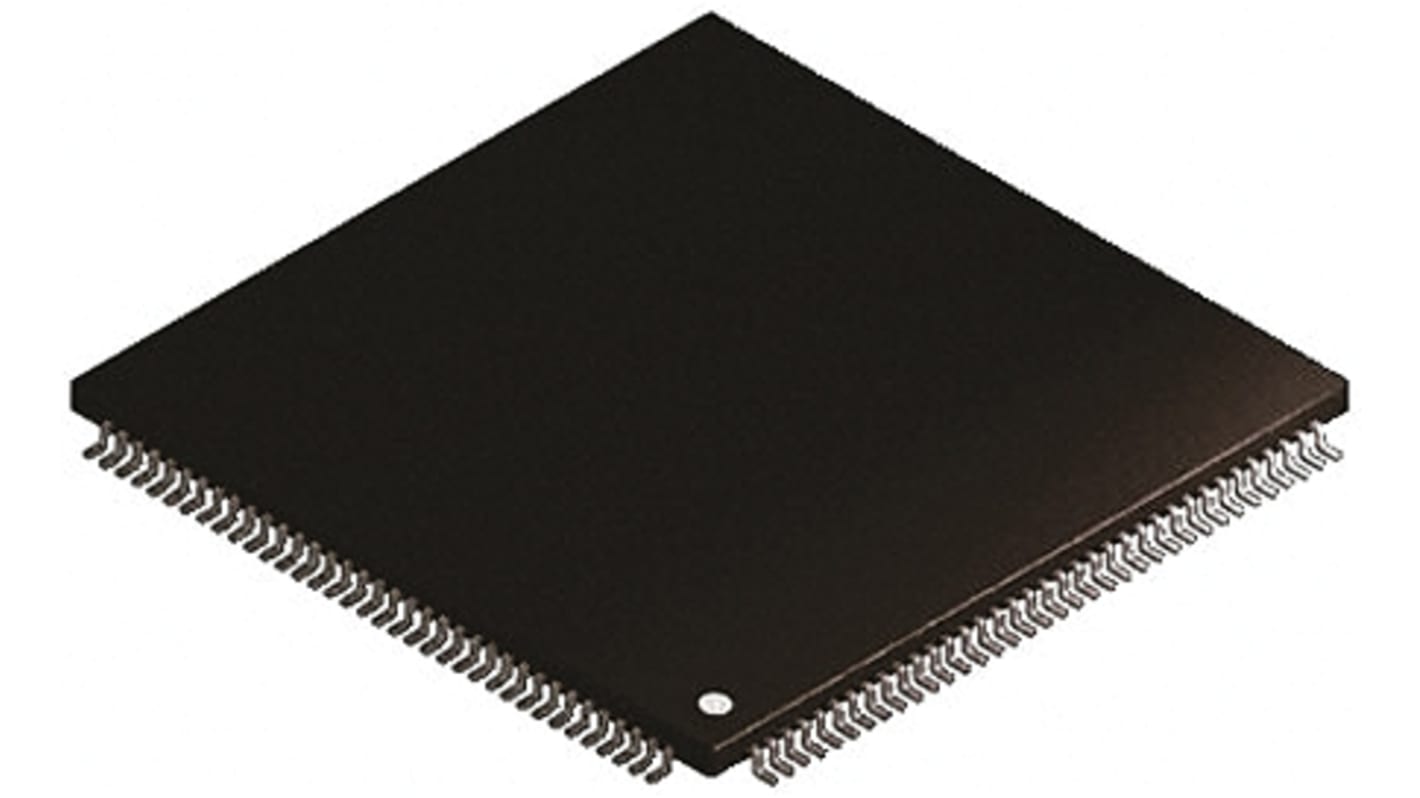

此圖片僅供參考,請參閲產品詳細資訊及規格

查看所有Microcontrollers
可供預購。
Add to Basket
單位

此產品暫時不接受預訂。

抱歉,此產品暫無現貨,目前也不接受預訂。

已增加

單價 Each (Supplied in a Tray)

HK$244.71

單位Per unit
15 - 29HK$244.71
30 +HK$239.46
包裝方式:
RS庫存編號:
8406550P
製造零件編號:
MK60FX512VLQ15
製造商:
NXP

產品概覽和技術數據資料表


法例與合規


產品詳細資訊

Kinetis K6x Series Microcontrollers




規格

AttributeValue
Family NameKinetis K6x
Package TypeLQFP
Mounting TypeSurface Mount
Pin Count144
Device CoreARM Cortex M4
Data Bus Width32bit
Program Memory Size1 MB
Maximum Frequency150MHz
RAM Size144 kB
USB Channels2
Number of PWM Units4
Number of SPI Channels3
Number of USART Channels0
Typical Operating Supply Voltage1.71 → 3.6 V
Number of I2C Channels2
Number of UART Channels6
Number of CAN Channels2
Dimensions20 x 20 x 1.6mm
Pulse Width Modulation2 (2)-Quad Decoder, 2 (8)-Motor Control
Program Memory TypeFlash
Number of Ethernet Channels1
Number of PCI Channels0
Maximum Number of Ethernet Channels1
Minimum Operating Temperature-40 °C
Instruction Set ArchitectureARM
Number of ADC Units2
Maximum Operating Temperature+105 °C
Length20mm
ADCs4 x 16 bit
Height1.6mm
Number of LIN Channels0
Width20mm
