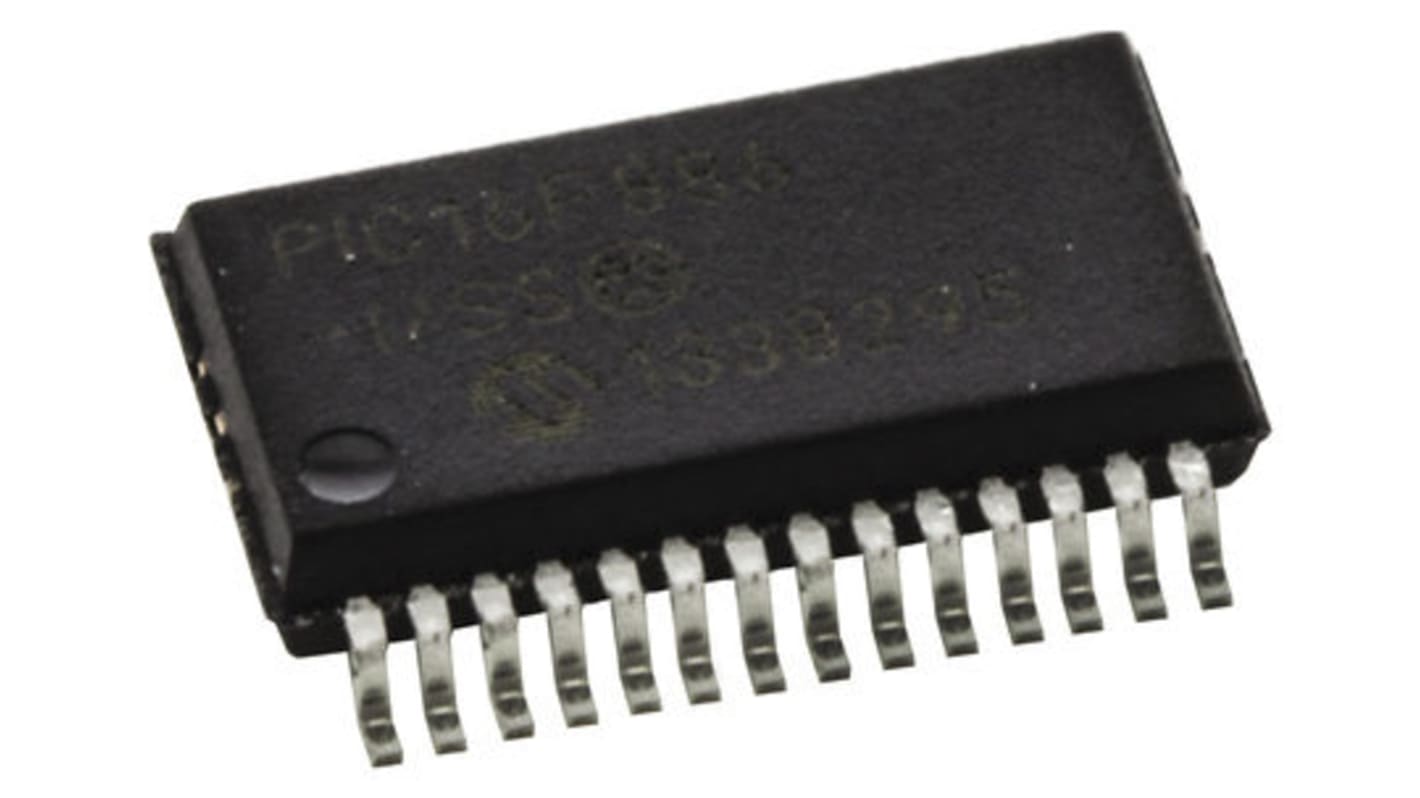

Microchip, 8 bit PIC, PIC16F886 Microcontroller, 40 MHz, 14kB FLASH, 28-Pin SSOP

RS庫存編號:: 876-6834
製造零件編號:: PIC16F886-I/SS
製造商:: Microchip

Microchip, 8 bit PIC, PIC16F886 Microcontroller, 40 MHz, 14kB FLASH, 28-Pin SSOP

可享批量折扣

小計（1 管，共 47 件）*

HK$1,084.196

訂單超過 HK$250.00 免費送貨

有庫存

1,786 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位	每管*
47 - 47	HK$23.068	HK$1,084.20
94 - 423	HK$22.609	HK$1,062.62
470 +	HK$22.155	HK$1,041.29

* 參考價格

RS庫存編號:: 876-6834
製造零件編號:: PIC16F886-I/SS
製造商:: Microchip

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Microchip
	Series	PIC16F886
	Product Type	Microcontroller
	Package Type	SSOP
	Mount Type	Surface
	Pin Count	28
	Device Core	PIC
	Data Bus Width	8bit
	Interface Type	SPI
	Program Memory Size	14kB
	Maximum Clock Frequency	40MHz
	RAM Size	368bit
	Maximum Supply Voltage	5.5V
	Analogue Comparators	2
	Minimum Operating Temperature	-40°C
	Maximum Expanded Memory Size	8bit
	Maximum Power Dissipation Pd	800mW
	Number of Programmable I/Os	24
	Maximum Operating Temperature	85°C
	Length	10.5mm
	Standards/Approvals	No
	Height	1.85mm
	Width	5.6 mm
	Minimum Supply Voltage	2V
	Program Memory Type	FLASH
	ADCs	11 x 10 Bit
	Instruction Set Architecture	RISC
	Number of Timers	3
	Automotive Standard	No

	選取全部
	品牌 Microchip
	Series PIC16F886
	Product Type Microcontroller
	Package Type SSOP
	Mount Type Surface
	Pin Count 28
	Device Core PIC
	Data Bus Width 8bit
	Interface Type SPI
	Program Memory Size 14kB
	Maximum Clock Frequency 40MHz
	RAM Size 368bit
	Maximum Supply Voltage 5.5V
	Analogue Comparators 2
	Minimum Operating Temperature -40°C
	Maximum Expanded Memory Size 8bit
	Maximum Power Dissipation Pd 800mW
	Number of Programmable I/Os 24
	Maximum Operating Temperature 85°C
	Length 10.5mm
	Standards/Approvals No
	Height 1.85mm
	Width 5.6 mm
	Minimum Supply Voltage 2V
	Program Memory Type FLASH
	ADCs 11 x 10 Bit
	Instruction Set Architecture RISC
	Number of Timers 3
	Automotive Standard No

PIC16F882/883/884/886/887 8-Bit Flash Microcontrollers

The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.

The PIC16F882/883/884/886/887 family of microcontrollers is based upon Microchip’s Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 14 Kbytes program memory, up to 368 bytes RAM and EEPROM of up to 256 bytes. On board is a configurable oscillator factory calibrated to ±1% accuracy.

Microcontroller Features

20 MHz Max. CPU Speed

35 Instructions

8 Level Hardware Stack

8 MHz Internal Oscillator – Selectable Output Range from 8 MHz to 31 kHz

24 I/O Pins – PIC16F882/883/886

35 I/O Pins – PIC16F884/887

Power-On Reset (POR)

Brown-Out Reset (BOR)

Power-Up Timer (PWRT)

Oscillator Start-Up Timer (OST)

Watchdog Timer (WDT)

In-Circuit Serial Programming (ICSP)

In-Circuit Debug (ICD)

Peripherals

10-bit Analogue-to-Digital Converter (ADC) - PIC16F882/883/886 11 Channels, PIC16F884/887 14 Channels

Two Capture, Compare, PWM (CCP) Modules

Enhanced Capture, Compare, PWM (ECCP) Module

Two Comparators

Two 8-bit Timers

One 16-bit Timer

Master Synchronous Serial Port (MSSP) with SPI and I2C

Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)
