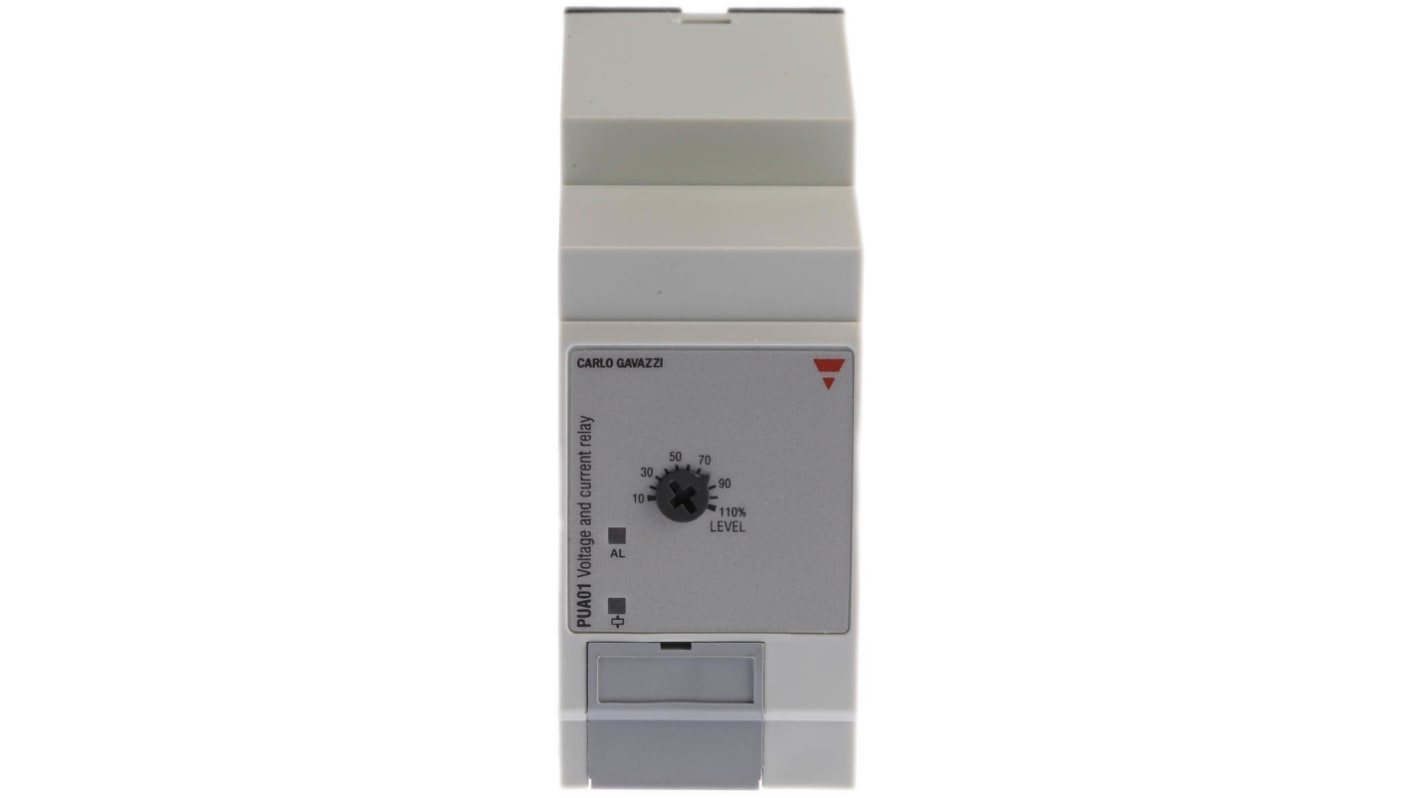

Carlo Gavazzi Current, Voltage Monitoring Relay, SPDT, 0.4 → 500 V ac, 2 → 500V dc, DIN Rail

RS庫存編號:: 727-1256
製造零件編號:: PUA01CB23500V
製造商:: Carlo Gavazzi

Carlo Gavazzi Current, Voltage Monitoring Relay, SPDT, 0.4 → 500 V ac, 2 → 500V dc, DIN Rail

63 現貨庫存，可於3工作日發貨。

原價 HK$1,386.23

HK$1,132.00

單位	每單位
1 +	HK$1,132.00

RS庫存編號:: 727-1256
製造零件編號:: PUA01CB23500V
製造商:: Carlo Gavazzi

產品概覽和技術數據資料表

Monitoring Relays Data Sheet

法例與合規

COO (Country of Origin):: IT

產品詳細資訊

Over Voltage - Over Current Monitoring Relay

Monitoring relays from Carlo Gavazzi can also be used as 1-phase or 3- phase over current monitoring relays when connected with MI or MP current transformers.Owing to the built-in latch function, the ON-position of the relay output can be maintained. The red LED indicates the alarm status.

AC/DC over voltage monitoring relay
Selection of measuring range by DIP-switches
Measuring ranges: 2 to 20 VAC/DC, 5 to 50 VAC/DC,
20 to 200 VAC/DC, 50 to 500 VAC/DC, 0.4 to 4 Vp AC
Adjustable voltage limit on relative scale
Adjustable hysteresis
Programmable latching at set level
Output: 8 A SPDT relay normally de-energized
LED indication for relay and power supply ON
Galvanically separated power supply
Panel and screw termination options available

規格

Attribute	Value
Monitoring Application	Current, Voltage
Contact Configuration	SPDT
Voltage Sensing Range	0.4 → 500 V ac, 2 → 500V dc
Voltage Sensitivity	Overvoltage
Mounting Type	DIN Rail
Current Sensitivity	Overcurrent
Time Delay	<300ms
Series	PUA01
Minimum Operating Temperature	-20°C
Maximum Voltage Sensed	500V ac/dc
Dimensions	94 x 36 x 80mm
Width	36mm
Maximum Operating Temperature	+60°C
Length	94mm
Height	80mm
Operating Temperature Range	+60°C
Minimum Voltage Sensed	0.4V ac
