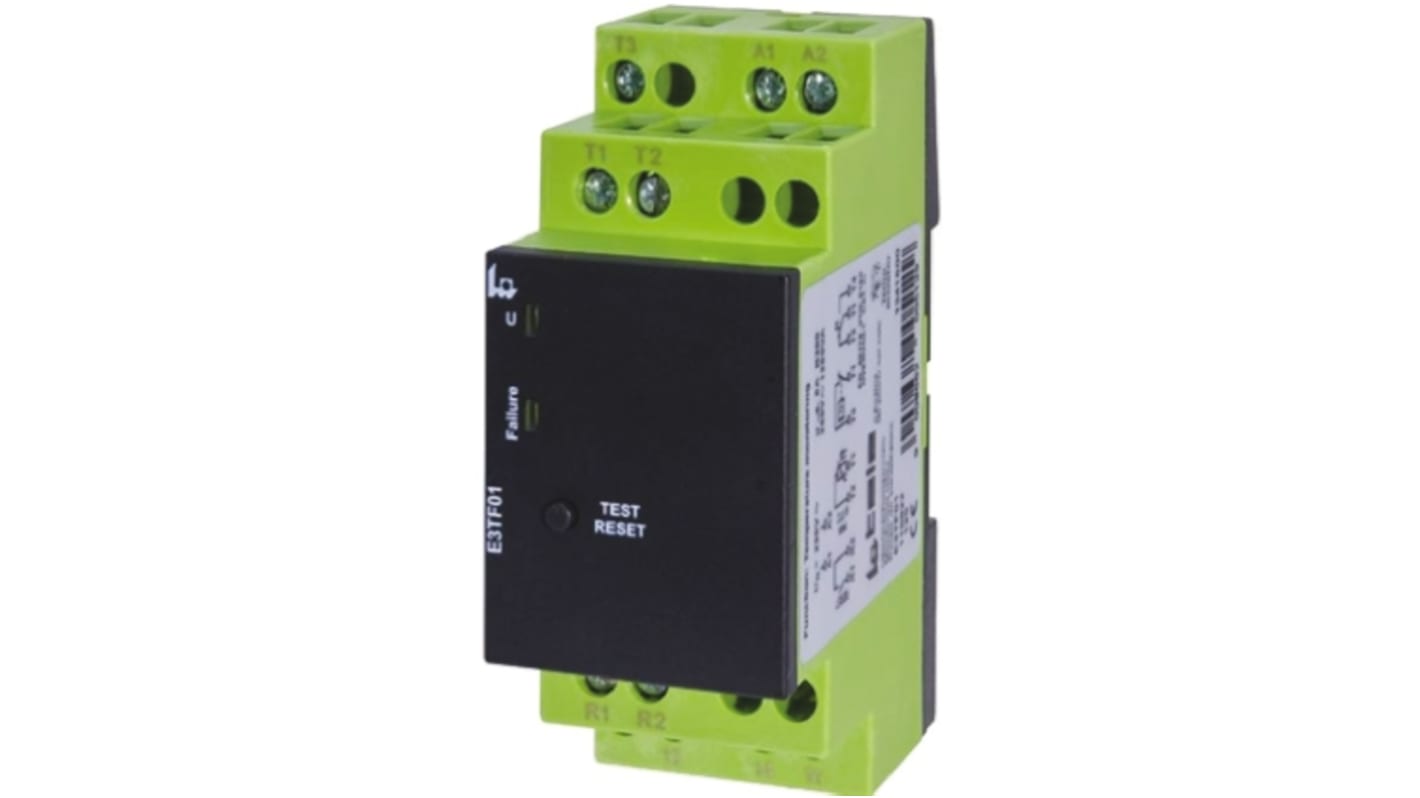

Tele Temperature Monitoring Relay, SPDT, DIN Rail
- RS庫存編號:
- 730-0495
- 製造零件編號:
- E3TF01 230V AC
- 製造商:
- Tele
查看所有Monitoring Relays
- RS庫存編號:
- 730-0495
- 製造零件編號:
- E3TF01 230V AC
- 製造商:
- Tele
法例與合規
- COO (Country of Origin):
- AT
產品詳細資訊
ENYA Series Temperature Monitoring Relay
TELE ENYA series temperature monitoring relay of the motor winding with fault latch for temperature sensors. Featuring short circuit monitoring of the thermistor line and integfrated test or reset key and a single change over contact. The ENYA series have a self-extinguishing plastic body with an IP rating of IP40.
DIN Rail mount
LED indicator
Screw terminals
1 change over contact
17.5 mm width
Optional evaluation of one thermal contact
Test function with integrated reset key
Rated isolated voltage on the sensor circuit up to 690V
LED indicator
Screw terminals
1 change over contact
17.5 mm width
Optional evaluation of one thermal contact
Test function with integrated reset key
Rated isolated voltage on the sensor circuit up to 690V
規格
Attribute | Value |
|---|---|
| Monitoring Application | Temperature |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Time Delay | 250ms |
| Temperature Sensitivity | Winding Temperature |
| Series | ENYA |
| Length | 65mm |
| Height | 87mm |
| Maximum Operating Temperature | +55°C |
| Dimensions | 65 x 35 x 87mm |
| Width | 35mm |
| Operating Temperature Range | +55°C |
| Minimum Operating Temperature | -25°C |
