- RS庫存編號:
- 916-0189
- 製造零件編號:
- PMA20240
- 製造商:
- Lovato
查看所有Monitoring Relays
- RS庫存編號:
- 916-0189
- 製造零件編號:
- PMA20240
- 製造商:
- Lovato
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- IT
產品詳細資訊

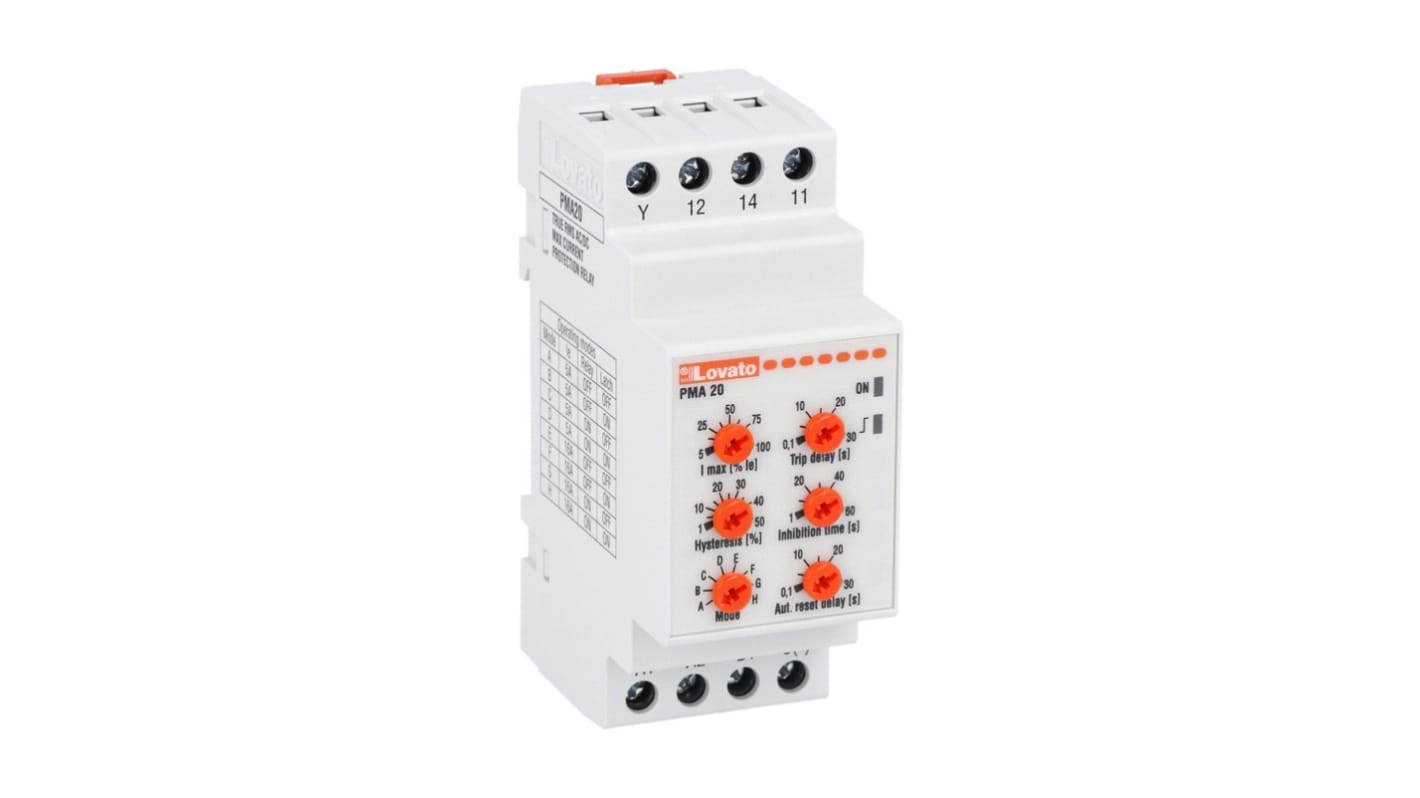

Current Monitoring Relay AC/DC Single Phase
The Lovato range of current monitoring relays are for AC/DC minimum and maximum current control with AC/DC multi-voltage auxiliary power supply and are single phase. You are offered with the current monitoring relays a direct connection of up to maximum of 16A or by a current transformer. The Lovato current relays give you excellent tripping accuracy and TRMS current measurements. You have a choice of one or two relay outputs with one changeover contact SPDT and all have an automatic or manual reset.
Modular DIN 43880 housing
Excellent tripping accuracy
IEC protection: IP40 on front and only when placed in an IP40 enclosure or control board
IP20 at terminals
Single phase system
AC/DC maximum and minimum current control
Delayed trip
Auxiliary AC/DC power supply
Automatic or manual reset TRMS current measurements
Resetting and inhibition input
Excellent tripping accuracy
IEC protection: IP40 on front and only when placed in an IP40 enclosure or control board
IP20 at terminals
Single phase system
AC/DC maximum and minimum current control
Delayed trip
Auxiliary AC/DC power supply
Automatic or manual reset TRMS current measurements
Resetting and inhibition input
Single Phase Current Monitoring Relays
Approvals
EAC; UL Listed for USA and Canada (cULus File E93601) as auxiliary devices.
Compliant with standards: IES/EN 60255-5
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
CSA C22.2 n° 14.
Compliant with standards: IES/EN 60255-5
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
CSA C22.2 n° 14.
Lovato Orange Contactors, Control Relays and Accessories
規格
Attribute | Value |
---|---|
Monitoring Application | Current |
Electrical Phase | 1 |
Contact Configuration | SPDT |
Mounting Type | DIN Rail |
Minimum Current Sensed | 0.25A |
Maximum Current Sensed | 16A |
Current Sensitivity | Overcurrent |
Time Delay | 0.1 → 30s |
Series | PMA20 |
Maximum Operating Temperature | +60°C |
Dimensions | 35.8 x 64.9 x 104.7mm |
Current Range | 0.25 → 16A |
Width | 64.9mm |
Minimum Operating Temperature | -20°C |
Number of Poles | 1 |
Terminal Type | Screw |
Height | 104.7mm |
Length | 35.8mm |
Operating Temperature Range | +60°C |
