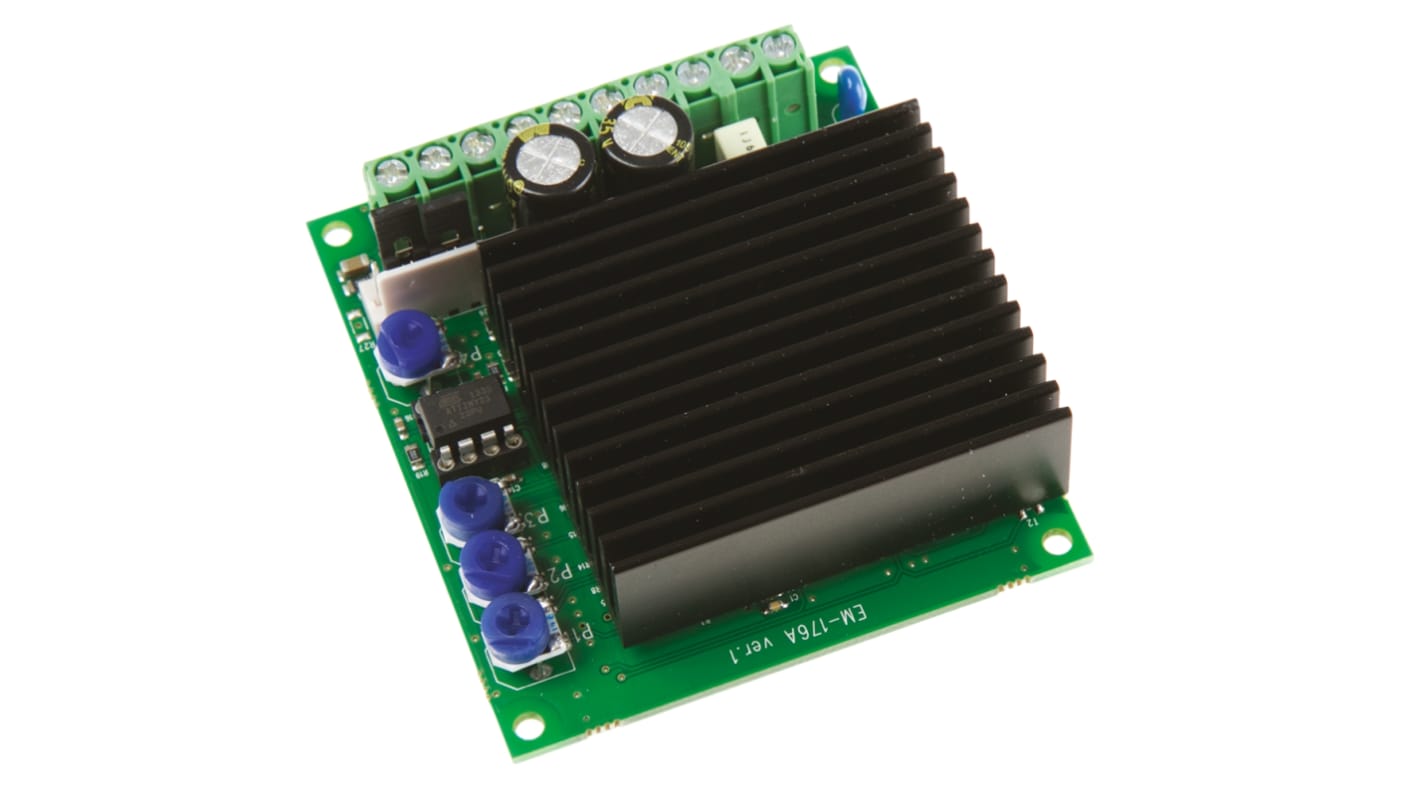

Electromen OY DC Motor Controller, 12/35 V dc, 10 A, Potentiometer Function

查看所有Motor Controllers

小計（1 件）*

HK$1,364.86

Add to Basket
選擇或輸入數量
有庫存
  • 加上 14 件從 2025年12月22日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$1,364.86

* 參考價格

RS庫存編號:
773-6835
製造零件編號:
EM-176
製造商:
Electromen OY
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Electromen OY

Product Type

DC Motor Controller

Control Function

Potentiometer

Output Voltage

12/24 V

Supply Voltage

12/35 V dc

Current Rating

10 A

Overall Length

63mm

Overall Width

73mm

Overall Depth

30 mm

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

70°C

Series

EM-176

Standards/Approvals

No

COO (Country of Origin):
FI

Electromen - EM-176 DC MOTOR CONTROLLER 12/24VDC, 10A


The EM-176 motor driver is a 4-quadrant DC-motor speed controller and is suitable for 12 or 24V supply. The unit utilizes a PWM driven H-bridge and achieves high efficiency and extensive controlling options.Control can be provide by a potentiometer or direct voltage signal and the drive offers adjustable load compensation, if required.An auxiliary card can be fitted to EM-176 to provide a means to apply a symmetrical (+/-) control input with either a voltage signal or potentiometer. The ramp feature is used to control the motor start up and braking rates, this is set with an on-board trim pot

The scale trimmer can be used to scale set value to correspond better the motor rpm.

The current limit can be set with either the trim pot or with a direct voltage signal, this can be adjusted to protect the motor and transmission in a jam situations

The unit has separate inputs for brake, freewheel and reverse.

The brake function shorts the motor poles to provide dynamic braking, the reverse command changes motor direction with ramp times to allow for smooth direct change

The freewheel command sets the motor free from all control, the freewheel command overrides all other commands

Features and Benefits


High efficiency drive with low RF emissions

4-quadrant control

Brake, freewheel and reverse commands

Option for symmetrical control input ±10V

Settable current limit

Settable acceleration/brake ramp

Braking options

Load compensation

Compact and DIN rail mountable;12-24Vdc, 10A continuous, 15A peak

Speed, direction and braking control

Adjustable start ramp and current limit

Compact and DIN rail mountable

EM-A1 card slot option for symmetrical control ±5V or ±10V (rev-stop-fwd)

EM-176 DC-Motor Controller


EM-176 is designed for DC-motor speed control. The unit can be used with unregulated DC supply. Motor loading can be compensated with inbuilt RxI-type adjustment.

Speed control value can be set with voltage signal or with potentiometer, there is an auxiliary voltage signal output for potentiometer use.

4 Quadrants

Braking

Freewheeling

Reversal

0 to 10V control

Optional ±10V control

Soft start ramp

Adjustable current limit

Load compensation (RxI)

High efficiency

High peak loading capacity

Rail mountable
