製造零件編號

Geckodrive 0.01 kW Stepper Motor Controller, 80V dc, 2 Phase, 7A

RS庫存編號:: 793-4127
製造零件編號:: G201X
製造商:: Geckodrive

Geckodrive 0.01 kW Stepper Motor Controller, 80V dc, 2 Phase, 7A

小計（1 件）*

HK$1,226.09

訂單超過 HK$250.00 免費送貨

有庫存

37 件準備從其他地點送貨
加上 9 件從 2026年8月05日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$1,226.09

* 參考價格

RS庫存編號:: 793-4127
製造零件編號:: G201X
製造商:: Geckodrive

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Geckodrive
	Product Type	Stepper Motor Controller
	Number of Phases	2
	Supply Voltage	80V dc
	Output Voltage	80V dc
	Current Rating	7A
	Power Rating	0.01kW
	Overall Length	63.5mm
	Overall Width	21mm
	Overall Depth	65.5mm
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	70°C
	Standards/Approvals	No

	選取全部
	品牌 Geckodrive
	Product Type Stepper Motor Controller
	Number of Phases 2
	Supply Voltage 80V dc
	Output Voltage 80V dc
	Current Rating 7A
	Power Rating 0.01kW
	Overall Length 63.5mm
	Overall Width 21mm
	Overall Depth 65.5mm
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 70°C
	Standards/Approvals No

COO (Country of Origin):: US

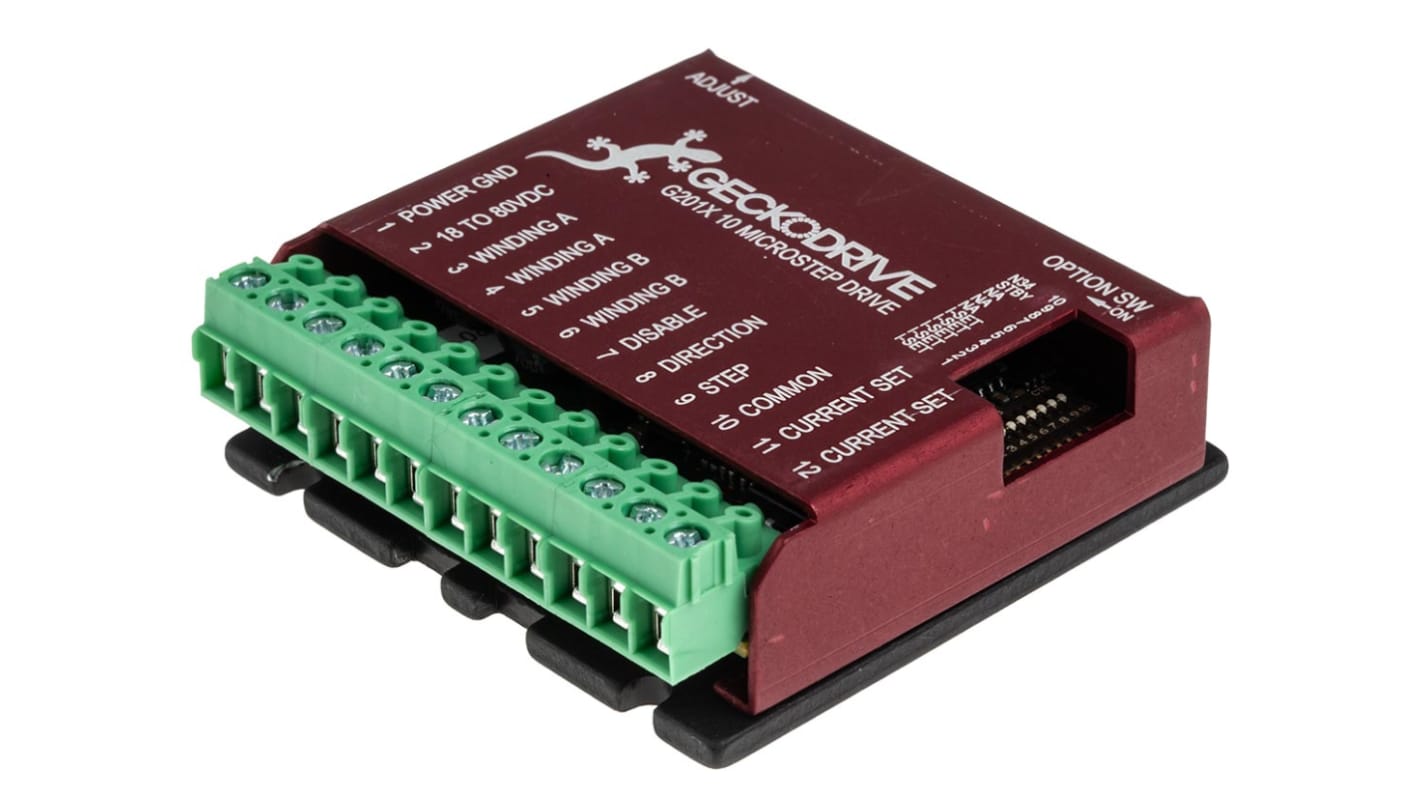

G201X - Step Motor Drive

The G201X is a stepper motor drive with an aluminium case. Drives stepper motors up to 7 Amps.

STEP and DIRECTION inputs are +3.3/5 VDC compatible

Recirculate mode during STANDBY greatly reduces motor heating while stopped

Power-on RESET

Direction is clocked in on the active step pulse edge

DIP switch settings for current and motor version

Needs heatsinking for current settings greater than 3 amps

Low motor heating while stopped

Power supply voltage between 18 and 80 VDC

Aluminium cover and plate

Connector type is Modular, 5mm pitch
