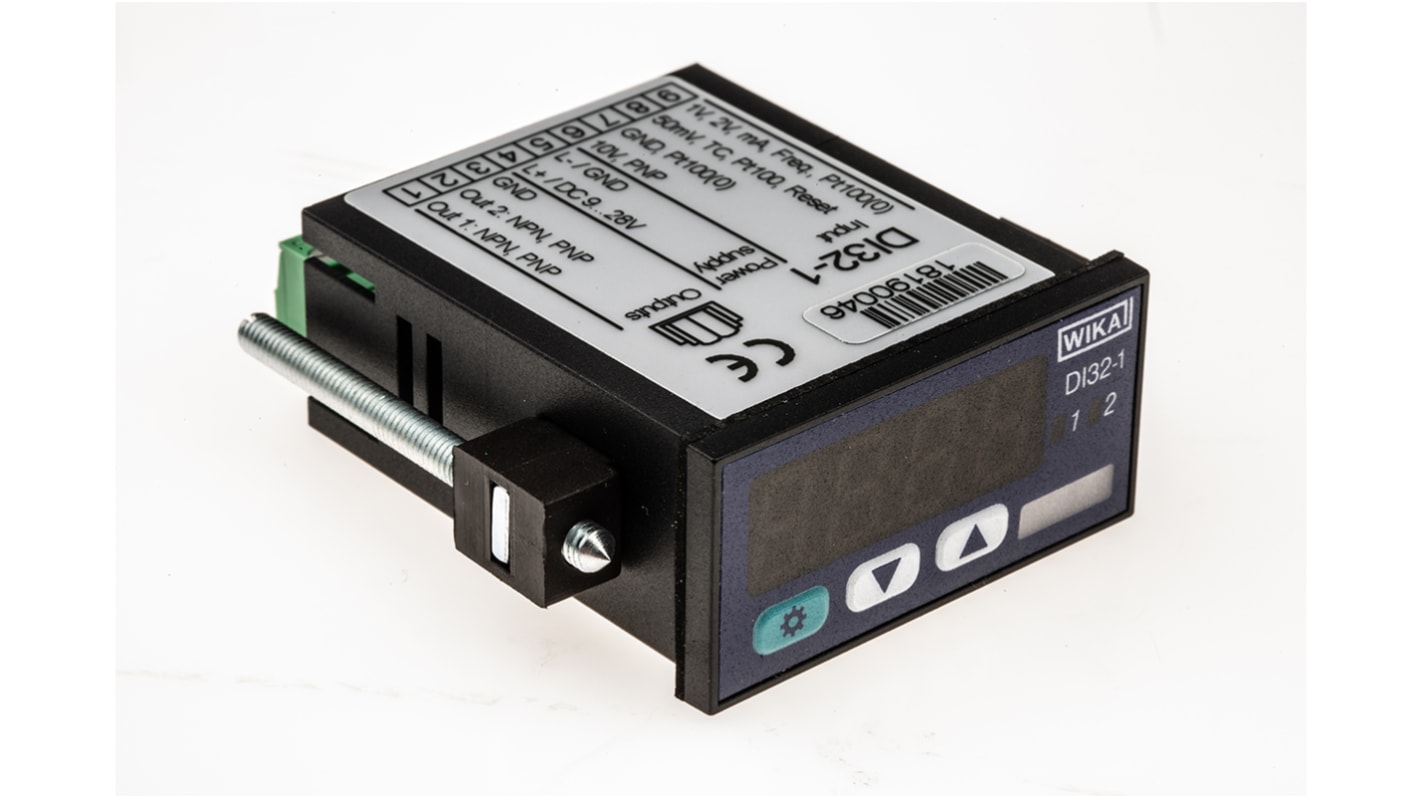

Name: WIKA DI32-1 LED Digital Panel Multi-Function Meter, 22.2mm x 45mm
Brand: WIKA
SKU: 124-4456
Price: 3357.10 HKD
Availability: InStock

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	WIKA
	Properties Measured	Counter, Current, Frequency, Humidity, Speed, Temperature, Thermocouples, Voltage
	Display Type	LED
	Cutout Height	22.2mm
	Cutout Width	45mm
	Number of Digits	4
	Depth	3mm
	Digit Height	10 mm
	Minimum Temperature	-20°C
	Maximum Temperature	+50°C
	Measurement Range	0 → 1 (Voltage V @ >10 kΩ), 0 → 10 (Voltage V @ >100 kΩ), 0 → 2 (Voltage V @ >10 kΩ), 0 → 50 (Voltage mV @ >10 kΩ)
	Approvals	EMC 2004/108/EC, EN 61326, IEC 60529/EN 60529, UL 94 V-0
	Meter Type	Electrical
	Series	DI32-1
	Minimum Measurement	+80 (Thermocouple (Type B)) °C, 0 (Counter), 0 (Current mA @ 125 Ω), 0 (Frequency NPN) kHz, 0 (Frequency PNP) kHz, 0 (Frequency) kHz, 0 (Humidity) %RH, 0 (Speed) rpm, 0 (Voltage) V, -170 (Thermocouple (Type J)) °C, -200 (PT100 (3-Wire)) °C, -200 (PT1000 (2-Wire)) °C, -200 (Thermocouple (Type L)) °C, -270 (Thermocouple (Type E)) °C, -270 (Thermocouple (Type K)) °C, -270 (Thermocouple (Type N)) °C, -270 (Thermocouple (Type T)) °C, 4 (Current mA @ 125 Ω), -50 (PT100 (3-Wire)) °C, -50 (Thermocouple (Type R)) °C, -50 (Thermocouple (Type S)) °C

	選取全部
	品牌 WIKA
	Properties Measured Counter, Current, Frequency, Humidity, Speed, Temperature, Thermocouples, Voltage
	Display Type LED
	Cutout Height 22.2mm
	Cutout Width 45mm
	Number of Digits 4
	Depth 3mm
	Digit Height 10 mm
	Minimum Temperature -20°C
	Maximum Temperature +50°C
	Measurement Range 0 → 1 (Voltage V @ >10 kΩ), 0 → 10 (Voltage V @ >100 kΩ), 0 → 2 (Voltage V @ >10 kΩ), 0 → 50 (Voltage mV @ >10 kΩ)
	Approvals EMC 2004/108/EC, EN 61326, IEC 60529/EN 60529, UL 94 V-0
	Meter Type Electrical
	Series DI32-1
	Minimum Measurement +80 (Thermocouple (Type B)) °C, 0 (Counter), 0 (Current mA @ 125 Ω), 0 (Frequency NPN) kHz, 0 (Frequency PNP) kHz, 0 (Frequency) kHz, 0 (Humidity) %RH, 0 (Speed) rpm, 0 (Voltage) V, -170 (Thermocouple (Type J)) °C, -200 (PT100 (3-Wire)) °C, -200 (PT1000 (2-Wire)) °C, -200 (Thermocouple (Type L)) °C, -270 (Thermocouple (Type E)) °C, -270 (Thermocouple (Type K)) °C, -270 (Thermocouple (Type N)) °C, -270 (Thermocouple (Type T)) °C, 4 (Current mA @ 125 Ω), -50 (PT100 (3-Wire)) °C, -50 (Thermocouple (Type R)) °C, -50 (Thermocouple (Type S)) °C

Datasheet

COO (Country of Origin):: DE

Digital Panel Mount Meter

The WIKA DI32-1 is a compact digital panel indicator that can be used for the measurement of voltage, current, frequency and temperature. It features a single input that can be configured 23 different ways and two transistor switch outputs which can be set independently of each other. The 7 segment, 4-digit display can show MAX/MIN readings and displays settings and menus when using the front panel to program.

Features and Benefits

• 3 button front panel for easy programming
• Easy to read 7 segment 4 digit display
• Tare function
• Linearisation of sensor with up to 5 setting points
• Adjustable measuring time from 0.01 to 20 seconds
• 100 ppm/K temperature drift
• Connection via a removable 9 pin plug-in terminal
• -1999 to 9999 indicator range
• 9 to 28 VDC supply

Applications

• Machine building and plant construction
• Machine tools
• Test benches
• Industrial applications
