Sifam Tinsley NA3 LED Digital Panel Multifunction Meter for Resistance, Temperature, Voltage, Current, 22.2 mm x 92 mm
- RS庫存編號:
- 886-1755
- 製造零件編號:
- NA3 -FTRU011000U
- 製造商:
- Sifam Tinsley
小計（1 件）*
HK$2,572.97
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2026年12月14日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$2,572.97 |
* 參考價格
- RS庫存編號:
- 886-1755
- 製造零件編號:
- NA3 -FTRU011000U
- 製造商:
- Sifam Tinsley
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Sifam Tinsley | |
| Product Type | Digital Panel Multifunction Meter | |
| Properties Measured | Resistance, Temperature, Voltage, Current | |
| Display Type | LED | |
| Cutout Height | 22.2mm | |
| Number of Digits | 4 | |
| Depth | 125mm | |
| Cutout Width | 92mm | |
| Digit Height | 7mm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | ASTA, CE, CSA, UL | |
| Meter Type | Electronic | |
| Series | NA3 | |
| Minimum Measurement | 0 mA (Current), 0 mV (Voltage), 0 Ω (Resistance), -200 °C (Temperature) | |
| 選取全部 | ||
|---|---|---|
品牌 Sifam Tinsley | ||
Product Type Digital Panel Multifunction Meter | ||
Properties Measured Resistance, Temperature, Voltage, Current | ||
Display Type LED | ||
Cutout Height 22.2mm | ||
Number of Digits 4 | ||
Depth 125mm | ||
Cutout Width 92mm | ||
Digit Height 7mm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals ASTA, CE, CSA, UL | ||
Meter Type Electronic | ||
Series NA3 | ||
Minimum Measurement 0 mA (Current), 0 mV (Voltage), 0 Ω (Resistance), -200 °C (Temperature) | ||
不相容
- COO (Country of Origin):
- IN

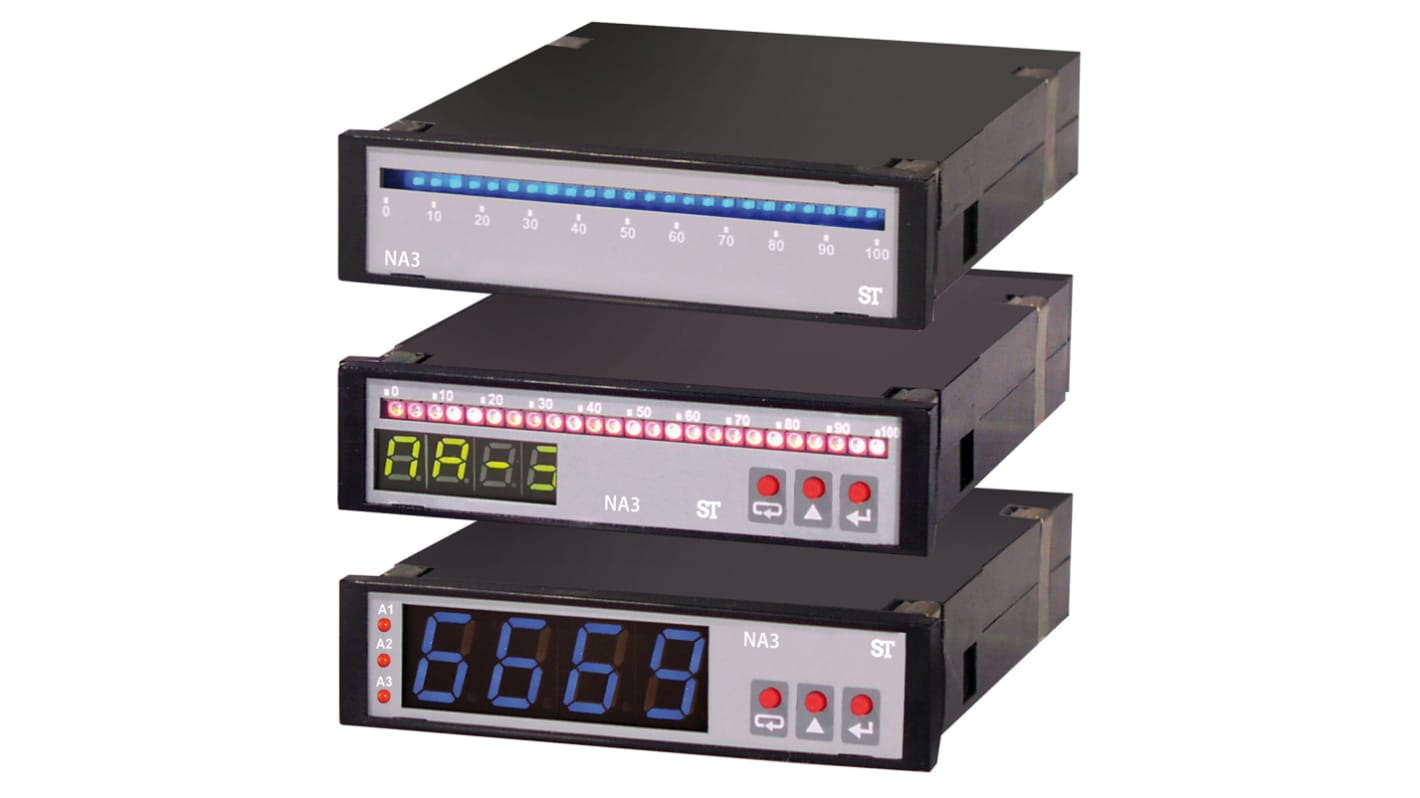

NA3 Digital Bar Graph Meter
NA3 programmable meters with multicolour bargraph indicators are designed to measure and record DC Current or DC Voltage, temperature, resistance and other non-electrical magnitudes like: level, flow, pressure, and humidity.
3 or 7 colour bar graph
Programming of bargraph colour depending on measured quantity value
Signalling of set alarm value over flow
Storage of measured signal in programmed time segments
Current or voltage analogue output
Communication in SCADA systems (RS485/Modbus interface RTU and ASCII)
Sifam Tinsley Multifunction Meter
