Sifam Tinsley Beta 90 7 Segment Digital Display Digital Panel Multifunction Meter for Current, 22.2 mm x 92 mm

查看所有Multi Function Panel Meters
可享批量折扣

小計（1 件）*

HK$529.20

Add to Basket
選擇或輸入數量
庫存資訊目前無法查詢
單位
每單位
1 - 4HK$529.20
5 - 9HK$508.00
10 +HK$486.90

* 參考價格

RS庫存編號:
886-1796
製造零件編號:
BT90-C030490000000
製造商:
Sifam Tinsley
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Sifam Tinsley

Product Type

Digital Panel Multifunction Meter

Properties Measured

Current

Display Type

7 Segment Digital Display

Cutout Height

22.2mm

Cutout Width

92mm

Number of Digits

4

Depth

66.5mm

Digit Height

14mm

Minimum Operating Temperature

0°C

Maximum Operating Temperature

50°C

Standards/Approvals

ASTA, CE, CSA, UL

Meter Type

Electronic

Series

Beta 90

不相容

COO (Country of Origin):
IN

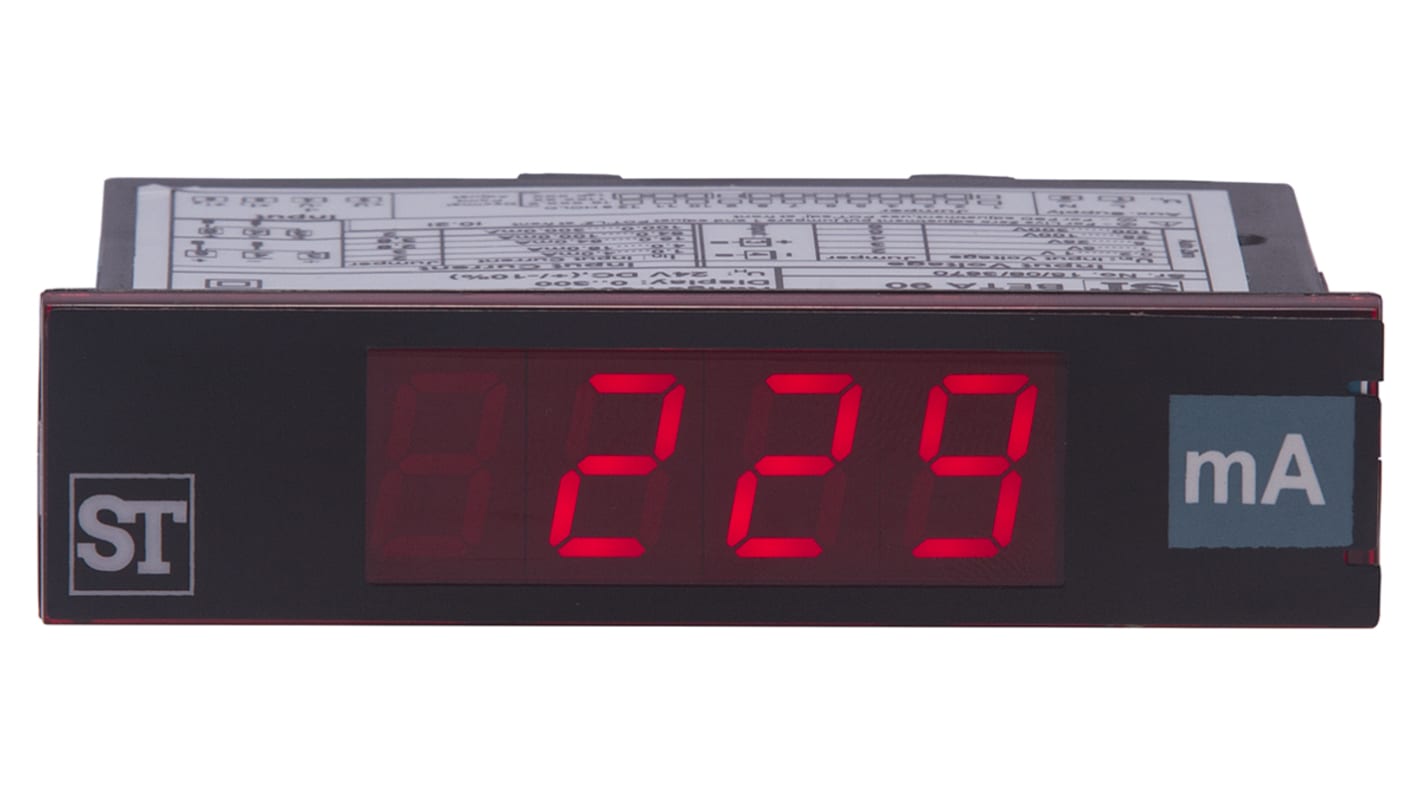

Beta 90 Digital Panel Meter


Beta 90 digital panel meters are used for measurement of DC current and DC voltage with 9 measuring ranges. The choice of many factory pre-set measuring ranges is included, with user adjustments available for the zero and full-scale values.

These panel meters are designed for industrial applications, which frequently require precise, on-site adjustment of the display range.

96 x 24 mm

Factory pre-set with many measuring ranges

Measuring ranges selectable using jumpers

Zero point and final value adjustable

230V ac power supply option

Overall depth only 72 mm

Sifam Tinsley Multifunction Meter
