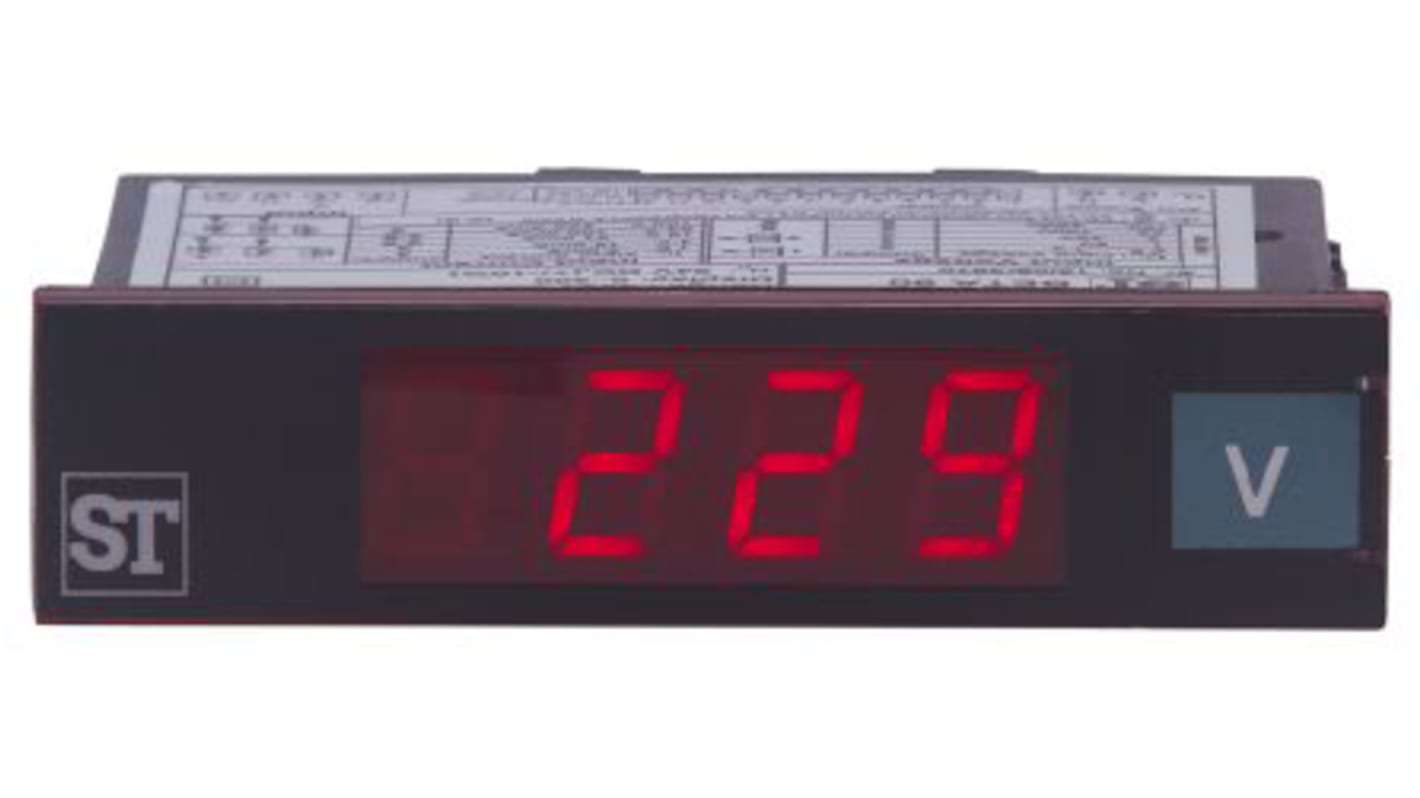

Sifam Tinsley Beta 7 Segment Display Digital Panel Multi-Function Meter for DC Voltage, 22.2mm x 92mm
- RS庫存編號:
- 136-6355
- 製造零件編號:
- BT90-C031K60000000
- 製造商:
- Sifam Tinsley
小計（1 件）*
HK$577.30
訂單超過 HK$250.00 免費送貨
有庫存
- 2 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$577.30 |
* 參考價格
- RS庫存編號:
- 136-6355
- 製造零件編號:
- BT90-C031K60000000
- 製造商:
- Sifam Tinsley
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Sifam Tinsley | |
| Properties Measured | DC Voltage | |
| Display Type | 7 Segment Display | |
| Cutout Height | 22.2mm | |
| Cutout Width | 92mm | |
| Number of Digits | 4 | |
| Depth | 72mm | |
| Digit Height | 14 mm | |
| Minimum Temperature | 0°C | |
| Maximum Temperature | +50°C | |
| Measurement Range | 0 → 200 mA, 0 → 300 V dc | |
| Meter Type | Digital | |
| Series | Beta | |
| Minimum Measurement | 0 mA, 0 V dc | |
| 選取全部 | ||
|---|---|---|
品牌 Sifam Tinsley | ||
Properties Measured DC Voltage | ||
Display Type 7 Segment Display | ||
Cutout Height 22.2mm | ||
Cutout Width 92mm | ||
Number of Digits 4 | ||
Depth 72mm | ||
Digit Height 14 mm | ||
Minimum Temperature 0°C | ||
Maximum Temperature +50°C | ||
Measurement Range 0 → 200 mA, 0 → 300 V dc | ||
Meter Type Digital | ||
Series Beta | ||
Minimum Measurement 0 mA, 0 V dc | ||
不相容
- COO (Country of Origin):
- IN
Beta 90 Digital Panel Meter
Beta 90 digital panel meters are used for measurement of DC current and DC voltage with 9 measuring ranges. The choice of many factory pre-set measuring ranges is included, with user adjustments available for the zero and full-scale values.
These panel meters are designed for industrial applications, which frequently require precise, on-site adjustment of the display range.
These panel meters are designed for industrial applications, which frequently require precise, on-site adjustment of the display range.
96 x 24 mm
Factory pre-set with many measuring ranges
Measuring ranges selectable using jumpers
Zero point and final value adjustable
230V ac power supply option
Overall depth only 72 mm
Factory pre-set with many measuring ranges
Measuring ranges selectable using jumpers
Zero point and final value adjustable
230V ac power supply option
Overall depth only 72 mm
Supply voltage 230 V ac
Sifam Tinsley Multifunction Meter
