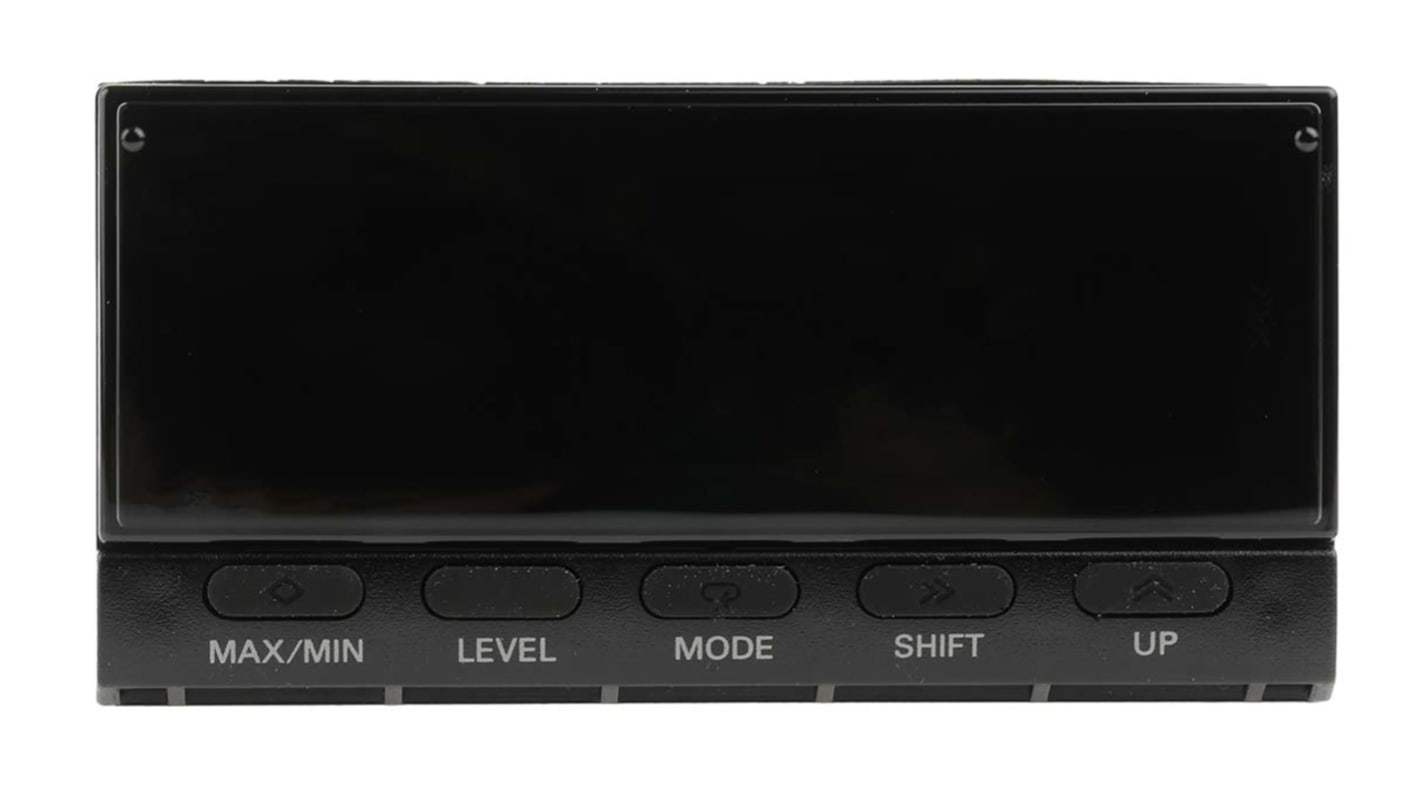

Omron LCD Digital Panel Multi-Function Meter for Temperature, 48mm x 96mm
- RS庫存編號:
- 611-7750
- 製造零件編號:
- K3MA-L-C AC100-240
- 製造商:
- Omron
查看所有Multi Function Panel Meters
- RS庫存編號:
- 611-7750
- 製造零件編號:
- K3MA-L-C AC100-240
- 製造商:
- Omron
- COO (Country of Origin):
- CN
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊
Omron Process Panel Meter
The Omron process panel meter is water and dustproof indicator with a highly visible LCD and 2-colour LEDs. It has a DC voltage/current input. The device consists of scaling, auto-zero time and start-up compensation time functions. The finger protective cover guards against electric shock. It is used to measure the current and voltage.
Features and Benefits
Input signal is DC voltage/current (0mA to 20mA, 4mA to 20mA, 0V to 5V, 1V to 5V, ±5V, ±10V)
Supply voltage rating is 100VAC to 240VAC
Easy confirmation of maximum/minimum display
Short 80mm depth
2 relay contact outputs (SPST-NO)
7-segment 5-digital LCD display, Character height is 14.2mm
Average processing function suppresses flicker
Front-panel key operation for easy setting
Cut-out height of 45mm, width of 92mm and depth of 80mm
Maximum display digit range is −19999 to 99999
Operating temperature ranges between -10°C and 55°C
Supply voltage rating is 100VAC to 240VAC
Easy confirmation of maximum/minimum display
Short 80mm depth
2 relay contact outputs (SPST-NO)
7-segment 5-digital LCD display, Character height is 14.2mm
Average processing function suppresses flicker
Front-panel key operation for easy setting
Cut-out height of 45mm, width of 92mm and depth of 80mm
Maximum display digit range is −19999 to 99999
Operating temperature ranges between -10°C and 55°C
Certifications
NEMA4X
IP20 rated (Rear case)
IP66 rated (Front panel)
cULus approved
CE certified
cURus certified
IP20 rated (Rear case)
IP66 rated (Front panel)
cULus approved
CE certified
cURus certified
規格
Attribute | Value |
Properties Measured | Temperature |
Display Type | LCD |
Cutout Height | 48mm |
Cutout Width | 96mm |
Minimum Temperature | -10°C |
Maximum Temperature | +55°C |
