- RS庫存編號:
- 914-8533
- 製造零件編號:
- SRP-94-1841-1-4-001
- 製造商:
- Simex
- RS庫存編號:
- 914-8533
- 製造零件編號:
- SRP-94-1841-1-4-001
- 製造商:
- Simex
法例與合規
- COO (Country of Origin):
- PL
產品詳細資訊

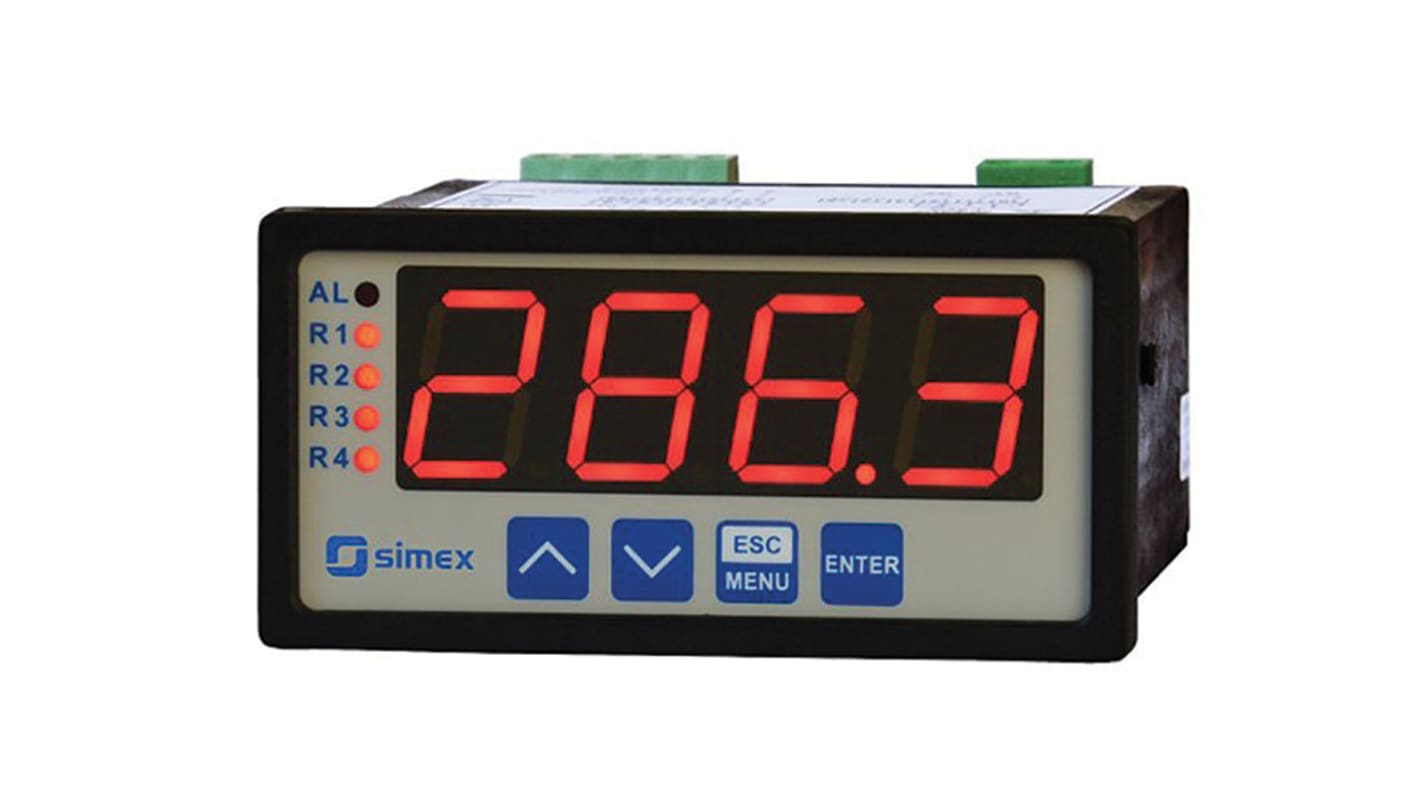

SRP-94/946 Process Meter
The SRP-94 and SRP-946 are process meters designed for measuring typical current or voltage signals. The readouts on these meters are presented on a large, well-readable display with standard range of 4 digits or 5/6 digits for more demanding applications. The outputs on these meters are designed to supply measuring transducers and the RS485 port enables data transmission in production process monitoring systems.
• SRP-94 - 4-digit (20 mm) LED display
• SRP-946 - 6-digit (13 mm) LED display
• Analogue output- active or passive
• 0/4-20 mA, 0/1-5 V, 0/2-10 V, 0-60/75/100/150 mV inputs
• 4 Relay outputs
• Wide range of characteristic curves- linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks
• RS485/Modbus RTU communication port
• Configuration with local keyboard or free S-Config software via RS485 port
• Signal peak value detection
• Free configuration software S-Config
• 230 V ac power supply
• SRP-946 - 6-digit (13 mm) LED display
• Analogue output- active or passive
• 0/4-20 mA, 0/1-5 V, 0/2-10 V, 0-60/75/100/150 mV inputs
• 4 Relay outputs
• Wide range of characteristic curves- linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks
• RS485/Modbus RTU communication port
• Configuration with local keyboard or free S-Config software via RS485 port
• Signal peak value detection
• Free configuration software S-Config
• 230 V ac power supply
Simex Multi function Meters
規格
Attribute | Value |
---|---|
Properties Measured | Current, Voltage |
Display Type | LED |
Cutout Height | 43mm |
Cutout Width | 90.5mm |
Depth | 102mm |
Number of Digits | 4 |
Digit Height | 13 mm, 20 mm |
Minimum Temperature | 0°C |
Maximum Temperature | +50°C |
Measurement Range | 0 → 10 V, 0 → 150 mV, 0 → 20 mA |
Meter Type | Digital |
Approvals | CE |
Minimum Measurement | 0 mA, 0 mV, 0 V |
