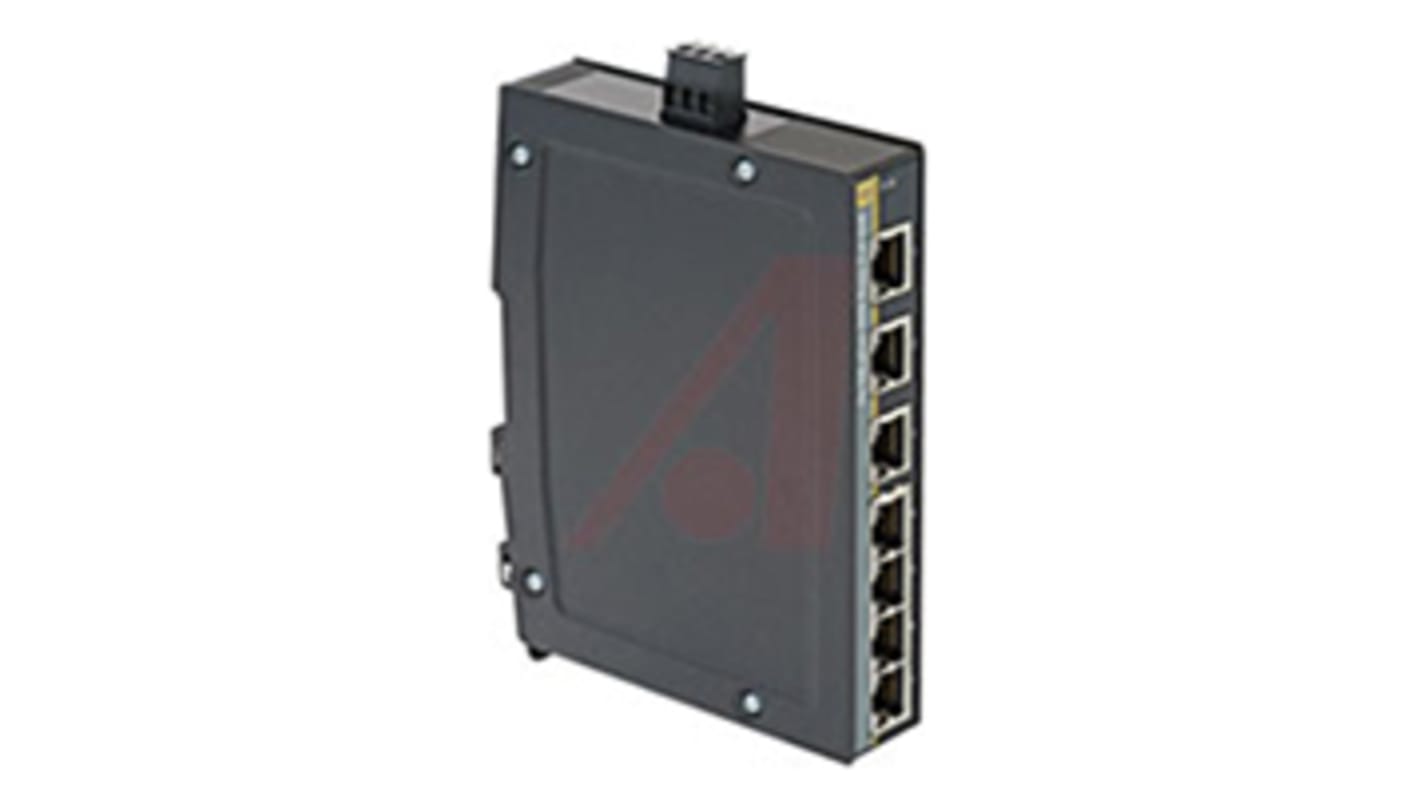

HARTING Ha-VIS eCon 3000 Series DIN Rail Industrial Hub, 7, 10Mbps, 100 Mbps, 1000 Mbps Transmission, 24 V, 48 V dc
- RS庫存編號:
- 843-9166
- 製造零件編號:
- 24034070000
- 製造商:
- HARTING
小計（1 件）*
HK$5,975.20
訂單超過 HK$250.00 免費送貨
有庫存
- 2 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$5,975.20 |
* 參考價格
- RS庫存編號:
- 843-9166
- 製造零件編號:
- 24034070000
- 製造商:
- HARTING
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | HARTING | |
| Product Type | Industrial Hub | |
| Transmission Speed | 10, 100, 1000Mbps | |
| Transmission Length | 100m | |
| Nominal Supply Voltage | 24 V, 48 V dc | |
| Fibre Port Type | Expansion | |
| Mount Type | DIN Rail | |
| Series | Ha-VIS eCon 3000 | |
| For Use With | DIN Rail Control Cabinet, Ethernet Network | |
| Minimum Operating Temperature | -40°C | |
| Number of RJ-45 Ports | 7 | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | UL, FCC, CE, CSA | |
| Weight | 595.5g | |
| Depth | 114.2mm | |
| Height | 164.4mm | |
| Width | 25mm | |
| Switch Type | Unmanaged | |
| Number of Ports | 7 | |
| Compatible USB Cable Version | No | |
| Protocol Type | Ethernet 10/100 Mbps | |
| 選取全部 | ||
|---|---|---|
品牌 HARTING | ||
Product Type Industrial Hub | ||
Transmission Speed 10, 100, 1000Mbps | ||
Transmission Length 100m | ||
Nominal Supply Voltage 24 V, 48 V dc | ||
Fibre Port Type Expansion | ||
Mount Type DIN Rail | ||
Series Ha-VIS eCon 3000 | ||
For Use With DIN Rail Control Cabinet, Ethernet Network | ||
Minimum Operating Temperature -40°C | ||
Number of RJ-45 Ports 7 | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals UL, FCC, CE, CSA | ||
Weight 595.5g | ||
Depth 114.2mm | ||
Height 164.4mm | ||
Width 25mm | ||
Switch Type Unmanaged | ||
Number of Ports 7 | ||
Compatible USB Cable Version No | ||
Protocol Type Ethernet 10/100 Mbps | ||
- COO (Country of Origin):
- DE
Ha-VIS eCon 3000 Full Ethernet Basic
The Ha-VIS eCon 3000 Full Gigabit family of unmanaged Ethernet switches is equipped with up to 7 Gigabit Ethernet ports. It allows for cost-efficient and quick expansion and/or reconstruction of network infrastructures with high-bandwidth requirements.
The slender design of the switches enables a high packing density on the DIN Rail. The selection of switches includes various combinations of variants with RJ45 and fibre optic cables. Automatic detection of the transmission rate and the wiring of the twisted-pair data cable, allow for simple plug and play.
Features and Benefits
• Full Gigabit Ethernet non-blocking switch architecture according to IEEE802.3
• 2 to 7 Ethernet ports RJ45 and fibre optic ports
• Commercial temperature range 0°C to +55°C, industrial temperature range -40°C to +70°C
• Support of jumbo frame (10 kB)
• Wide range of power supply 24/48 V dc
• Surge protection and reverse polarity protection
• Minimum energy consumption due to energy-efficient Ethernet
• Optimised DIN Rail bracket
Applications
• Machinery & Robotics
• Automation
• Industrial network infrastructures
• Wind and solar energy
• Transportation
• Shipbuilding
