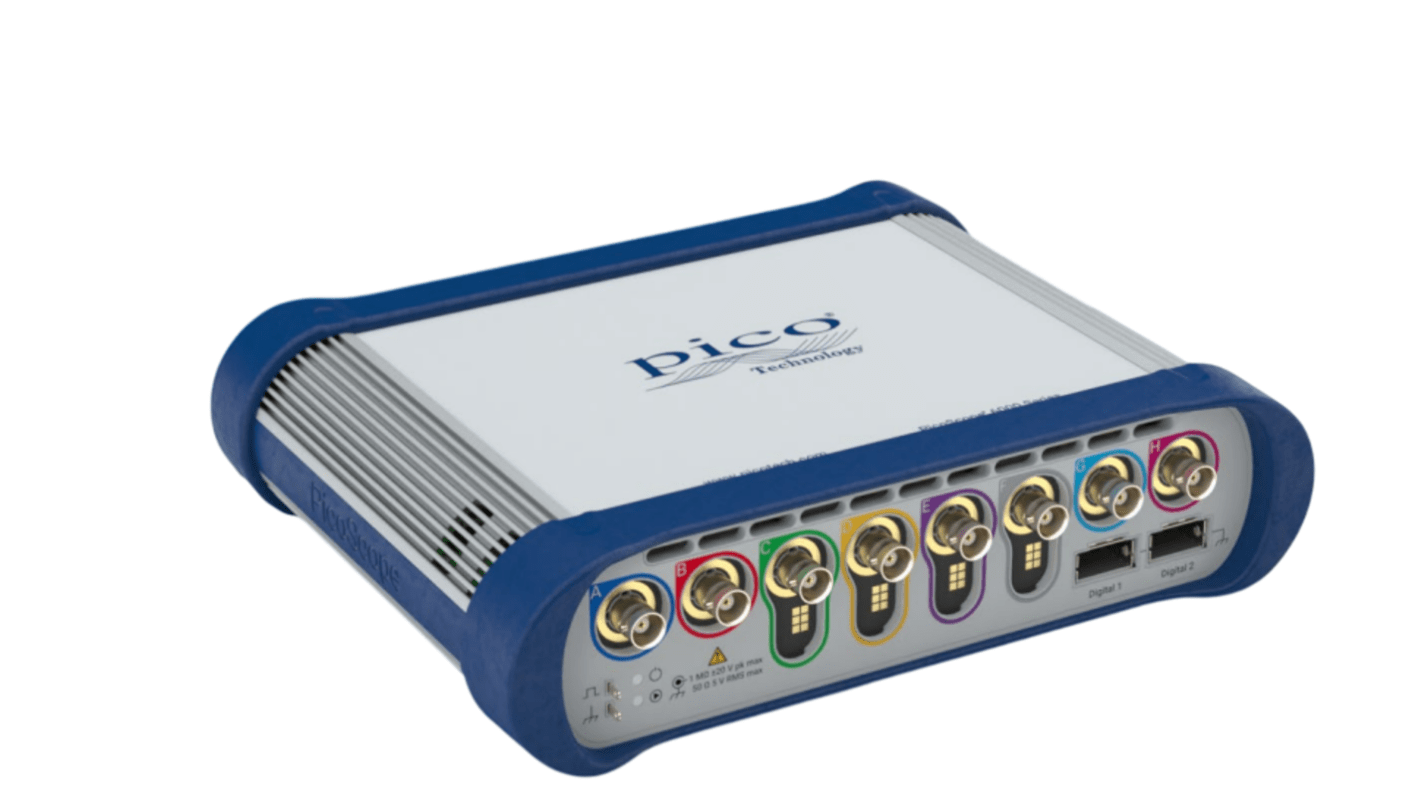

PicoScope 6000E Series, 3 GHz Mixed Signal Oscilloscope 16-Channel

RS庫存編號:: 303-234
製造零件編號:: PicoScope 6428E-D
製造商:: Pico Technology

PicoScope 6000E Series, 3 GHz Mixed Signal Oscilloscope 16-Channel

查看所有Oscilloscopes

小計（1 件）*

HK$217,682.10

訂單超過 HK$250.00 免費送貨

有庫存

2 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$217,682.10

* 參考價格

RS庫存編號:: 303-234
製造零件編號:: PicoScope 6428E-D
製造商:: Pico Technology

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Pico Technology
	Product Type	Oscilloscope
	Bandwidth	3GHz
	Number of Channels	16
	Model Number	PicoScope 6428E-D
	Oscilloscope Type	Mixed Signal
	Series	PicoScope 6000E
	Height	61.5mm
	Width	192mm
	Standards/Approvals	No
	Length	245mm
	Power Source	Adapter
	Minimum Time Base	500ps/div
	Maximum Vertical Sensitivity	100mV/div
	Rise Time	150ps
	Minimum Vertical Sensitivity	10mV/div
	Vertical Resolution	12 bit, 8 bit
	Maximum Time Base	5000s/div

	選取全部
	品牌 Pico Technology
	Product Type Oscilloscope
	Bandwidth 3GHz
	Number of Channels 16
	Model Number PicoScope 6428E-D
	Oscilloscope Type Mixed Signal
	Series PicoScope 6000E
	Height 61.5mm
	Width 192mm
	Standards/Approvals No
	Length 245mm
	Power Source Adapter
	Minimum Time Base 500ps/div
	Maximum Vertical Sensitivity 100mV/div
	Rise Time 150ps
	Minimum Vertical Sensitivity 10mV/div
	Vertical Resolution 12 bit, 8 bit
	Maximum Time Base 5000s/div

COO (Country of Origin):: GB

PicoScope 6000E Series Oscilloscope, 3GHz Bandwidth, 20 Channels - PicoScope 6428E-D

This oscilloscope is a mixed-signal instrument designed for Advanced signal capture and analysis via a USB interface. It is powered by an external adaptor and suits laboratory and field environments where high-bandwidth waveform inspection and multi-channel correlation are required. The product integrates both analogue and digital acquisition to support complex measurement tasks while conforming to standard environmental directives.

Features and Benefits:

• 3GHz bandwidth delivers high-frequency signal visibility
• 150ps rise time enables fast transient capture
• 12-bit vertical resolution improves amplitude detail
• 1ns/div to 5000s/div timebase spans Rapid to long-term events
• 10mV/div minimum sensitivity increases low-level signal detection

Applications

• Suitable for high-speed digital bus debugging
• Ideal for mixed-signal prototype validation
• Used for long-duration signal monitoring and logging
• Can be used for analogue amplitude characterisation
• Used with USB-connected test systems for data transfer

How many acquisition channels are available?

It provides twenty channels for simultaneous signal observation.

What vertical sensitivity range does it support?

Sensitivity ranges from 10mV/div up to 100mV/div for varying signal amplitudes.

What physical Interface is used for connection and data transfer?

A USB Interface is used for connectivity with host systems.

What are the device dimensions for rack or bench planning?

The unit measures 245mm length, 192mm width and 61.5mm height.

Which approvals ensure restricted-substance compliance?

It meets REACH, RoHS and WEEE directives.
