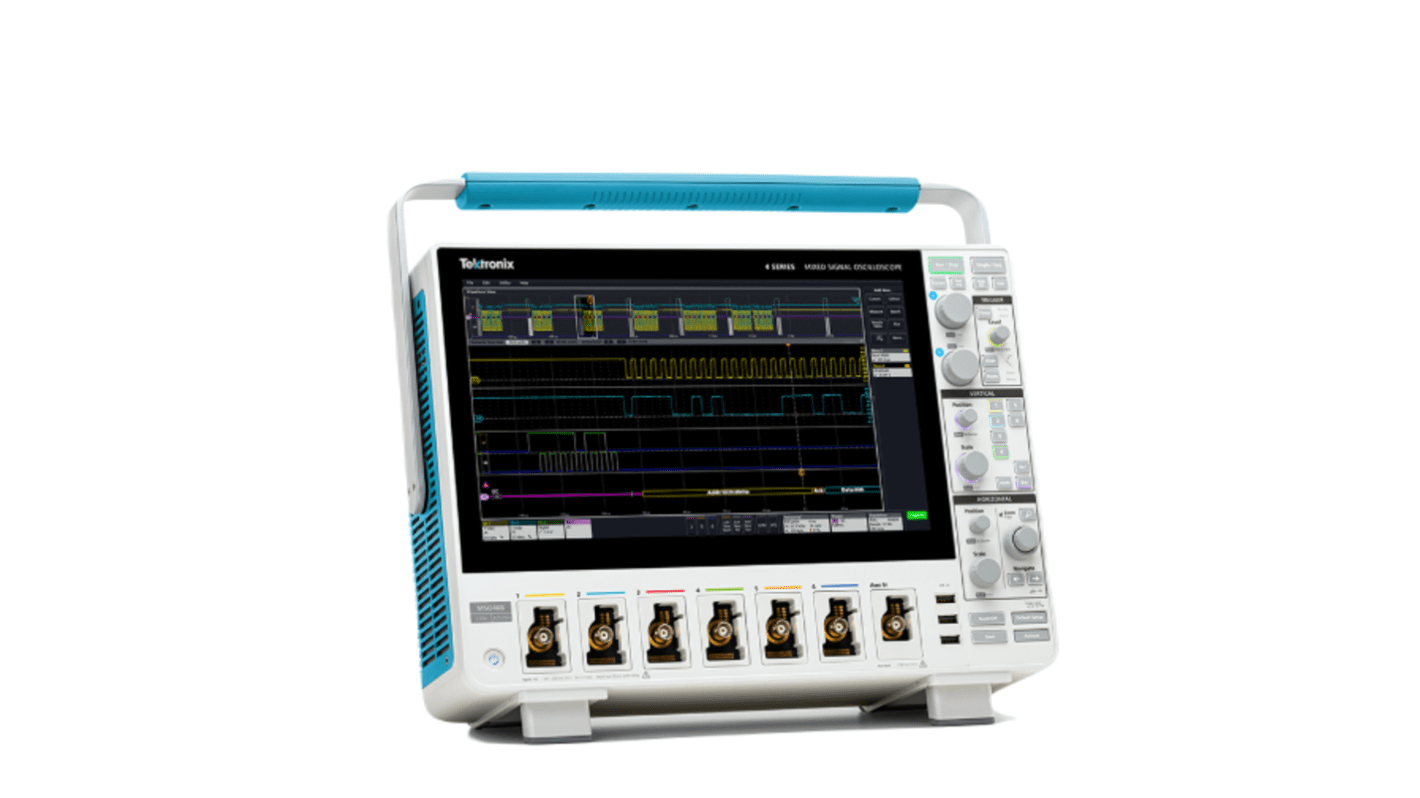

Tektronix MSO46B 4-BW Series, MSO46B, 1.5 GHz Mixed Signal Oscilloscope, 6 Channels
- RS庫存編號:
- 328-142
- 製造零件編號:
- MSO46B 4-BW 1500 MSO46BR3
- 製造商:
- Tektronix
暫時無法供應
我們無法確定此產品何時有貨,RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 328-142
- 製造零件編號:
- MSO46B 4-BW 1500 MSO46BR3
- 製造商:
- Tektronix
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Tektronix | |
| Product Type | Oscilloscope | |
| Bandwidth | 1.5GHz | |
| Number of Channels | 6 | |
| Model Number | MSO46B | |
| Oscilloscope Type | Mixed Signal | |
| Oscilloscope Form | Mixed Signal | |
| Memory Depth | 62.5Mpts | |
| Screen Size | 13.4 in | |
| Series | MSO46B 4-BW | |
| Standards/Approvals | No | |
| Height | 287.1mm | |
| Width | 405mm | |
| Depth | 155mm | |
| Minimum Time Base | 200ps/div | |
| Vertical Resolution | 16 bit | |
| Waveform Refresh Rate | 500000wfms/s | |
| Maximum Vertical Sensitivity | 10V/div | |
| Display Type | Capacitive Touch Display | |
| Maximum Time Base | 1000s/div | |
| 選取全部 | ||
|---|---|---|
品牌 Tektronix | ||
Product Type Oscilloscope | ||
Bandwidth 1.5GHz | ||
Number of Channels 6 | ||
Model Number MSO46B | ||
Oscilloscope Type Mixed Signal | ||
Oscilloscope Form Mixed Signal | ||
Memory Depth 62.5Mpts | ||
Screen Size 13.4 in | ||
Series MSO46B 4-BW | ||
Standards/Approvals No | ||
Height 287.1mm | ||
Width 405mm | ||
Depth 155mm | ||
Minimum Time Base 200ps/div | ||
Vertical Resolution 16 bit | ||
Waveform Refresh Rate 500000wfms/s | ||
Maximum Vertical Sensitivity 10V/div | ||
Display Type Capacitive Touch Display | ||
Maximum Time Base 1000s/div | ||
- COO (Country of Origin):
- CN
The Tektronix 4 Series Mixed Signal Oscilloscope sets a new standard for performance, analysis capabilities, and overall user experience in bench oscilloscopes. It is Ideal for debugging and validating embedded systems and power converters. The second generation of this instrument incorporates a new processing platform, more than doubling its responsiveness and significantly accelerating measurements and data transfers with full support for remote operation and control. Its high resolution 12 bit sampling ensures precise measurements on a higher contrast 13.3 inch HD display.
6 FlexChannel inputs
Waveform capture rate more than 500000 waveforms/s
31.25 Mpoints standard Record length
Real time 6.25 GS/s sample rate
Synchronized and multi channel spectrum analysis
